Description

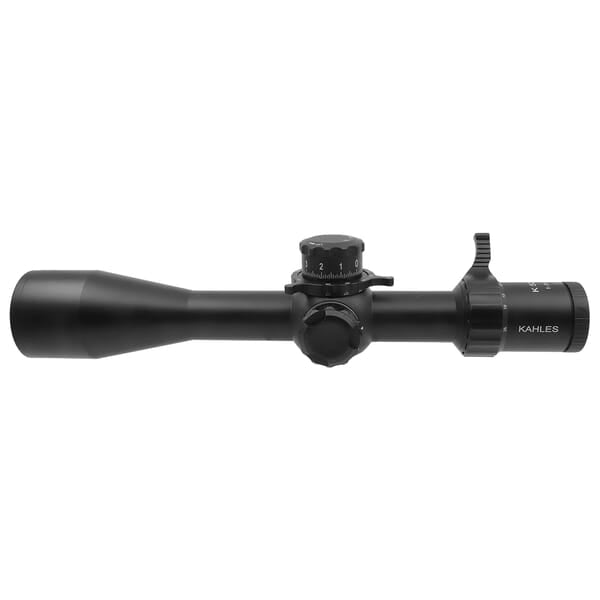

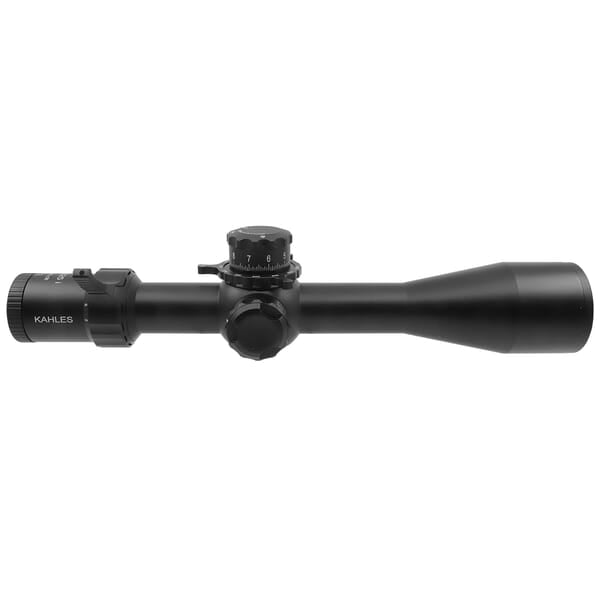

The Kahles K525i 5-25x56mm DLR CCW SKMR Riflescope 10683 is a high-performance optic designed for dynamic long-range shooting competitions. This riflescope combines maximum optical performance with precision engineering, featuring a 5-25x magnification range and a 56mm objective lens. The first focal plane reticle ensures that the reticle size changes with magnification, maintaining consistent spacing and coverage. The riflescope is equipped with a counter-clockwise (CCW) adjustment direction and a left-side windage turret, making it ideal for both right and left-handed shooters.
The Kahles K525i 5-25x56mm DLR CCW SKMR Riflescope 10683 is optimized for fast action, with an extended field of view and easy-to-read clicks. The extra-large turret lettering and the innovative TWIST GUARD windage system prevent accidental adjustments, ensuring reliability under pressure. The parallax spinner and extra-long throw lever allow for quick and precise adjustments, making it a versatile tool for competitive shooters.
Ideal for dynamic long-range shooting, the Kahles K525i 5-25x56mm DLR CCW SKMR Riflescope 10683 offers unparalleled handling and ergonomics. The illuminated SKMR reticle in the first focal plane provides clear visibility in various lighting conditions. With a robust 34mm main tube and a zero-stop feature, this riflescope is built to withstand the rigors of competitive shooting while delivering exceptional performance.
Ideal For:
- Dynamic Long Range Competitions
- Tactical Shooting
- Precision Target Shooting
- Hunting in Variable Light Conditions
Features:
- MAXIMUM OPTICAL PERFORMANCE: Delivers a high-contrast, high-definition image with an extended field of view for quick target acquisition.
- PRECISE ADJUSTMENTS: Features 100 clicks per rotation with clearly defined clicks for reliable repeat accuracy.

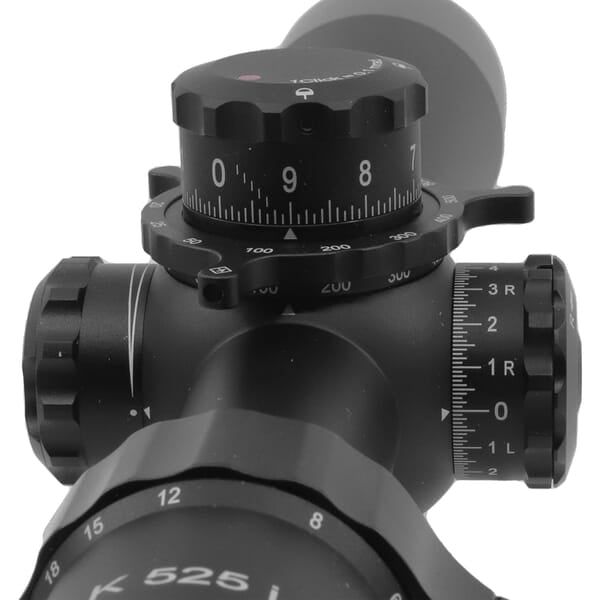

- EASY TO READ: Extra-large turret lettering allows for fast and easy reading of adjustments, even in high-pressure situations.
- TWIST GUARD WINDAGE: Innovative system prevents accidental movement of the windage, ensuring consistent accuracy.
- QUICK ADJUSTMENTS: Equipped with an extra-long throw lever and parallax spinner for rapid and precise adjustments.

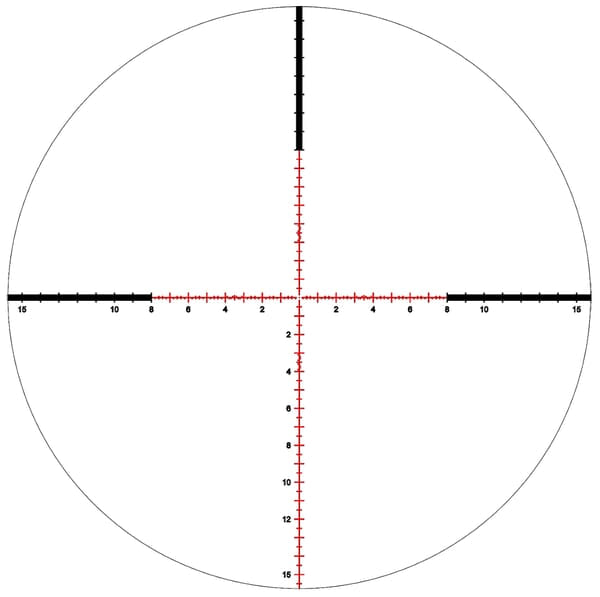

- ILLUMINATED RETICLE: The SKMR reticle in the first focal plane provides clear visibility in various lighting conditions.
- ROBUST CONSTRUCTION: Built with a 34mm main tube and zero-stop feature, ensuring durability and reliability.
- VERSATILE HANDLING: Ergonomically designed for both right and left-handed shooters, with all controls easily accessible.
Specifications
| Feature | Specification |
|---|---|
| Magnification | 5 - 25x |
| Objective Lens Diameter | 56 mm |
| Eye Relief | 3.74 in (95 mm) |
| Field of View | 23.2 - 4.9 ft/100 yds (7.7 - 1.6 m/100 m) |
| Diopter Compensation | +2 / -3.5 dpt |
| Twilight Factor (DIN 58388) | 16.7 - 37.4 |
| Impact Correction per Click | 0.1 MRAD |
| Adjustment Range (E/W) | 104.4 / 46.8 in/100 yds (29.0 / 13.0 MILS) |
| Parallax Adjustment | 20 m to ∞ |
| Tube Diameter | 34 mm (1.34 in) |
| Length | 14.8 in (377 mm) |
| Weight | 35.1 oz (970 g) |
| Focal Plane | 1st |
| Illuminated | Yes |
| Warranty | 10 years (2 years electronic) |
What's Included:
- Kahles K525i 5-25x56mm DLR CCW SKMR Riflescope
- Extra-long Throw Lever
- Parallax Spinner
- User Manual
- Warranty Card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
