Description

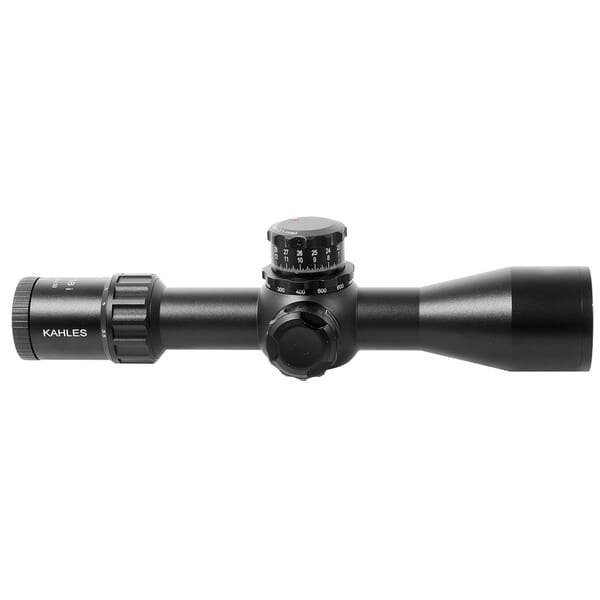

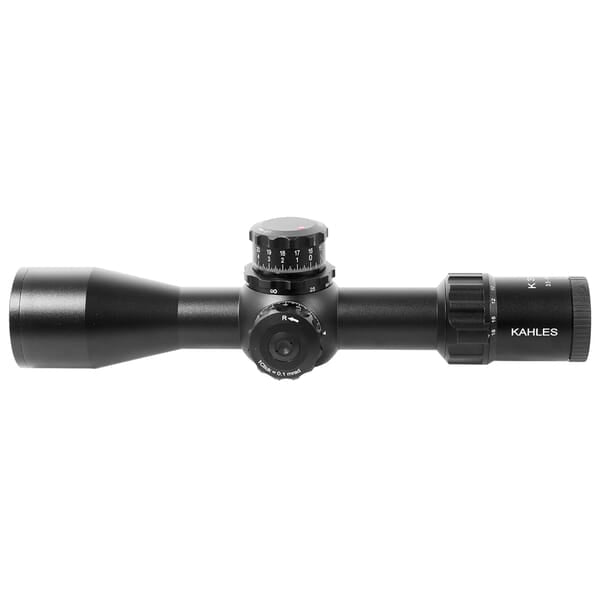

The Kahles K318i 3.5-18x50 CCW SKMR3 w-left Riflescope 10657 is a high-performance optical instrument designed for precision shooting and long-range accuracy. This ultrashort riflescope combines optical and mechanical perfection in a compact design, offering a wide magnification range from 3.5x to 18x. Its 50mm objective lens provides excellent light gathering capabilities, ensuring bright and clear images even in low-light conditions.

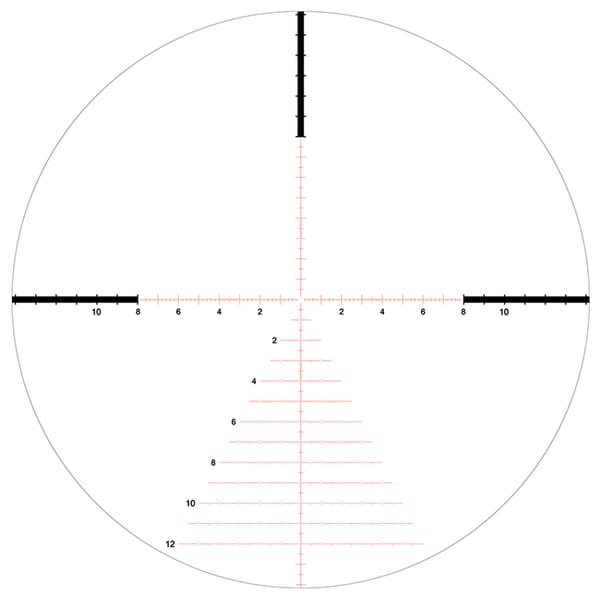

Featuring a first focal plane SKMR3 reticle, this riflescope maintains consistent subtensions throughout the entire magnification range. The counter-clockwise (CCW) turret adjustment and left-side windage placement cater to the ergonomic preferences of right-handed shooters. The innovative TWIST GUARD windage system prevents accidental adjustments while allowing quick and easy access when needed.
The Kahles K318i boasts exceptional repeat accuracy and a precise, clearly defined click mechanism. Its parallax adjustment wheel, integrated into the elevation turret, allows for quick and easy adjustments from 25 meters to infinity. With its durable construction and reliable performance, this riflescope is built to withstand the rigors of demanding shooting environments.
Ideal For: Long-range precision shooting, tactical applications, competitive shooting, and hunting in various light conditions.
Features:
- OPTICAL EXCELLENCE: High-contrast images and a wide field of view provide superior target acquisition and identification capabilities across the entire magnification range.
- PRECISION ADJUSTMENTS: Counter-clockwise (CCW) turrets with clearly defined clicks ensure accurate and repeatable adjustments for elevation and windage.
- ERGONOMIC DESIGN: Left-side windage placement and the innovative TWIST GUARD system offer intuitive operation and prevent accidental adjustments during use.
- VERSATILE MAGNIFICATION: The 3.5-18x zoom range allows for both wide-area scanning and precise long-range shooting, adapting to various shooting scenarios.
- ALL-WEATHER PERFORMANCE: Rugged construction and high-quality materials ensure reliable operation in challenging environmental conditions.
- ILLUMINATED RETICLE: The SKMR3 reticle in the first focal plane provides consistent subtensions and features adjustable illumination for low-light shooting.
- PARALLAX ADJUSTMENT: Integrated parallax wheel in the elevation turret allows for quick and precise adjustments from 25 meters to infinity.
- COMPACT PROFILE: Ultrashort design minimizes overall length and weight, improving handling and portability without compromising optical performance.
Specifications:
| Feature | Specification |
|---|---|
| Magnification | 3.5-18x |
| Objective Lens Diameter | 50mm |
| Tube Diameter | 34mm |
| Reticle | SKMR3 (First Focal Plane) |
| Illumination | Yes |
| Turret Adjustment | Counter-clockwise (CCW) |
| Windage Placement | Left side |
| Eye Relief | 3.6 inches (92mm) |
| Field of View @ 100 yards | 27.8 - 5.5 ft |
| Length | 12.3 inches (313mm) |
| Weight | 32.6 oz (940g) |
| Parallax Adjustment | 25m to infinity |
| Warranty | 10 years |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
