Description

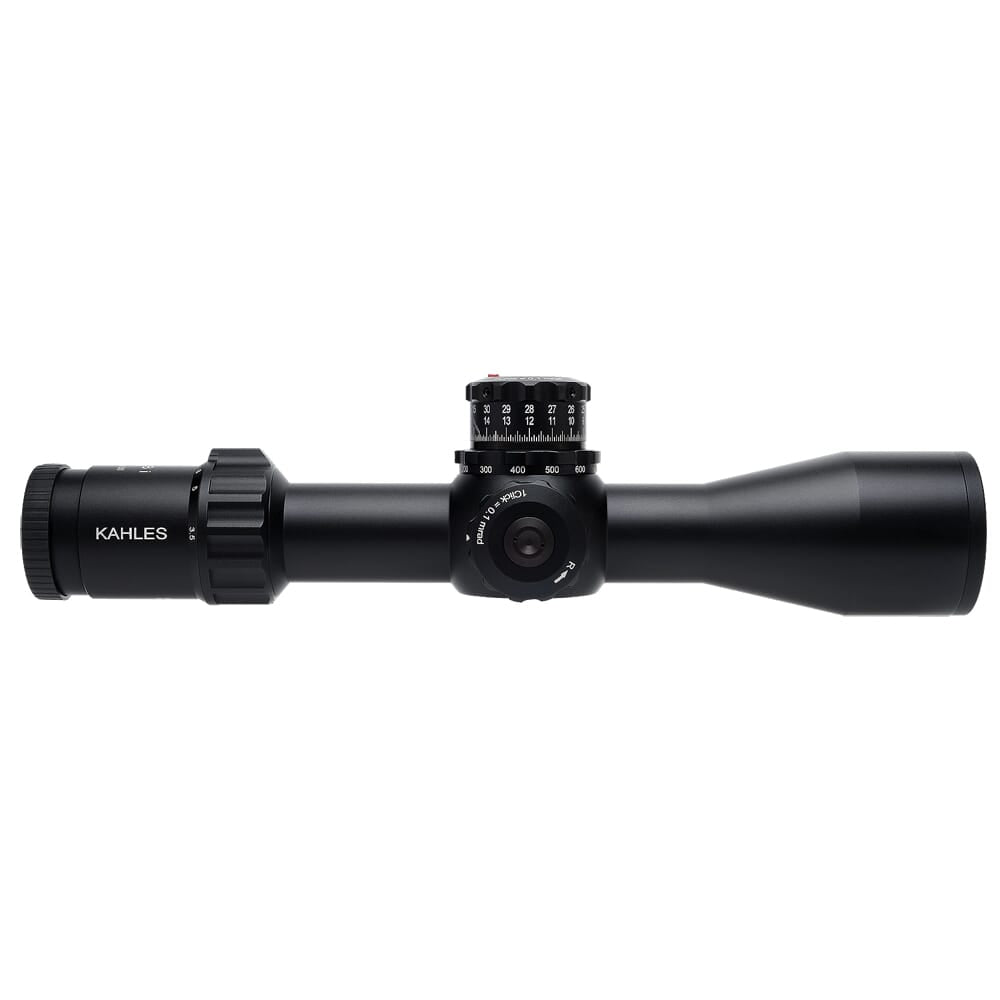

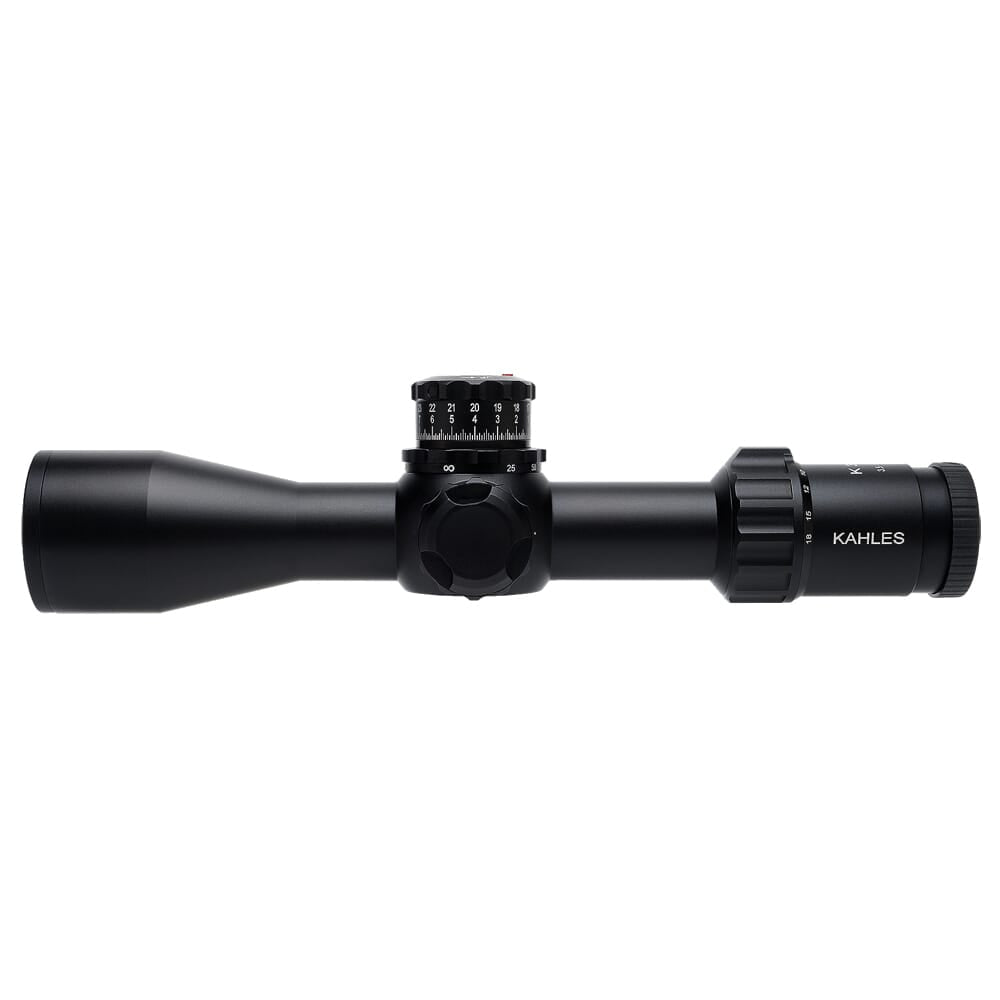

The Kahles K318i 3.5-18x50 CCW MOAK w-right Riflescope 10658 is a masterpiece of optical engineering, offering exceptional performance in a compact package. This ultrashort and lightweight riflescope features a versatile 3.5-18x magnification range, making it suitable for both close and medium-range shooting. The 50mm objective lens ensures excellent light transmission, providing bright and clear images even in low-light conditions.

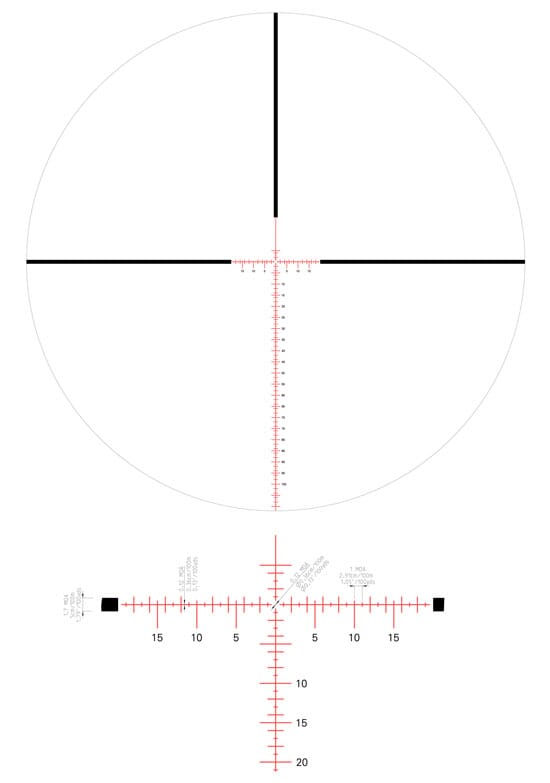

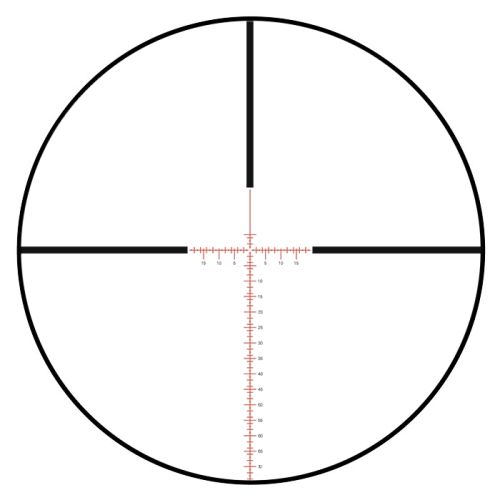

Equipped with the MOAK (Modified Old Army Kahles) reticle in the first focal plane, this scope offers precise aiming points that remain proportional throughout the entire magnification range. The counter-clockwise (CCW) turret adjustment and right-side windage placement cater to the preferences of many shooters, enhancing ease of use and ergonomics.

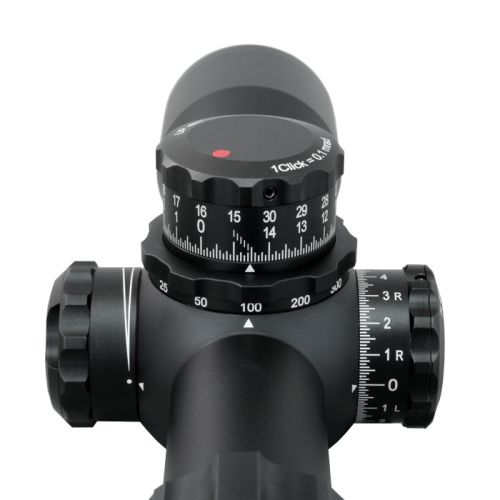

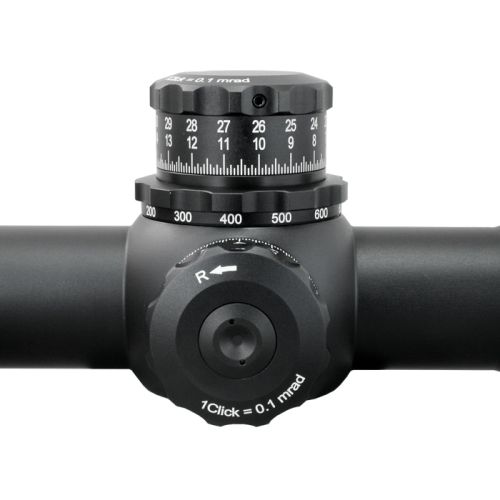

The Kahles K318i 3.5-18x50 incorporates innovative features such as the patented TWIST GUARD windage, which prevents accidental adjustments, and the parallax wheel integrated into the elevation turret for improved handling. With its 34mm main tube and robust construction, this riflescope is built to withstand the rigors of demanding shooting environments.
Ideal For: Long-range precision shooters, competitive marksmen, tactical operators, and hunters seeking a high-performance optic for various shooting disciplines and environments.
Features:
- PRECISION OPTICS: Superior glass quality and coatings deliver exceptional clarity, contrast, and light transmission for accurate target acquisition in various lighting conditions.
- VERSATILE MAGNIFICATION: 3.5-18x zoom range offers flexibility for both close-quarter engagements and long-range precision shooting, adapting to diverse shooting scenarios.
- FIRST FOCAL PLANE RETICLE: MOAK reticle in the first focal plane maintains consistent subtensions across all magnifications, enabling precise holdovers and rangefinding at any zoom level.
- INNOVATIVE DESIGN: Patented TWIST GUARD windage prevents accidental adjustments, while the integrated parallax wheel enhances ergonomics and ease of use for both right and left-handed shooters.
- DURABLE CONSTRUCTION: Rugged 34mm main tube and high-quality materials ensure reliability and performance in challenging environments and extreme weather conditions.
- COMPACT AND LIGHTWEIGHT: Ultrashort 12.3" length and 32.6 oz weight minimize bulk on your firearm, improving balance and maneuverability in the field or on the range.
- PRECISE ADJUSTMENTS: Clear and tactile ¼ MOA click adjustments with a generous adjustment range allow for accurate and repeatable zeroing and shot corrections.
- ILLUMINATED RETICLE: Battery-powered illumination enhances reticle visibility in low-light situations, extending usable shooting hours and improving target acquisition in challenging conditions.
Specifications:
| Feature | Specification |
|---|---|
| Magnification | 3.5-18x |
| Objective Lens Diameter | 50mm |
| Tube Diameter | 34mm |
| Length | 12.3" (313mm) |
| Weight | 32.6 oz (940g) |
| Eye Relief | 3.6" (92mm) |
| Field of View @ 100 yards | 27.8 ft @ 3.5x - 5.5 ft @ 18x |
| Adjustment Per Click | ¼ MOA |
| Elevation Adjustment Range | 72 MOA |
| Windage Adjustment Range | 69 MOA |
| Parallax Adjustment | 25m to infinity |
| Illumination | Yes |
| Focal Plane | First |
| Reticle | MOAK |
What's Included:
- Kahles K318i 3.5-18x50 CCW MOAK w-right Riflescope
- Lens covers
- Battery for illumination
- User manual
- Warranty card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
