Description
The Holosun HE507K-GR-X2 1x Green Dot Reflex Sight is a compact and versatile optic designed precisely for modern sport shooters and law enforcement personnel. Engineered to aid rapid target acquisition, the HE507K-GR-X2 is ideal for concealed carry applications with its sleek and unobstructive form factor. Featuring Holosun's Super Green LED technology, this reflex sight boasts a battery life of up to 50,000 hours, ensuring reliability and performance when you need it most.

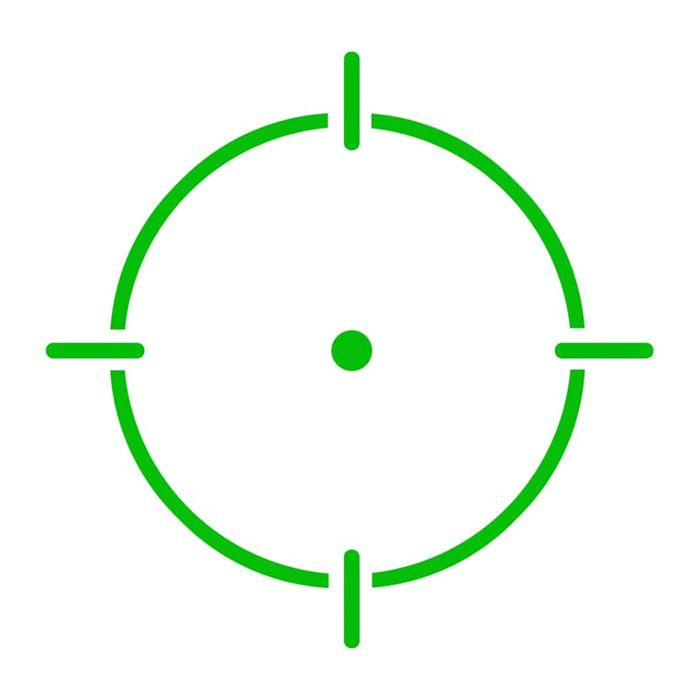

This model introduces the Lock Mode from Holosun's law enforcement series, preventing inadvertent setting changes. Complementing the Lock Mode, the redesigned lower-profile buttons minimize accidental engagement without compromising accessibility. With a Parallax-free lens and unlimited eye relief, shooters can enjoy a clear view of their target at any angle. The Multi-Reticle System (MRS) allows users to select between a 2 MOA dot, a 32 MOA circle, or a circle-dot reticle for adaptability in various shooting scenarios.
The Holosun HE507K-GR-X2 sets itself apart with innovative Shake Awake technology that activates the reticle upon movement and Solar Failsafe, which uses ambient light to power the sight, conserving battery life. It is constructed to withstand the rigors of daily use, the HE507K-GR-X2 is a durable and reliable choice for shooters looking to improve their shooting efficiency and precision.
Features
- ADVANCED RETICLE SYSTEM: Green Multi-Reticle System (MRS) lets you choose from Circle Dot, 2 MOA Dot, or 32 MOA Circle, catering to various scenarios and preferences.
- EXTENDED BATTERY LIFE: Powered by a CR1632 battery, it offers up to 50,000 hours of operation, with Solar Failsafe for additional endurance.
- BRIGHTNESS VARIETY: Features 12 brightness settings, with 10 designed for daylight (DL) and 2 that are night vision (NV) compatible, ensuring visibility in all light conditions.
- SHAKE AWAKE FUNCTION: Equips Shake Awake technology that powers up the sight at the slightest movement, preserving battery when not in use.
- PARALLAX FREE OPTICS: Allows for quick target acquisition with parallax-free viewing and unlimited eye relief, keeping you locked on your target.
- LOCK MODE SECURITY: Integrates Lock Mode to secure settings, preventing unintentional changes during high-action situations.
- USER-FRIENDLINESS: Includes a convenient tray battery compartment for easy replacements without sight removal, enhancing maintenance simplicity.
- DURABILITY AND DESIGN: Crafted with a rugged black finish, it sustains heavy use, and its dimensions (1.6 x 0.98 x 0.95 inches) offer a low profile on your firearm.
Specifications
| Model | 507 |
|---|---|
| Footprint | Holosun K Series |
| Weight | 1 oz |
| Length | 1.6 inches |
| Mount | Not Included |
| Magnification Range | 1x |
| Reticle Size | 2 MOA & 32 MOA |
| Reticle Color | Green |
| Parallax Adjustment | Free |
| Eye Relief | Unlimited |
| Adjustment Graduation | 1 MOA |
| Elevation Adjustment | ±30 MOA |
| Windage Adjustment | ±30 MOA |
| Package Includes | Multi Tool, User Manual, Lens Cloth |
| Finish | Black |
| Dimensions | 1.6 x 0.98 x 0.95 inches |
| Night Vision Compatible | Yes |
| Brightness Settings | 2 NVD, 10 DL |
| Battery | CR1632 |
| Battery Life | Up to 50,000 Hours |
| Item Condition | New |
| UPC | 810047071389 |
| MPN | HE507K-GR-X2 |
WHAT'S IN THE BOX?
- Holosun HE507K-GR X2
- CR1632 Battery
- User Manual
- Lens Cloth
- T10 L Key
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
