Description

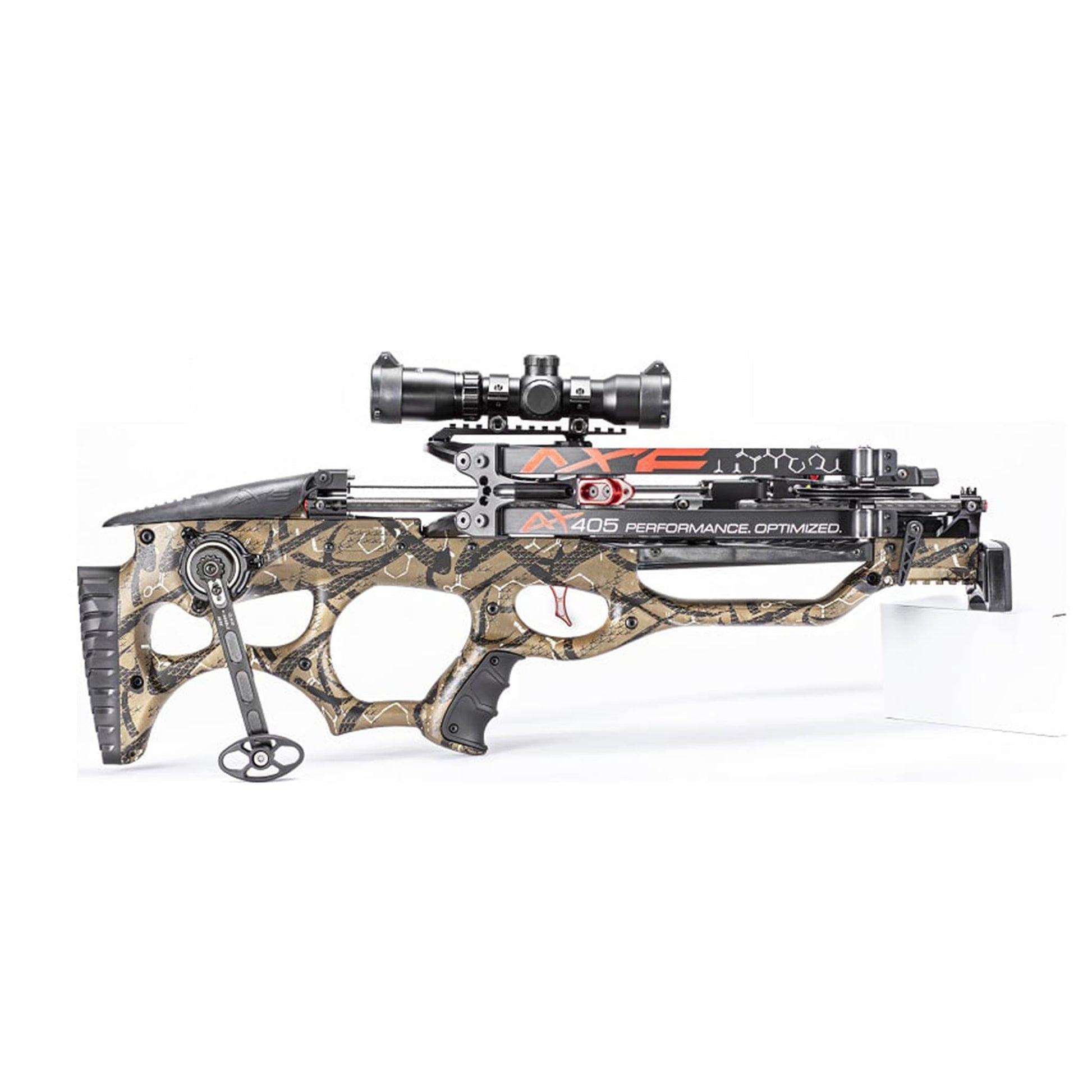

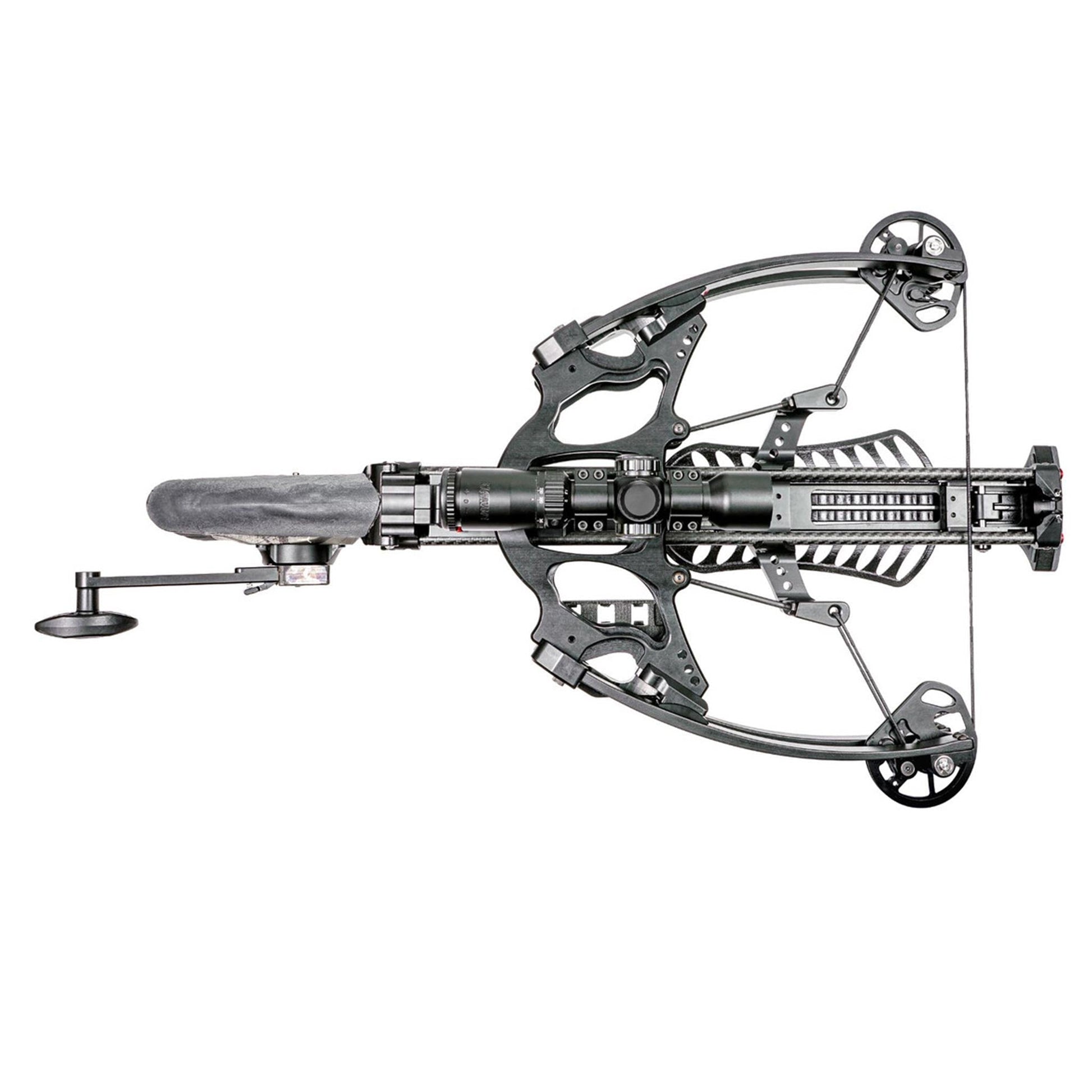

Compact by design, yet colossal in its features, the Axe Crossbows AX405 is a high-performance crossbow optimized for precision and efficiency. With a compact size of 27.75 inches and a maneuverable 10-inch axle-to-axle (cocked) length, this crossbow is built for exceptional performance. The weight distribution is centered over the shooter's hand through a balanced shoot-through stock and riser design, along with a reverse limb system.

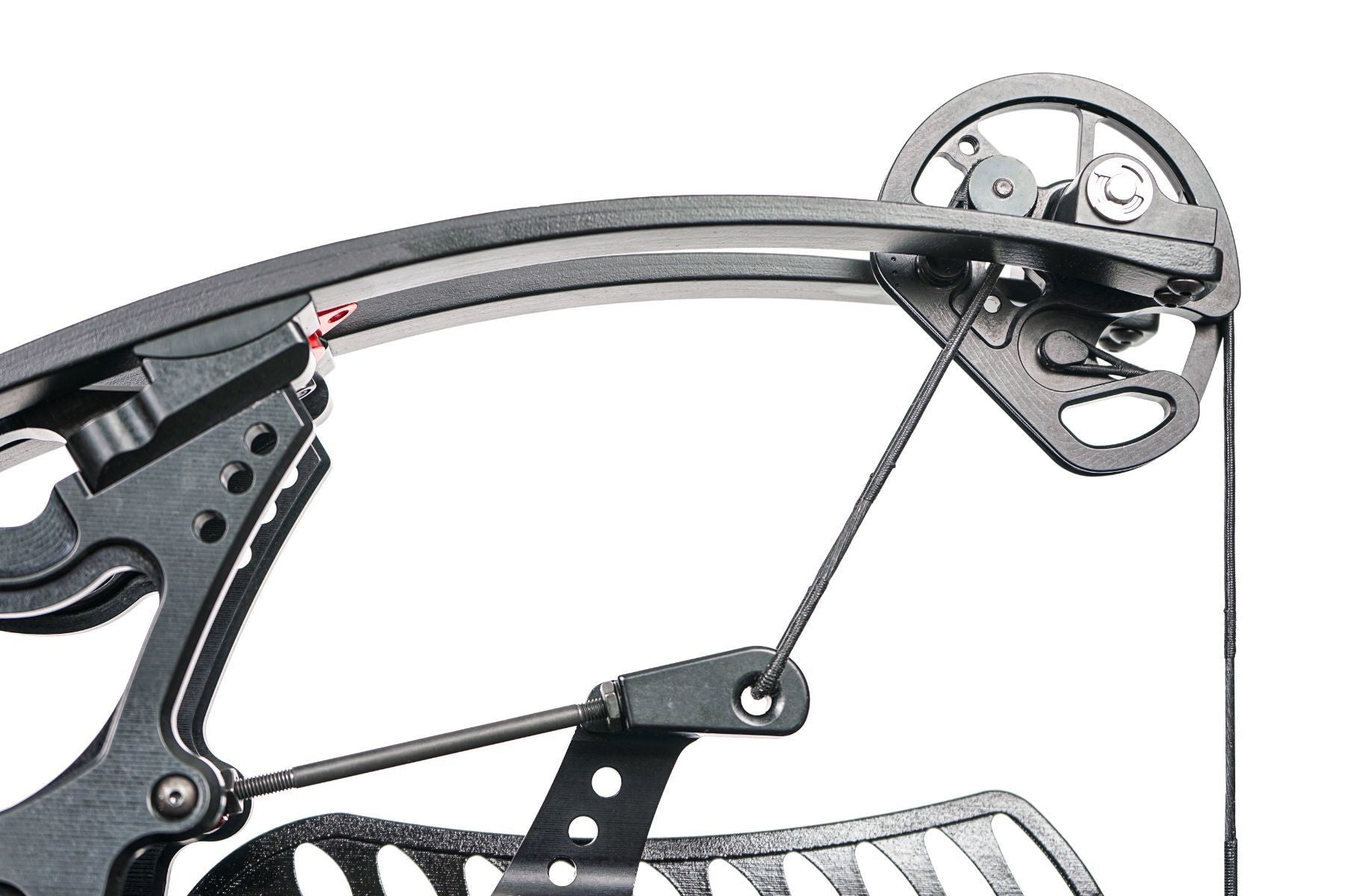

The AX405 is equipped with 210-pound split limbs, delivering bolt speeds exceeding 400 feet-per-second with a power stroke of just 13 inches. Its proprietary cam system is connected by parallel cables, eliminating cam-lean and limb torque. Additionally, an exclusive cable brace engages the riser, limiting flex away from the center of the crossbow. These features ensure that the string moves along the same plane throughout the entire power stroke, enhancing accuracy and efficiency.

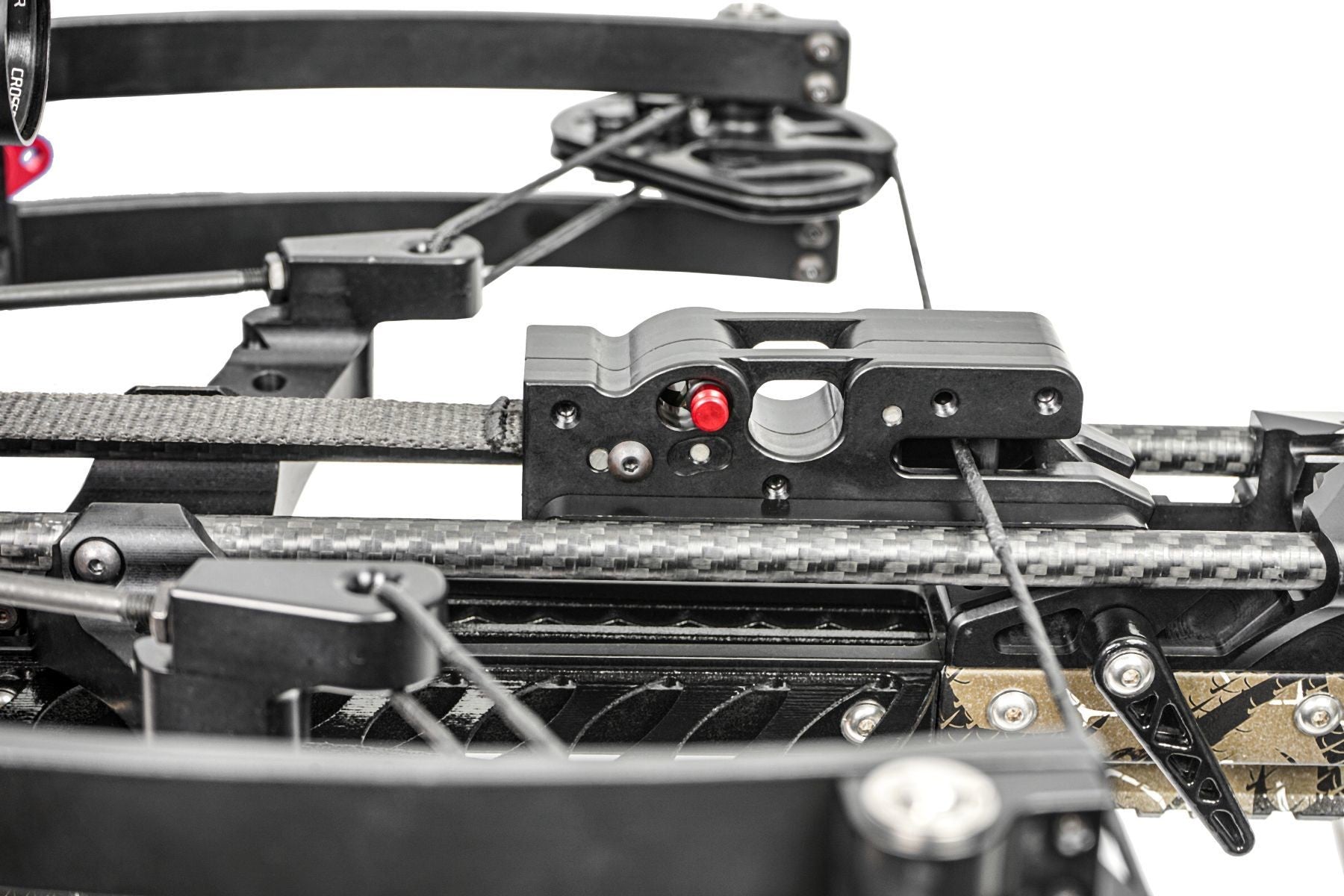

Unlike conventional crossbow designs with one-piece aluminum rails, the AX405's stock eliminates the rail and incorporates dual carbon guide rods along its length. This, combined with the shoot-through riser and roller rest on the bow's front end, creates a free-floating arrow system that minimizes contact, friction, and torque along the arrow's path. The result is increased efficiency, accuracy, and speed output.
The package includes a multi-range reticle scope with markings for 20-100 yards in 10-yard increments. The scope features red/green illumination, enabling clear reticle visibility in various lighting conditions. With a wide field of view and shock and fog-proof capabilities, the scope ensures optimal aiming performance.
Features:
- Adjustable Butt Stock for personalized comfort and shooting experience.
- Adjustable Cheek Comb for improved alignment and consistent shooting.
- Shoot Through Riser design enhances accuracy and stability.
- Balanced Center of Mass over the trigger and hand grip for steady shooting.
- Integrated Crank with Cock/De-Cock Feature for easy handling (adjustable handle position).
- Trigger with a 3.7 lbs. pull weight and zero creep for precise shooting.
- Safest Trigger on the Market automatically resets to the safe position after each shot.
- Full Capture, Tunable Roller Rest for enhanced arrow control and accuracy.
- 85% Cam Efficiency, the best in the market, for optimal power and performance.
- Ergonomic Chassis Design ensures a comfortable and secure grip.
- Integrally Mounted 3-Arrow Quiver for convenient storage and quick access.
- Multi-Range Illuminated Reticle Scope with red/green illumination for clear targeting.
- Adjustable Foot Peg for stable shooting positions and customizable fit.
- Includes (3) AXE micro diameter bolts with 100-grain practice tips.
Technical Specifications:
| Technical Specifications | |
|---|---|
| Archery Cocking Device | Crank |
| Archery Color | Black |
| Archery Item Type | Crossbow |
| Archery Mass Weight | 9.7 lbs (without scope) |
| Archery Power Stroke | 13" |
| Archery Quiver Capacity | 3-Arrow |
| Archery Quiver Included | Yes |
| Archery Velocity | Up to 405 FPS |
| Brand | Feradyne Outdoors |
| CA PROP 65 | Yes |
| Length | 32" (without foot stirrup) |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
