Description

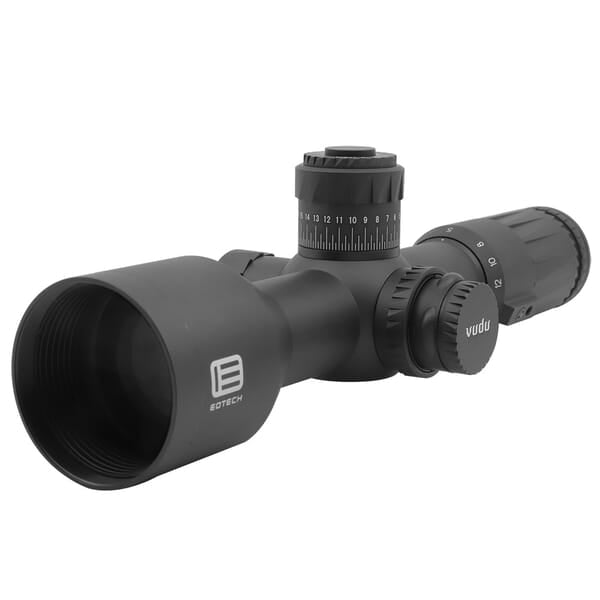

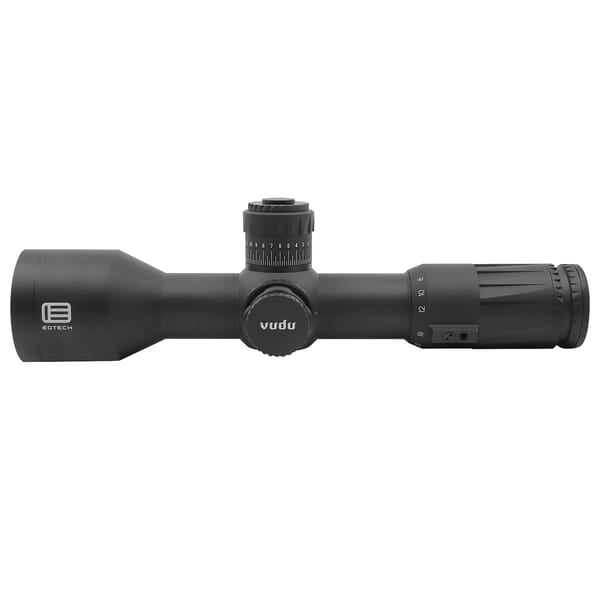

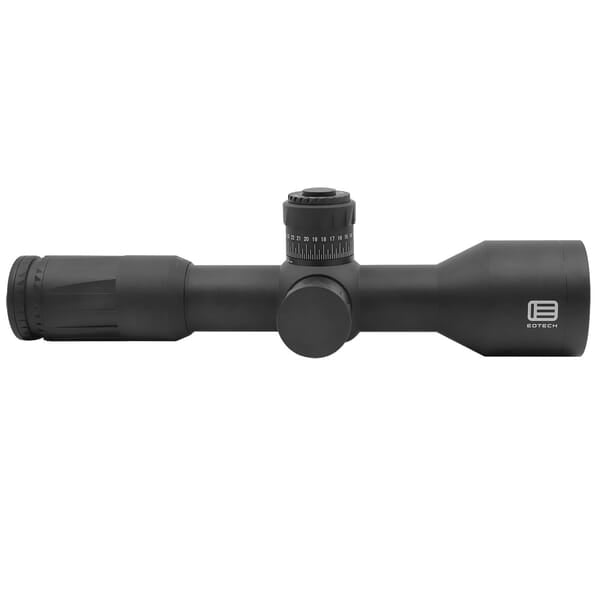

The EOTech Vudu 5-25x50mm FFP MD4 Riflescope VDU5-25FFMD4 is a high-performance optic designed for precision long-range shooting. With its compact 11.2-inch length, this riflescope is one of the shortest first focal plane scopes available, making it ideal for short platform rifles. The robust construction features aircraft-grade aluminum, ensuring durability and reliability in the harshest conditions. The MD4 reticle provides precise holdovers and windage adjustments, making it an excellent choice for competitive shooters and tactical applications.
The EOTech Vudu 5-25x50mm FFP MD4 Riflescope VDU5-25FFMD4 boasts a 34mm tube diameter, offering a wide range of elevation adjustments. The push/pull locking elevation turret and EZ Chek Zero Stop feature allow for quick and accurate adjustments. The XC™ high-density, low dispersion glass with anti-reflective coatings ensures exceptional light transmission and edge-to-edge clarity. This riflescope is also nitrogen-purged for fog resistance and O-ring sealed for water resistance, ensuring reliable performance in any environment.
Ideal for precision shooters, the EOTech Vudu 5-25x50mm FFP MD4 Riflescope VDU5-25FFMD4 is equipped with a versatile magnification range of 5-25x, making it suitable for both mid-range and long-range engagements. The scope's compact design allows for the attachment of night vision or thermal devices, enhancing its versatility. Whether used in competitive shooting, tactical operations, or hunting, this riflescope delivers unparalleled performance and reliability.
Ideal For:
- Competitive shooting
- Tactical operations
- Long-range hunting
- Precision shooting
Features:
- COMPACT DESIGN: At 11.2 inches, it is one of the shortest first focal plane scopes, ideal for short platform rifles.
- DURABLE CONSTRUCTION: Made from aircraft-grade aluminum with an anodized finish for extreme durability.
- PRECISE ADJUSTMENTS: Push/pull locking elevation turret and EZ Chek Zero Stop for quick and accurate adjustments.
- HIGH-QUALITY GLASS: XC™ high-density, low dispersion glass with anti-reflective coatings for excellent light transmission.
- FOG RESISTANT: Nitrogen-purged to prevent internal fogging over a wide temperature range.
- WATER RESISTANT: O-ring sealed to keep out moisture and dust, ensuring reliable performance in harsh environments.
- VERSATILE MAGNIFICATION: 5-25x magnification range suitable for mid-range to long-range engagements.

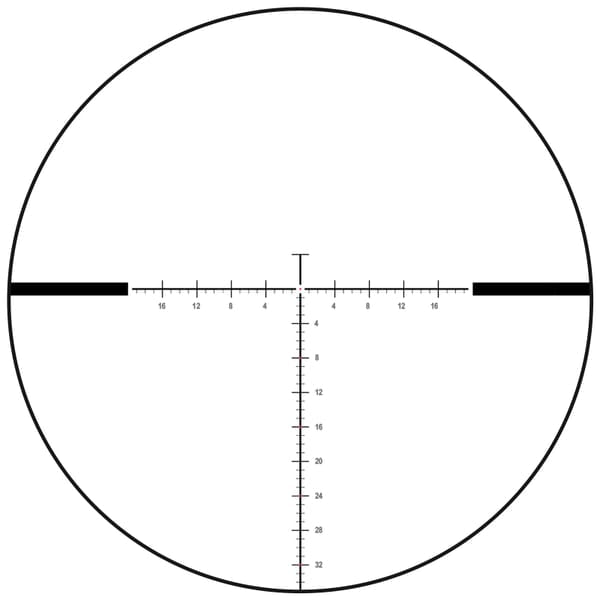

- RETICLE: MD4 reticle for precise holdovers and windage adjustments, enhancing accuracy.
Specifications:
| Specification | Details |
|---|---|
| Model | VDU5-25FFMD4 |
| Magnification | 5-25x |
| Objective Diameter | 50 mm |
| Tube Diameter | 34 mm |
| Overall Length | 11.2 inches (285 mm) |
| Weight | 29.5 oz (835 g) |
| Eye Relief | 5X: 2.96-3.71" (75-94 mm) |
| Eye Relief | 25X: 3.27-3.63" (83-92 mm) |
| Field of View @ 100 yds | 5X: 23.3 ft (7.1 m) |
| Field of View @ 100 yds | 25X: 4.7 ft (1.43 m) |
| Power Source | CR2032 |
| Reticle | MD4 |
| Elevation Adjustment | 34.7 mils |
| Windage Adjustment | 34.7 mils |
| Finish | Anodized |
| Water Resistance | Yes |
| Fog Resistance | Yes |
What's Included:
- Vudu® 5-25X50 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
- Battery
- Zero Stop Wrench
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
