Description

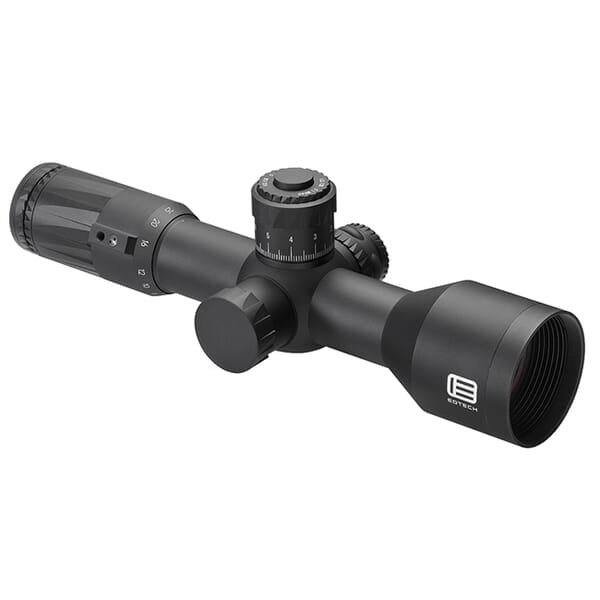

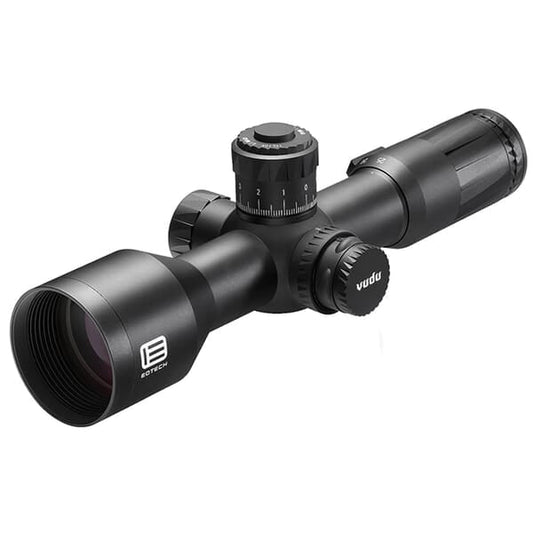

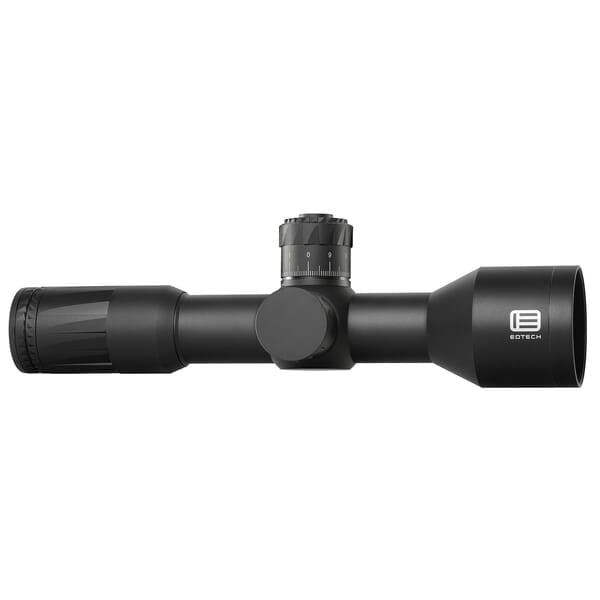

The EOTech Vudu 5-25x50 FFP MD3 Riflescope VDU5-25FFMD3 is a high-performance optic designed for precision long-range shooting. This riflescope features a first focal plane (FFP) reticle, ensuring that the reticle size remains constant relative to the target across all magnification levels. Its compact design, measuring just 11.2 inches in length, makes it one of the shortest scopes in its class, providing excellent mounting flexibility and the ability to attach additional night vision or thermal devices.
The EOTech Vudu 5-25x50 FFP MD3 Riflescope VDU5-25FFMD3 is built with a robust 34mm tube made from aircraft-grade aluminum, ensuring durability and resistance to harsh conditions. The scope is equipped with high-density, low-dispersion glass and anti-reflective coatings, delivering exceptional light transmission and edge-to-edge clarity. The push/pull locking elevation turret and EOTECH’s EZ Chek Zero Stop feature provide precise adjustments and reliable performance in the field.
Ideal for tactical shooters and long-range enthusiasts, the EOTech Vudu 5-25x50 FFP MD3 Riflescope VDU5-25FFMD3 offers a versatile magnification range from 5x to 25x, making it suitable for various shooting scenarios. The illuminated MD3 reticle enhances target acquisition in low-light conditions, while the nitrogen-purged and o-ring sealed construction ensures the scope remains fog-proof and waterproof.
Ideal For:
- Tactical shooters
- Long-range enthusiasts
- Precision shooting competitions
- Hunting in diverse environments
Features:
- FIRST FOCAL PLANE RETICLE: The reticle size adjusts with magnification, providing accurate holdovers at any range.
- COMPACT DESIGN: At 11.2 inches, it is one of the shortest scopes in its class, allowing for flexible mounting options.
- DURABLE CONSTRUCTION: Made from aircraft-grade aluminum with an anodized finish, ensuring resistance to harsh conditions.
- HIGH-DENSITY GLASS: Low-dispersion glass with anti-reflective coatings for superior light transmission and clarity.

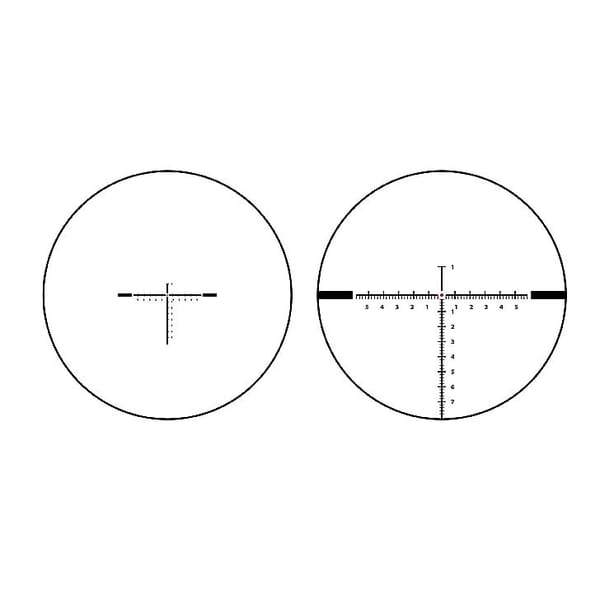

- ILLUMINATED RETICLE: The MD3 reticle with illumination enhances visibility in low-light conditions.
- PRECISE ADJUSTMENTS: Push/pull locking elevation turret and EZ Chek Zero Stop for reliable and precise adjustments.
- WATERPROOF AND FOG-PROOF: Nitrogen-purged and o-ring sealed to prevent moisture and dust ingress.
- VERSATILE MAGNIFICATION: 5-25x magnification range suitable for various shooting scenarios.
Specifications:
| Specification | Details |
|---|---|
| Model | VDU5-25FFMD3 |
| Magnification | 5-25x |
| Objective Lens Diameter | 50 mm |
| Tube Diameter | 34 mm |
| Overall Length | 11.2 inches (285 mm) |
| Weight | 29.5 oz (835 g) |
| Eye Relief | 5x: 2.96-3.71 inches (75-94 mm), 25x: 3.27-3.63 inches (83-92 mm) |
| Field of View @ 100 Yards | 5x: 23.3 ft (7.1 m), 25x: 4.7 ft (1.43 m) |
| Reticle | MD3 |
| Illumination | Yes |
| Adjustment Per Click | 0.1 MRAD |
| Elevation Adjustment Range | 33 MRAD |
| Windage Adjustment Range | 33 MRAD |
| Parallax Adjustment | 50 yards to infinity |
| Power Source | CR2032 battery |
| Waterproof | Yes |
| Fog-proof | Yes |
What's Included:
- Vudu® 5-25X50 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
- Battery
- Zero Stop Wrench
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
