Description

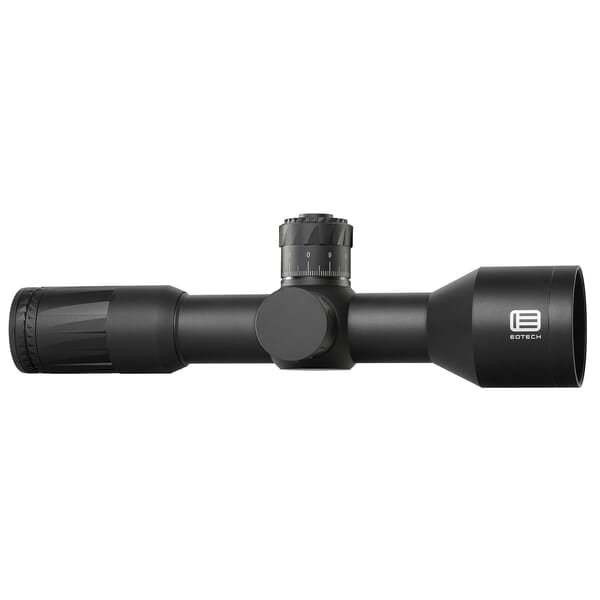

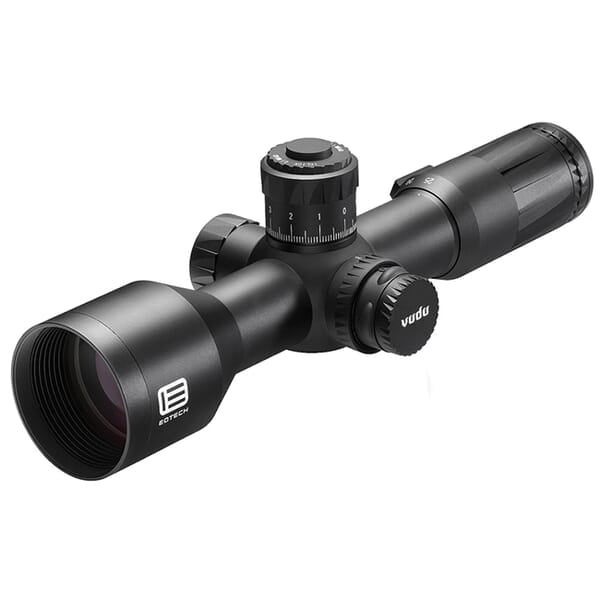

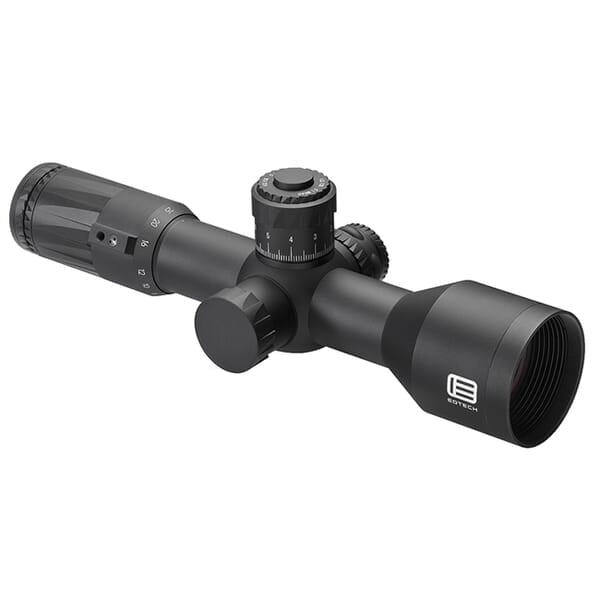

The EOTech Vudu 5-25x50 FFP H59 Riflescope VDU5-25FFH59 is a high-performance optic designed for precision shooting. With its compact design, measuring only 11.2 inches in length, it stands as one of the shortest first focal plane rifle scopes available. The scope's rugged construction, featuring aircraft-grade aluminum, ensures durability and reliability in harsh environments.
This model offers exceptional clarity and light transmission thanks to its XC™ high-density, low dispersion glass and anti-reflective coated lenses. The VDU5-25FFH59 is water-resistant, fog-resistant, and shock-resistant, guaranteeing optimal performance in various conditions. Its elevation turret includes a push/pull locking system and EOTECH's EZ Chek Zero Stop for quick adjustments and easy return to zero.

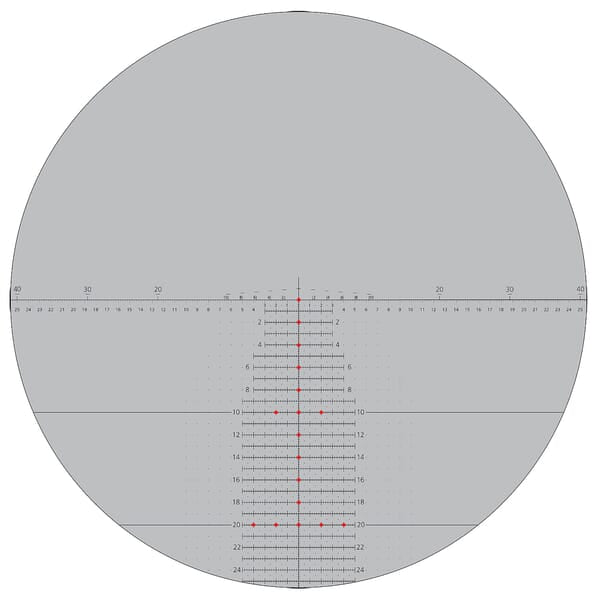

The EOTech Vudu 5-25x50 FFP H59 Riflescope VDU5-25FFH59 is ideal for short platform rifles and allows for the attachment of clip-on night vision or thermal devices. The Horus H59 reticle features a horizontal and vertical grid pattern, enabling built-in range-finding, holdovers, and wind compensation.
Ideal For: Precision shooters, tactical applications, and long-range engagements requiring a compact, high-performance optic.
Features:
-
AIRCRAFT-GRADE CONSTRUCTION: Built with aircraft-grade aluminum and an anodized finish, this scope offers extreme durability for demanding environments. The single-piece tube design enhances structural integrity and prevents moisture ingress.
-
ADVANCED OPTICAL SYSTEM: Utilizes XC™ high-density, low dispersion glass with anti-reflective coatings for superior light transmission and edge-to-edge clarity. This system ensures bright, crisp images even in low-light conditions.
-
FIRST FOCAL PLANE RETICLE: The Horus H59 reticle, positioned in the first focal plane, maintains its size relative to the target across all magnification levels. This feature allows for accurate rangefinding and holdovers at any zoom setting.
-
COMPACT DESIGN: At just 11.2 inches in length, this scope is one of the shortest first focal plane rifle scopes available. Its compact size makes it ideal for short platform rifles and improves overall weapon handling.
-
ENVIRONMENTAL RESISTANCE: Nitrogen-purged and O-ring sealed, this scope is waterproof, fog-proof, and shockproof. It can withstand harsh weather conditions and heavy recoil without compromising performance.
-
PRECISION ADJUSTMENTS: Features a push/pull locking elevation turret and EOTECH's EZ Chek Zero Stop for quick, accurate adjustments. The windage turret is capped to prevent accidental changes during field use.
-
VERSATILE MAGNIFICATION: Offers a wide 5-25x magnification range, suitable for both close-quarter engagements and long-range precision shooting. The throw lever allows for rapid magnification changes.
-
NIGHT VISION COMPATIBILITY: Designed to accommodate clip-on night vision or thermal devices, extending the scope's versatility for low-light operations and tactical scenarios.
Specifications:
| Specification | Details |
|---|---|
| Magnification | 5-25x |
| Objective Lens Diameter | 50 mm |
| Tube Diameter | 34 mm |
| Overall Length | 11.2 inches (285 mm) |
| Weight | 29.5 oz (835 g) |
| Eye Relief | 5x: 2.96-3.71 inches (75-94 mm), 25x: 3.27-3.63 inches (83-92 mm) |
| Field of View at 100 yards | 5x: 23.3 ft (7.1 m), 25x: 4.7 ft (1.43 m) |
| Adjustment Per Click | 0.1 MRAD |
| Total Elevation Travel | 29 MRAD |
| Total Windage Travel | 23 MRAD |
| Parallax Adjustment | Side focus, 50 yards to infinity |
| Illumination | Yes, with multiple brightness settings |
| Reticle | Horus H59 (First Focal Plane) |
| Battery Type | CR2032 |
| Waterproof | Yes |
| Fog Proof | Yes |
Included Accessories: Operator Manual, Reticle Manual, Throw Lever, Sunshade, Lens Cleaning Cloth, Battery, Zero Stop Wrench
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
