Description

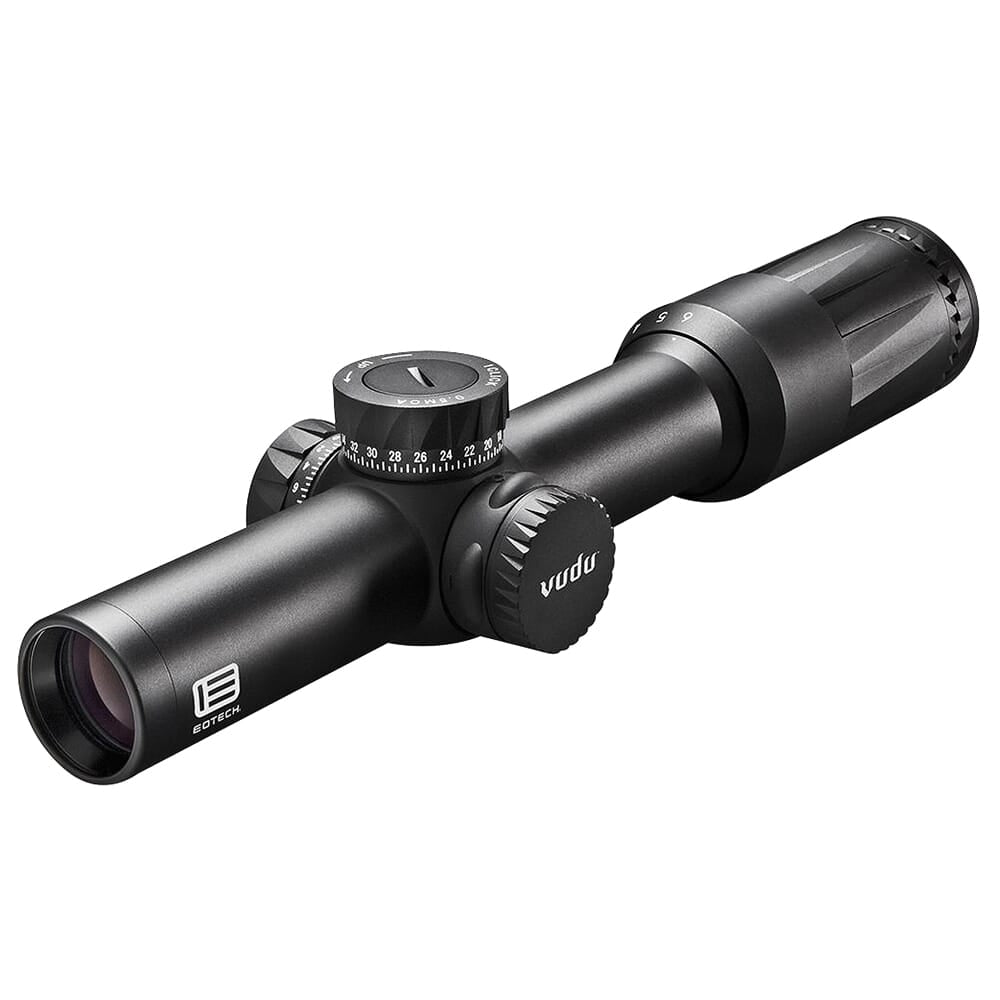

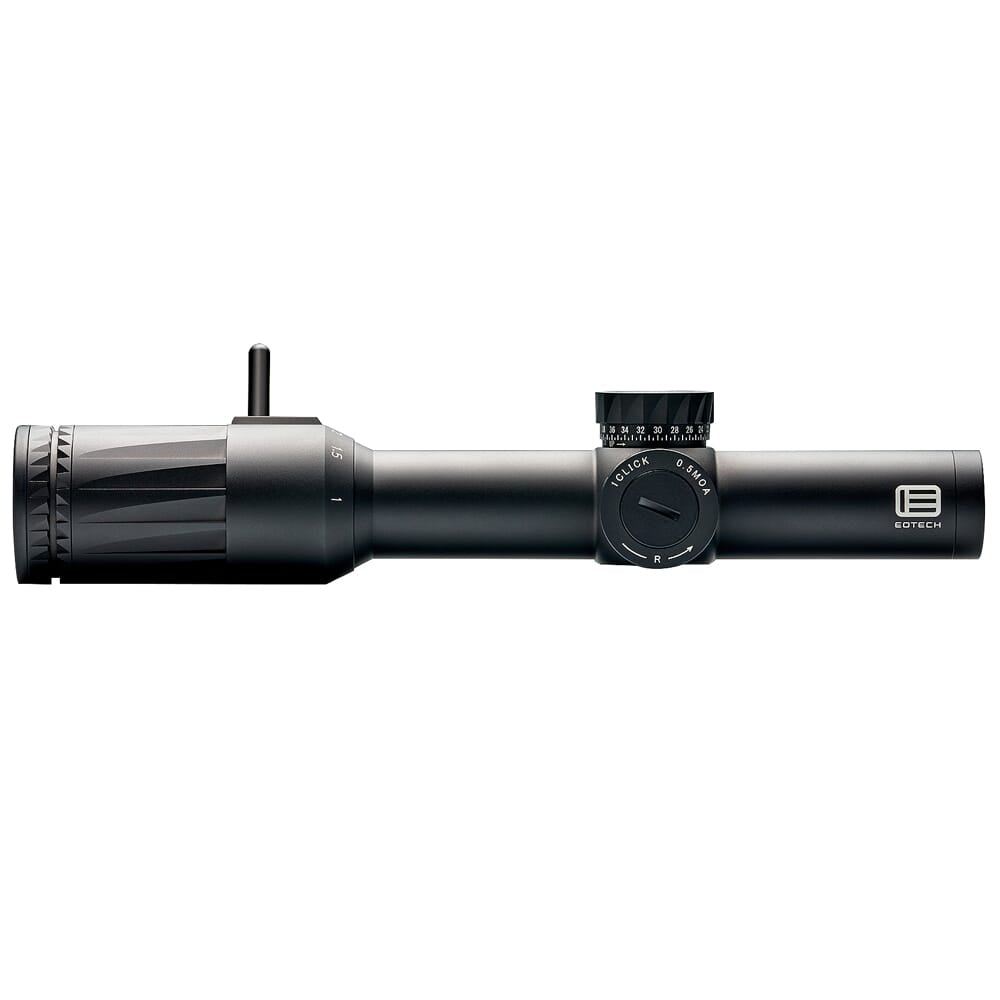

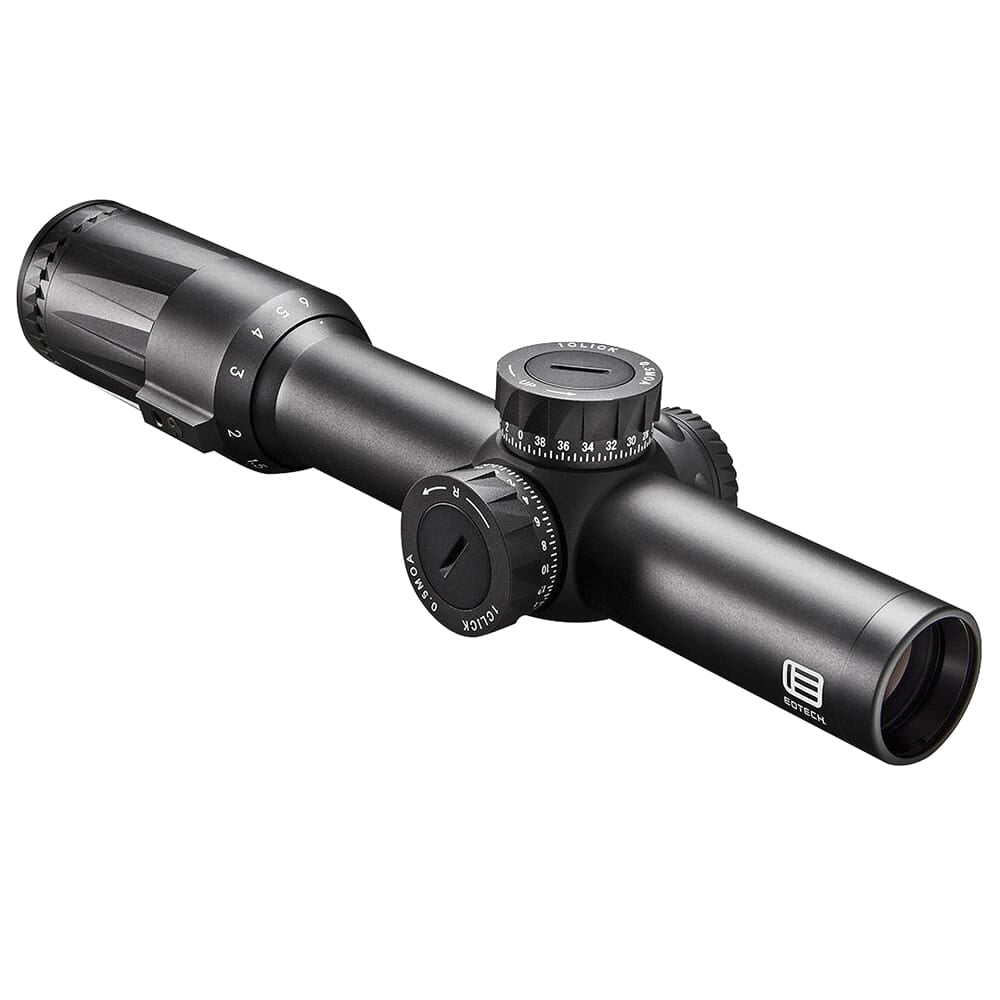

The EOTech Vudu 1-6x24mm FFP SR3 Riflescope VDU1-6FFSR3G is a top-tier optic designed for precision and versatility. This riflescope features a first focal plane (FFP) reticle, ensuring that the reticle size adjusts with magnification, providing accurate holdovers at any range. The SR3 reticle, optimized for 5.56mm ballistics, offers a green illuminated MOA reticle for enhanced visibility in various lighting conditions. Crafted from aircraft-grade aluminum, the Vudu 1-6x24mm is both durable and lightweight, making it an ideal choice for serious hunters and competitive shooters alike.
The EOTech Vudu 1-6x24mm FFP SR3 Riflescope VDU1-6FFSR3G excels in short to medium-range applications. Its 1-6x magnification range allows for rapid target acquisition at low power and precise aiming at higher magnifications. The scope's XC high-density, low dispersion glass with anti-reflective coatings ensures exceptional light transmission and edge-to-edge clarity. Additionally, the riflescope is shock-resistant, water-resistant, and fog-resistant, making it reliable in harsh environmental conditions.
Ideal for AR platforms and bolt-action rifles, the EOTech Vudu 1-6x24mm FFP SR3 Riflescope VDU1-6FFSR3G is compact yet fully loaded with features. The push-button illumination controls and laser-etched adjustment indicators make it user-friendly and efficient. The inclusion of a throw lever allows for quick magnification adjustments, further enhancing its usability in dynamic shooting scenarios.
Ideal For:
- Competitive shooters
- Serious hunters
- Tactical applications
- Short to medium-range engagements
Features:
- FIRST FOCAL PLANE: The reticle adjusts with magnification for accurate holdovers at any range.
- DURABLE CONSTRUCTION: Made from aircraft-grade aluminum with an anodized finish for extreme durability.

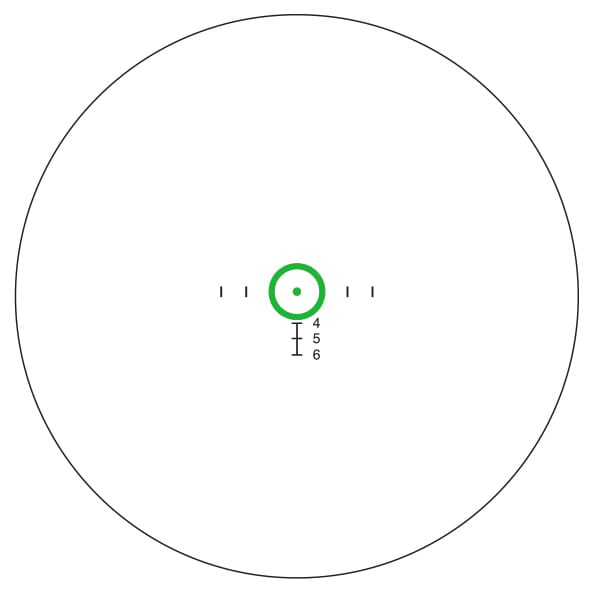

- ILLUMINATED RETICLE: Green illuminated SR3 reticle optimized for 5.56mm ballistics.
- HIGH-QUALITY GLASS: XC high-density, low dispersion glass with anti-reflective coatings for superior clarity.
- WATER, FOG, AND SHOCK RESISTANT: Designed to withstand harsh environmental conditions.
- EASY ADJUSTMENTS: Push-button illumination controls and laser-etched adjustment indicators.
- QUICK MAGNIFICATION: Includes a throw lever for fast magnification changes.
- COMPACT DESIGN: Lightweight and compact, suitable for AR platforms and bolt-action rifles.
Specifications:
| Specification | Detail |
|---|---|
| Magnification | 1-6x |
| Objective Lens Diameter | 24mm |
| Focal Plane | First Focal Plane (FFP) |
| Reticle | SR3 Green Illuminated MOA |
| Tube Diameter | 30mm |
| Overall Length | 10.63 inches (270mm) |
| Weight | 20.1 oz (570g) |
| Eye Relief | 1x: 3.27-3.94 inches (83-100mm), 6x: 3.23-3.94 inches (82-100mm) |
| Field of View @ 100 Yards | 1x: 102.4 ft (31.2m), 6x: 16.7 ft (5.09m) |
| Exit Pupil | 1x: 11.4mm, 6x: 4.0mm |
| Exterior Finish | Flat Black, Type III anodized |
| Illumination Controls | Push Buttons |
| Windage & Elevation Adjustment | 0.5 MOA per click |
| Total Elevation Adjustment | ± 50 MOA |
| Total Windage Adjustment | ± 50 MOA |
| Battery Type | CR2032 |
| Battery Life | Approx. 500 hrs at middle brightness |
| Auto Power Shut-Off | Approx. 2 hrs |
What's Included:
- Vudu 1-6x24mm Riflescope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
