Description

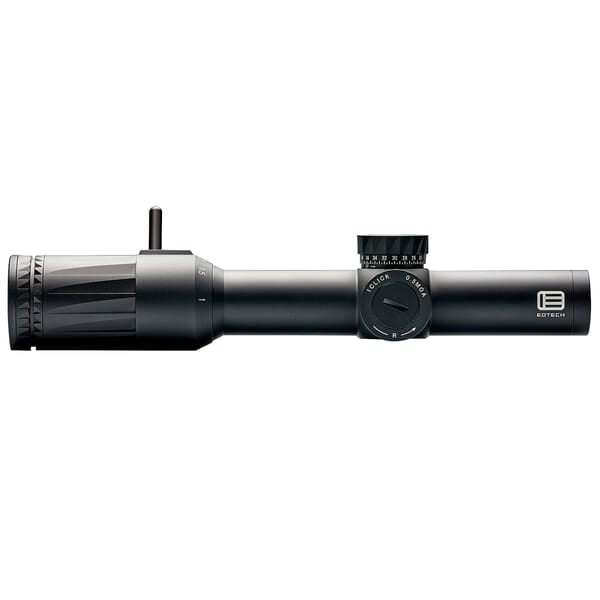

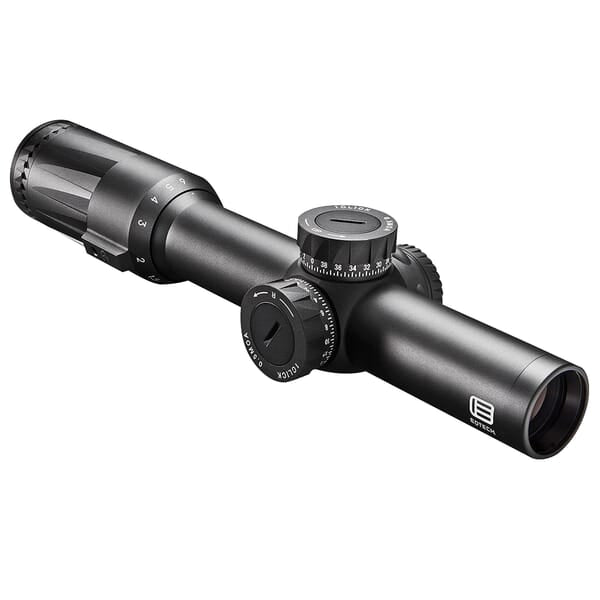

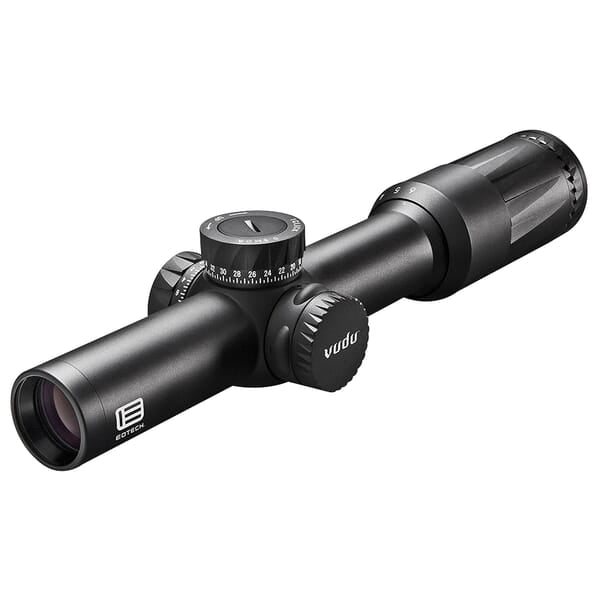

The EOTech Vudu 1-6x24mm FFP SR2 Riflescope VDU1-6FFSR2G is a high-performance optic designed for both AR platforms and bolt-action rifles. Its first focal plane (FFP) reticle ensures that the reticle size adjusts with magnification, providing precise holdovers at any range. The SR2 reticle, specifically calibrated for .308 Winchester cartridges, features a 1.5 MOA center dot and holdover points for 400, 500, and 600 yards, making it ideal for both close-quarters and long-range engagements.
The riflescope is built with aircraft-grade aluminum, ensuring durability and resilience in harsh environments. The lenses are made from XC high-density, low-dispersion glass with multiple coatings to enhance light transmission and reduce reflections, offering superior edge-to-edge clarity. The exposed windage and elevation turrets provide audible and tactile feedback for precise adjustments in the field.
Ideal for short- to medium-range applications, the EOTech Vudu 1-6x24mm FFP SR2 Riflescope VDU1-6FFSR2G combines speed and accuracy. The EOTECH Speed Ring reticle allows for rapid target acquisition at low magnification, while the higher magnification settings provide the resolution needed for long-distance shots. This versatile riflescope is perfect for tactical shooters, hunters, and competitive marksmen.
Ideal For:
- Tactical shooters
- Hunters
- Competitive marksmen
- AR platform users
- Bolt-action rifle users
Features:
- FIRST FOCAL PLANE RETICLE: Ensures accurate holdovers at any magnification level.

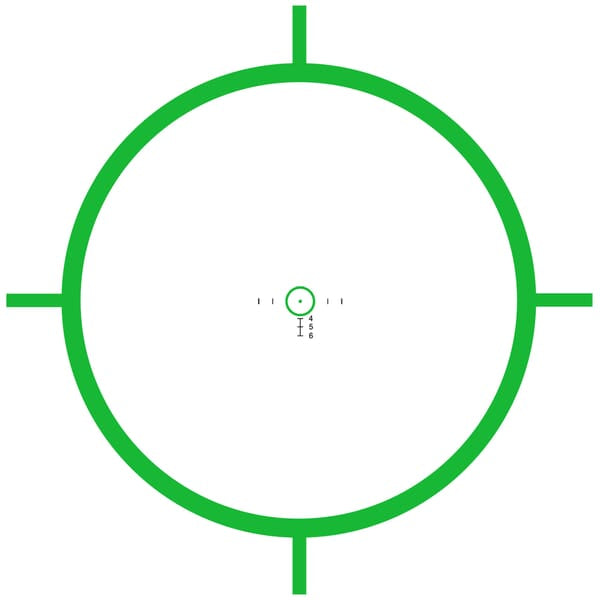

- SR2 RETICLE: Calibrated for .308 Winchester with holdover points for 400, 500, and 600 yards.
- AIRCRAFT-GRADE ALUMINUM: Single-piece construction with anodized finish for extreme durability.
- HIGH-DENSITY GLASS: XC high-density, low-dispersion glass with anti-reflective coatings for superior clarity.
- EXPOSED TURRETS: Windage and elevation turrets provide audible and tactile feedback for precise adjustments.
- NITROGEN PURGED: Prevents internal fogging over a wide range of temperatures.
- WATER AND SHOCK RESISTANT: O-ring seals and rugged design protect against moisture, dust, and recoil.
- EOTECH SPEED RING: Allows for quick target acquisition at low magnification and precise shots at higher magnification.
Specifications:
| Specification | Detail |
|---|---|
| Magnification | 1-6x |
| Objective Lens Diameter | 24 mm |
| Tube Diameter | 30 mm |
| Overall Length | 10.63 inches (270 mm) |
| Weight | 20.1 oz (570 g) |
| Eye Relief | 1x: 3.27-3.94 inches (83-100 mm) |
| 6x: 3.23-3.94 inches (82-100 mm) | |
| Field-of-View @ 100 Yards | 1x: 102.4 ft (31.2 m) |
| 6x: 16.7 ft (5.09 m) | |
| Reticle | SR2 (MOA) |
| Adjustment Graduation per Click | 0.5 MOA |
| Total Elevation Travel | 100 MOA |
| Total Windage Travel | 80 MOA |
| Power Source | CR2032 battery |
| Illumination | Yes |
| Material | Aircraft-grade aluminum |
| Finish | Anodized |
| Waterproof | Yes |
| Fogproof | Yes |
| Shockproof | Yes |
What's Included:
- Vudu 1-6x24 FFP Riflescope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
