Description

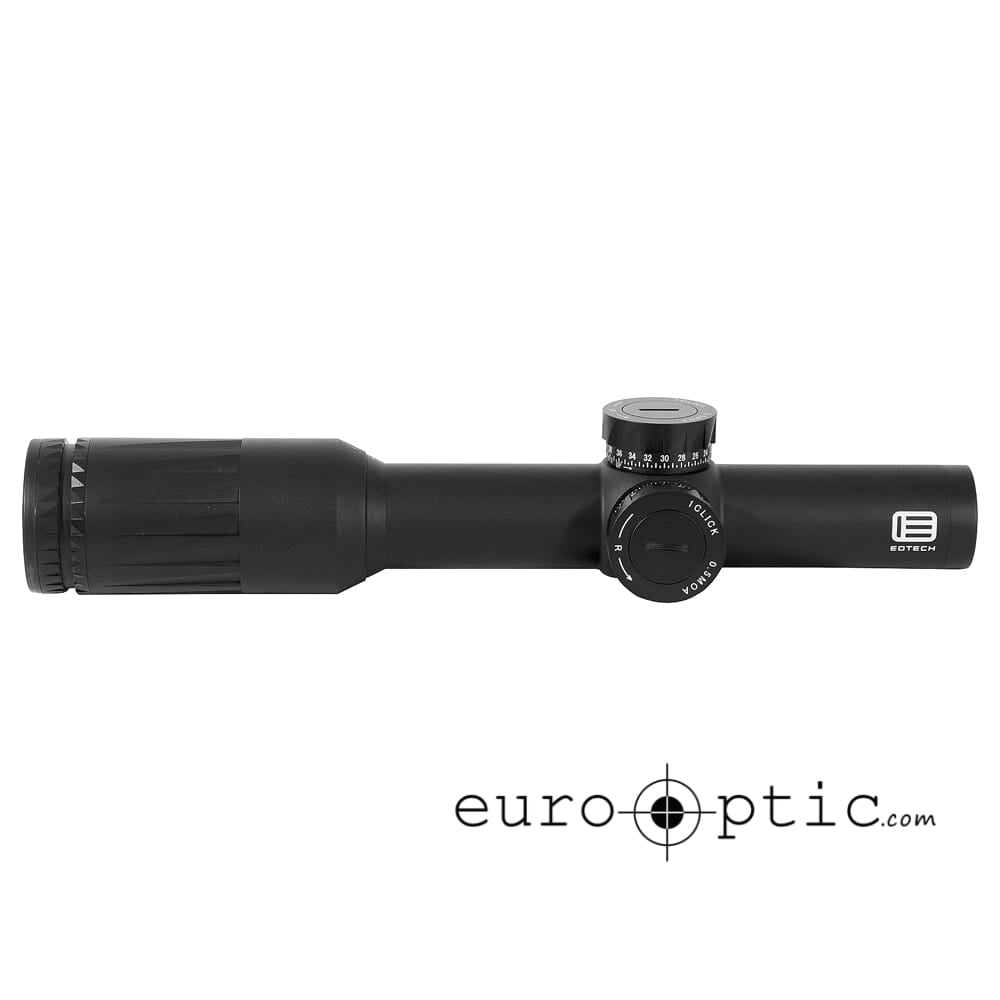

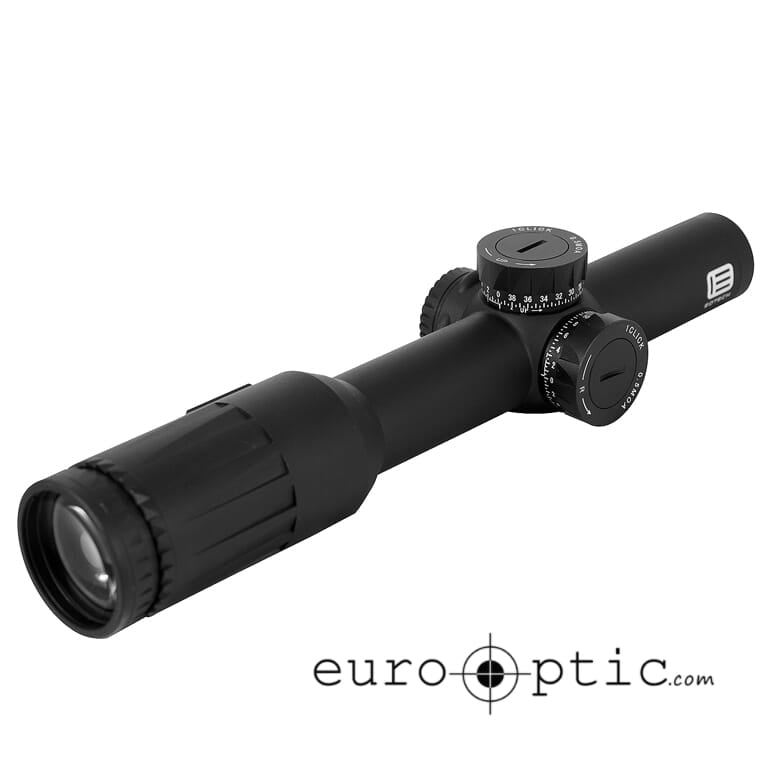

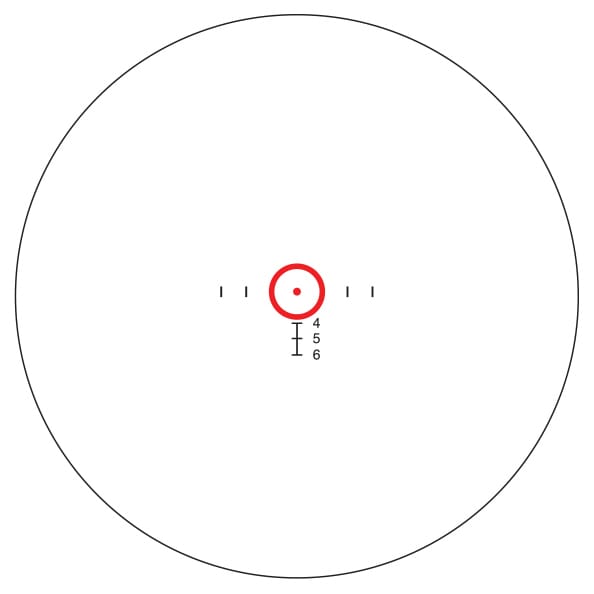

The EOTech VUDU 1-6x24 FFP SR3 Riflescope VDU1-6FFSR3 is a high-performance optic designed for precision and versatility. Featuring a first focal plane (FFP) reticle, this riflescope ensures that the reticle size adjusts with magnification, providing accurate holdovers at any range. The SR3 reticle is specifically crafted for quick target acquisition and precise aiming, making it ideal for both tactical and hunting applications.
The riflescope boasts a robust construction with aircraft-grade aluminum, ensuring durability and resistance to harsh conditions. Its single-piece tube design is water-resistant, fog-resistant, and shock-resistant, making it reliable in any environment. The anti-reflective lenses offer superior light transmission and edge-to-edge clarity, enhancing your shooting experience.
With a magnification range of 1-6x and a 24mm objective lens, the EOTech VUDU 1-6x24 FFP SR3 Riflescope VDU1-6FFSR3 is perfect for short to medium-range engagements. The scope also features push-button illumination controls and laser-etched adjustment indicators for easy and precise adjustments. Its compact size and lightweight design make it an excellent choice for AR platforms and bolt-action rifles.
Ideal For:
- Tactical shooting
- Hunting
- Competitive shooting
- Law enforcement
Features:
- FIRST FOCAL PLANE: The reticle adjusts with magnification, ensuring accurate holdovers at any range.
- DURABLE CONSTRUCTION: Made from aircraft-grade aluminum with an anodized finish for extreme durability.
- WATER & FOG RESISTANT: Nitrogen gas purging and o-ring seals prevent moisture and dust from entering the scope.
- ANTI-REFLECTIVE LENSES: High-density, low dispersion glass with anti-reflective coatings for superior clarity.
- SHOCK RESISTANT: Rugged design withstands heavy recoil and rough handling.
- ILLUMINATION CONTROLS: Push-button controls for easy and precise reticle illumination adjustments.
- COMPACT & LIGHTWEIGHT: Ideal for AR platforms and bolt-action rifles, enhancing maneuverability.
- PRECISE ADJUSTMENTS: Laser-etched adjustment indicators for tracking ease and accuracy.
Specifications:
| Specification | Details |
|---|---|
| Magnification | 1-6x |
| Objective Diameter | 24 mm |
| Reticle | SR3 |
| Focal Plane | First Focal Plane (FFP) |
| Length | 10.63 in (270 mm) |
| Weight | 20.1 oz (570 g) |
| Tube Diameter | 30 mm |
| Eye Relief | 1X: 3.27-3.94 in (83-100 mm) |
| 6X: 3.23-3.94 in (82-100 mm) | |
| Field of View @ 100 Yards | 1X: 102.4 ft (31.2 m) |
| 6X: 16.7 ft (5.09 m) | |
| Adjustment Click Value | 0.25 MOA |
| Parallax | Fixed Focus |
| Power Source | CR2032 |
| Water Resistance | Yes |
| Fog Resistance | Yes |
| Shock Resistance | Yes |
What's Included:
- Vudu® 1-6x24 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
