Description

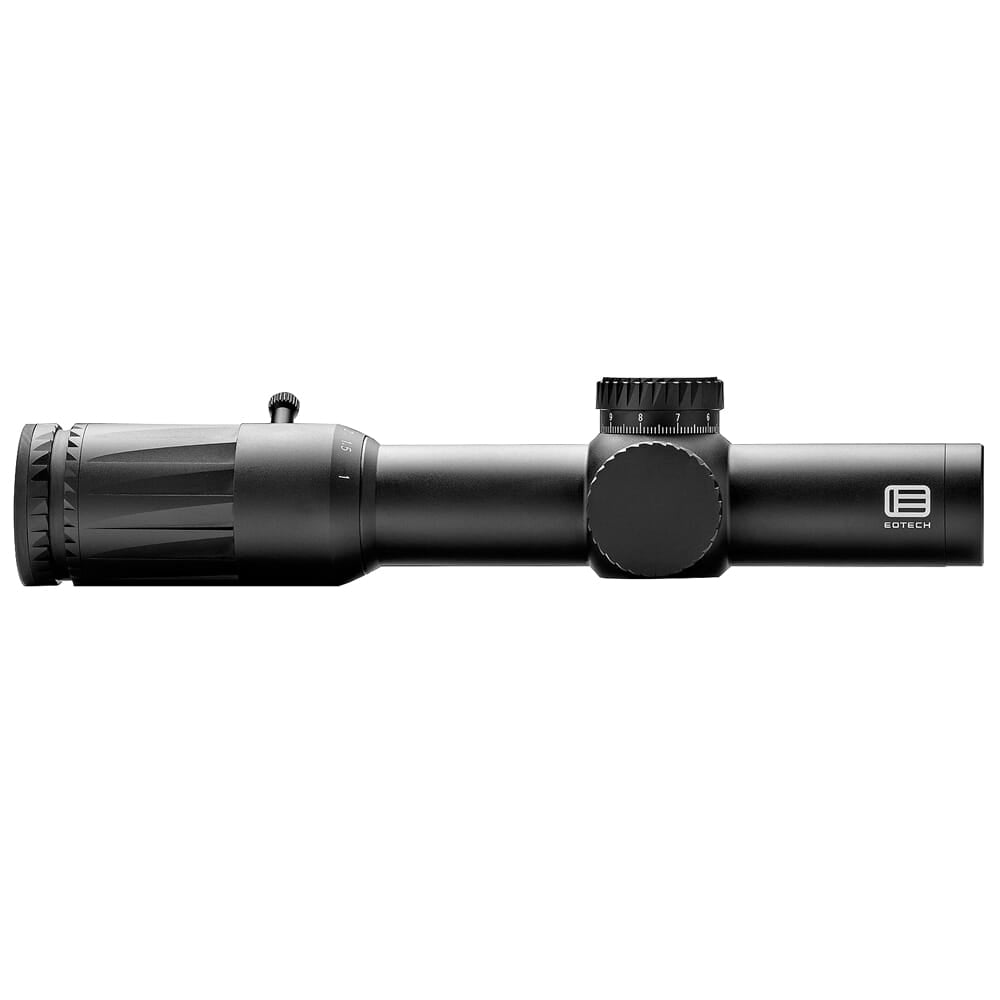

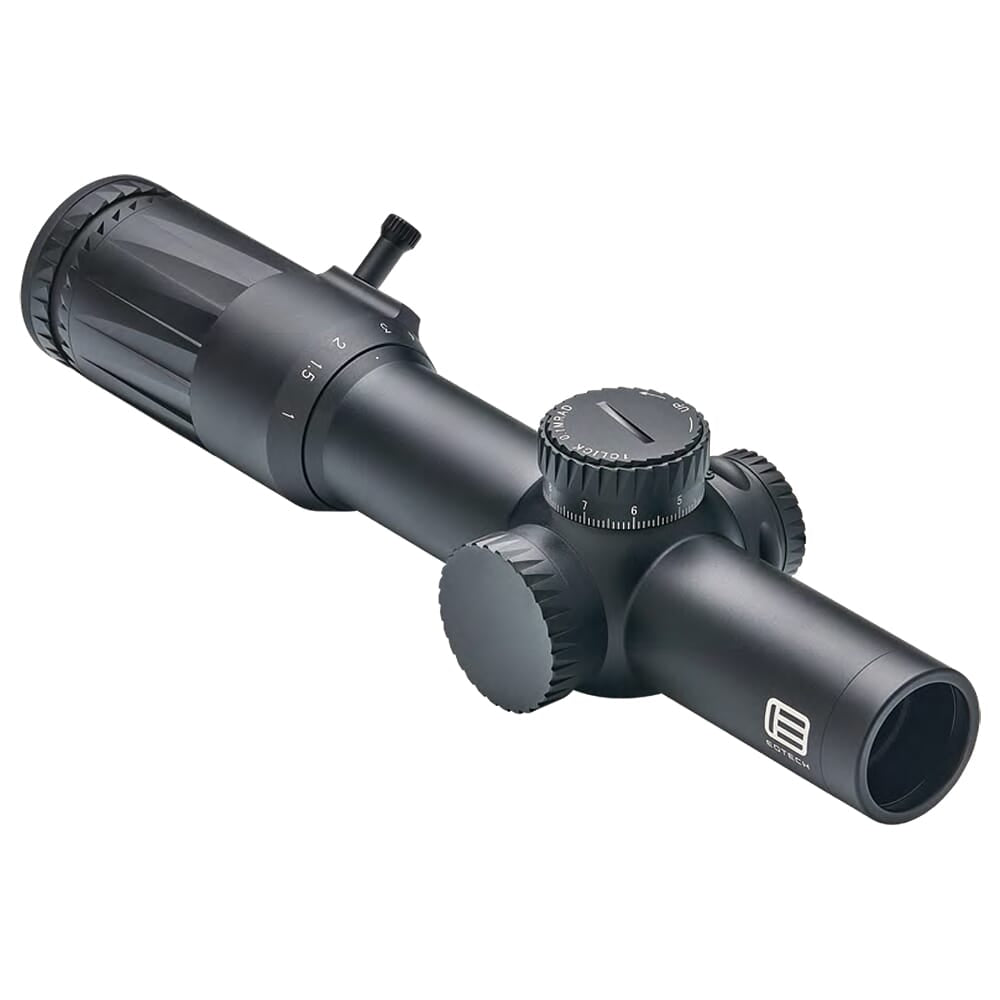

The EOTech Vudu 1-10x28mm FFP LE5 Riflescope VDU1-10FFLE5 is a high-performance optic designed for precision shooting and tactical applications. This versatile scope features a true 1x to 10x magnification range, allowing for both close-quarters engagement and long-range accuracy. The first focal plane (FFP) design ensures that the reticle subtensions remain consistent across all magnification levels.

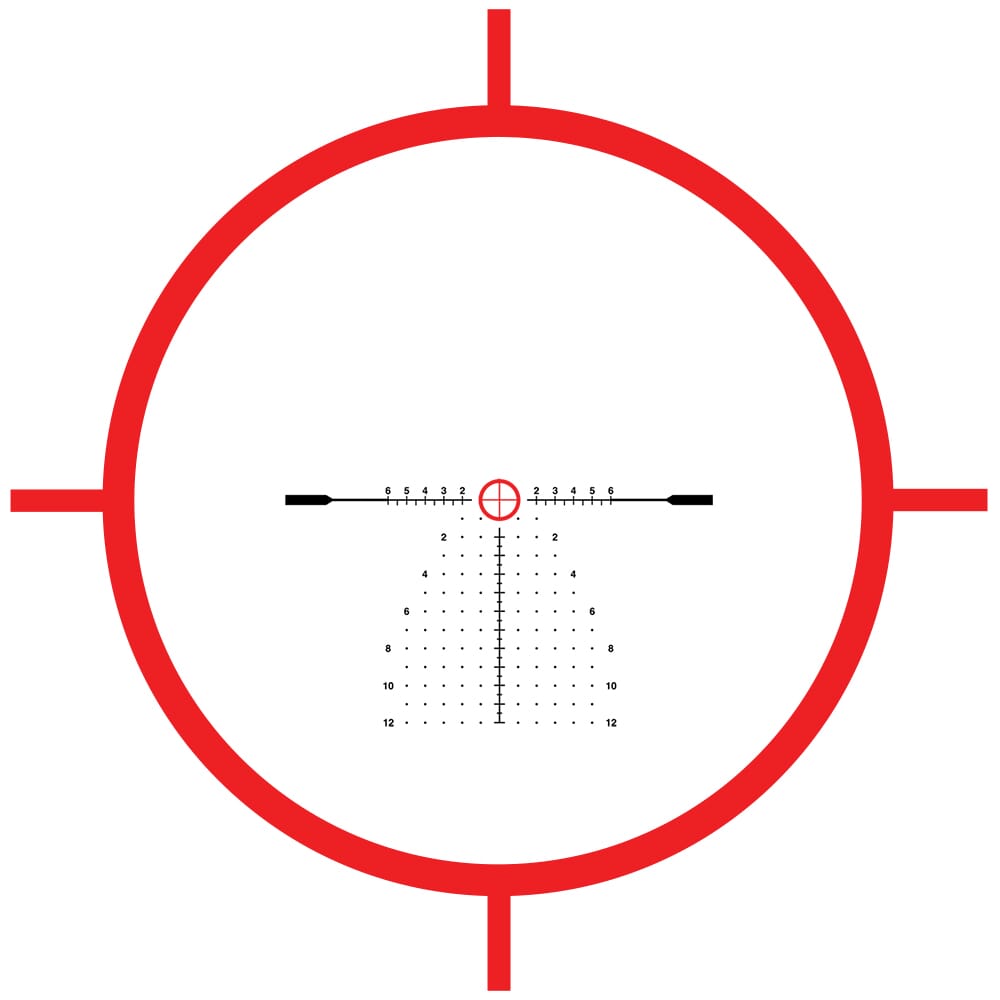

The VDU1-10FFLE5 model boasts the LE5 reticle, an illuminated MRAD-based design that provides holdover and windage references. With its 34mm main tube constructed from aircraft-grade aluminum, this scope offers exceptional durability and optical performance. The XC high-density glass delivers impressive light transmission and edge-to-edge clarity.
Ideal for: competitive shooters, tactical operators, and hunters seeking a versatile optic for various shooting scenarios. The EOTech Vudu 1-10x28mm FFP LE5 Riflescope excels in both close-quarters and long-range engagements, making it suitable for 3-gun competitions, tactical operations, and hunting in diverse environments.
Features:
-
PREMIUM OPTICS: XC high-density glass with anti-reflective coating for superior light transmission and clarity across the entire field of view.
-
DURABLE CONSTRUCTION: Aircraft-grade aluminum 34mm main tube with a hard-anodized finish for extreme durability and weather resistance.
-
FIRST FOCAL PLANE: LE5 MRAD reticle remains true at all magnifications, allowing for accurate rangefinding and holdovers.
-
ILLUMINATED RETICLE: 10 brightness settings with auto-shutoff feature for enhanced low-light performance and extended battery life.
-
PRECISION ADJUSTMENTS: Tool-less elevation and windage turrets with push/pull locking system for secure zero and easy field adjustments.
-
VERSATILE MAGNIFICATION: True 1x to 10x zoom range with a removable throw lever for quick magnification changes in any situation.
-
COMPACT DESIGN: 10.63" overall length and 21.3 oz weight make it suitable for a wide range of firearm platforms.
-
ADVANCED FEATURES: Includes fog-resistant nitrogen purging, shock resistance, and water resistance for reliable performance in harsh conditions.
Specifications:
| Specification | Detail |
|---|---|
| Magnification | 1-10x |
| Objective Lens Diameter | 28mm |
| Tube Diameter | 34mm |
| Reticle | LE5 MRAD |
| Focal Plane | First Focal Plane (FFP) |
| Eye Relief | 3.27-3.90" (1x), 3.35-3.62" (10x) |
| Field of View | 116.6 ft @ 100 yds (1x), 11.7 ft @ 100 yds (10x) |
| Adjustment Per Click | 0.1 MRAD |
| Total Elevation Travel | 29 MRAD |
| Total Windage Travel | 23 MRAD |
| Length | 10.63" (270mm) |
| Weight | 21.3 oz (603g) |
| Illumination | Yes, 10 settings |
| Battery Type | CR2032 |
| Waterproof | Yes |
| Fog Proof | Yes |
| Shock Proof | Yes |
What's Included:
- EOTech Vudu 1-10x28mm FFP LE5 Riflescope
- Removable throw lever
- CR2032 battery
- Lens cloth
- User manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
