Description

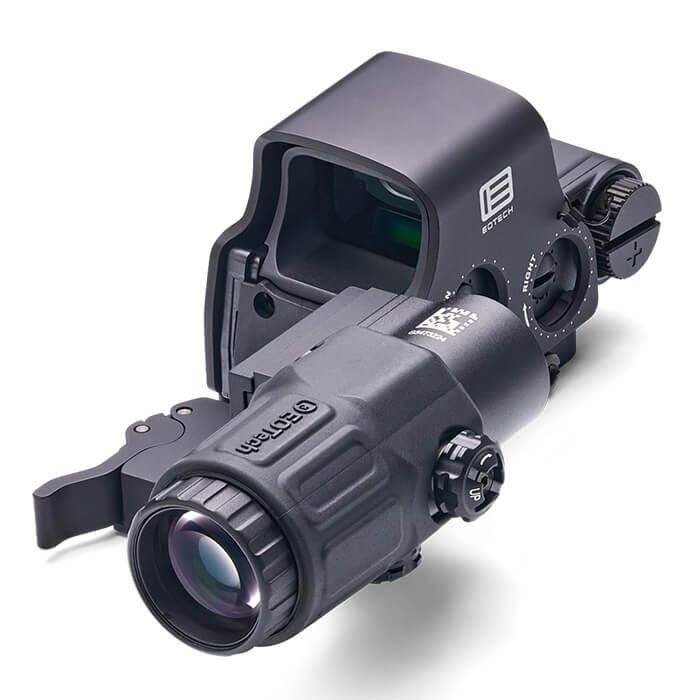

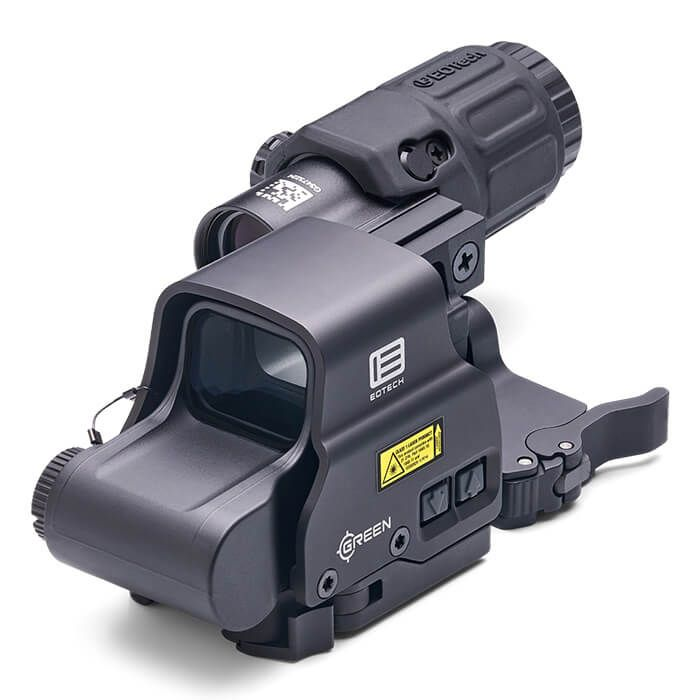

The EOTech HHS Green Holographic Hybrid Sight - EXPS2-0GRN with G33 Magnifier represents the pinnacle of sophisticated optics technology, designed to provide unparalleled accuracy and versatility. This hybrid sight system marries the rapid target acquisition of the EXPS2 holographic sight with the extended-range precision provided by the G33 magnifier. Serving as a quintessential tool for marksmen, it accommodates rapid engagement of close-quarter targets while also granting the shooter the ability to easily switch to a magnified view for longer distances.
Crafted to maximize the shooter's situational awareness, the EXPS2 features a green holographic reticle with a 68 MOA outer ring and a precise 1 MOA center aiming dot. This combination allows for quick sighting over short to medium ranges and is complemented by 20 brightness settings to ensure visibility in most lighting conditions. The sight is highly robust, with anti-reflective coated glass and a compact form factor that preserves rail space.
The included G33 Magnifier is a game-changer, offering 3x magnification for enhanced target identification and accuracy at range. The magnifier's Switch to Side (STS) mount provides seamless transitions between magnified and unmagnified views without comprising the shooter’s position. Tool-free adjustments for windage and elevation, as well as a weatherproof housing, solidify this optic as a reliable addition to any firearm. Both EOTech components are engineered for durability, with the EXPS2 being submersible up to 33 feet and boasting an integrated quick-release mount for easy attachment and detachment from any Picatinny or Weaver rail system without re-zeroing.
Features
- RAPID TARGET ACQUISITION: Combines the EXPS2 holographic sight with the G33 Magnifier for swift engagement from close to medium range.

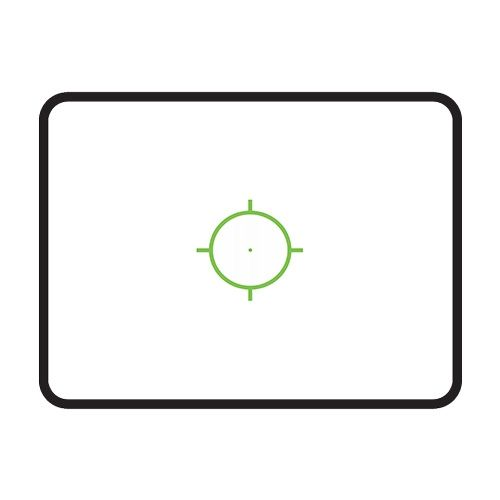

- GREEN HOLOGRAPHIC RETICLE: 68 MOA outer ring and 1 MOA center aiming dot for precise targeting, with 20 brightness levels for adaptability to lighting conditions.
- EXTENDED RANGE PRECISION: G33 Magnifier with 3x magnification feature and STS mount enhances long-distance accuracy, and quick transitions to unmagnified view.
- VERSATILE MOUNTING: Quick-release Picatinny/Weaver rail mount, compatible with a variety of firearms, allows for rapid installation or removal.
- ROBUST CONSTRUCTION: Submersible to 33 feet with fog-resistant internal optics, ensuring performance under the most demanding conditions.
- CONSERVE RAIL SPACE: The compact EXPS2 offers both eyes open sighting without monopolizing rail space, allowing for additional accessories.
- EXTENSIVE BATTERY LIFE: A single CR123 battery powers the EXPS2 for up to 600 continuous hours at nominal setting 12 for consistent readiness.
- WINDAGE & ELEVATION ADJUSTMENTS: Tool-free adjustments on both the EXPS2 sight and G33 Magnifier make sighting in hassle-free and precise.
Specifications
| Feature | Specification |
|---|---|
| Magnification Range | 3x |
| Power Supply | 1 x CR123 battery |
| Weight | 22.4 ounces |
| Reticle Details | 68 MOA Ring w/ 1 MOA Ballistic Dot |
| Battery Life | 600 continuous hours at setting 12 |
| Battery Type | CR123A |
| Product Type | Holographic Sight |
| Brightness Settings | 20 |
| Night Vision Compatible | No |
| Item Condition | New |
| UPC | 672294600633 |
| MPN | HHS-GRN |
WHAT'S IN THE BOX?
- EOTech HHS Green (EXPS2-0GRN & G33.STS)
- Quick-Start Guide
- Warranty & Registration Card
- CR123 Battery
- Protective Case
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
