Description

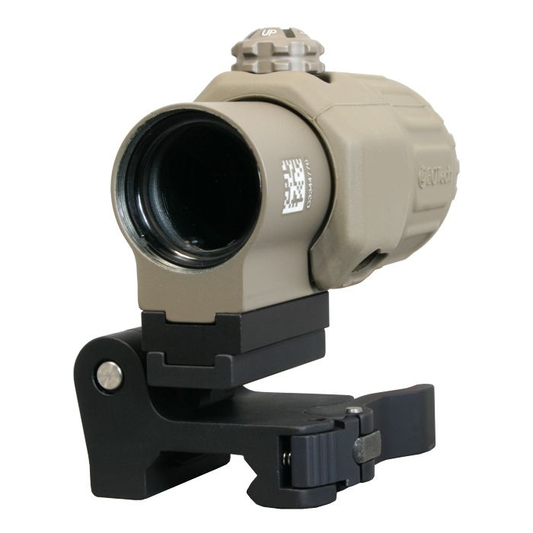

The EOTech G33 Magnifier with QD STS Mount in Tan (G33STS-TAN) is a highly adaptable and robust optic designed for the discerning rifle shooter seeking to extend the range of their holographic or red dot sights. Encased in a non-reflective tan finish, the G33 offers a seamless 3x magnification that provides an enlarged field of view for long-distance target acquisition while remaining compact enough to not impede close-quarters effectiveness.
Built to enhance situational adaptability, the G33 features the innovative Switch to Side (STS) mount, which allows for swift transitioning between magnified and unmagnified views. This feature is indispensable in dynamic shooting scenarios, allowing the shooter to maintain optimal target engagement across all distances. The included 7mm riser facilitates the co-witnessing of raised iron sights, an essential capability for maintaining sighting options in varying conditions.
Upgraded with tool-free windage and elevation adjustments, the G33 magnifier is designed for ease of use and rapid adaptability in the field. O-ring sealing ensures that the optic is fog-proof and submersible to 33 ft, creating a resilient optical accessory ready for all environmental challenges. The improved 2-inch eye relief contributes to a comfortable and safe shooting experience, especially important during extended shooting sessions.
Features
- ADVANCED OPTICS: 3x magnification for precision long-range targeting with holographic/red dot sights.
- SWITCH TO SIDE: Quick-release STS mount for fast switching between magnified/unmagnified views.
- ELEVATED ACCURACY: Tool-free windage and elevation adjustments for easy reticle centering.
- CO-WITNESS CAPABILITY: Includes a 7mm riser for synchronizing with raised iron sights.
- ENHANCED DURABILITY: Rugged, weatherproof housing sealed for protection against the elements.
- OPTIMIZED EYE RELIEF: An improved 2-inch eye relief for a more comfortable viewing experience.
- SLEEK DESIGN: Compact footprint with a non-reflective tan finish to reduce visual signature.
- READY-TO-USE KIT: Comes with mounting system, operator manual, warranty card, and protective case.
Specifications
| Specification | Detail |
|---|---|
| Weight | 11.9 oz |
| Magnification Range | Fixed 3.25X |
| Dimensions | 3.9" |
| Item Condition | New |
| UPC | 672294300397 |
| MPN | G33.STSTAN |
| Product Type | Magnifier |
Included In The Box
- G33 Magnifier
- Switch-to-Side Mounting System
- Operator Manual
- Warranty Card
- Protective Case
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
