Description

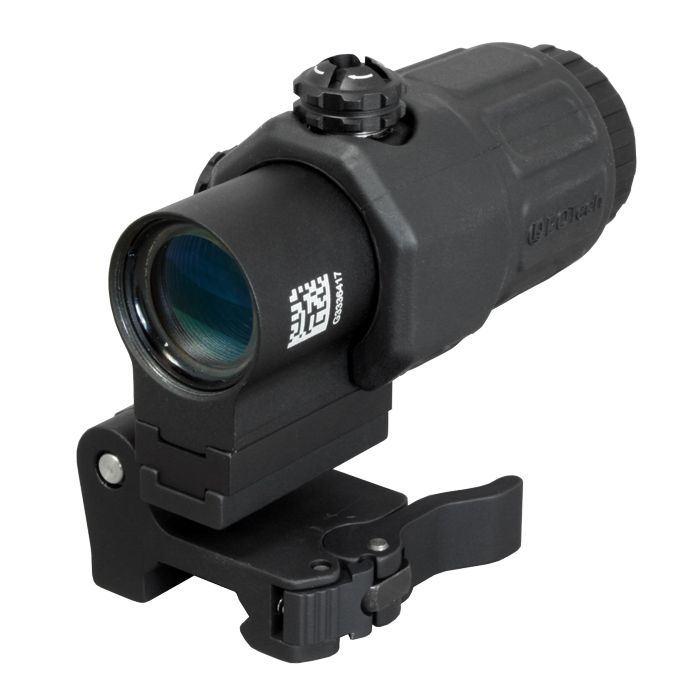

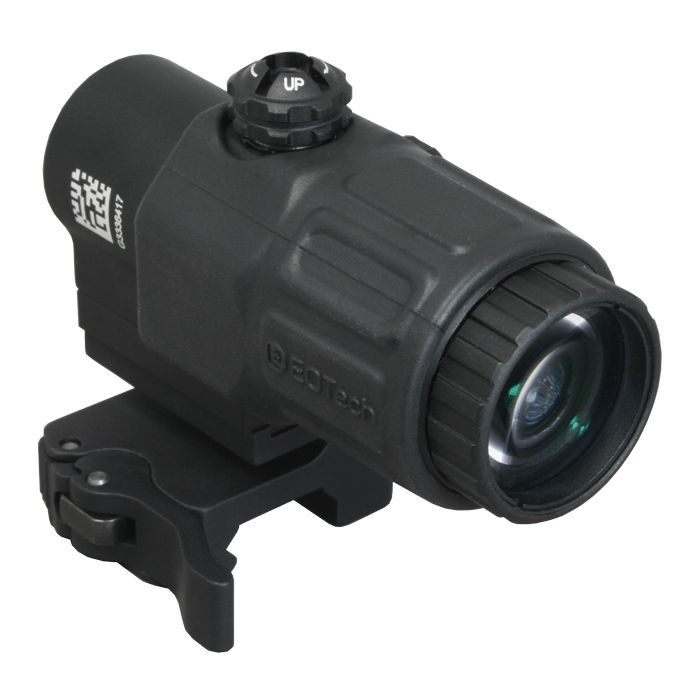

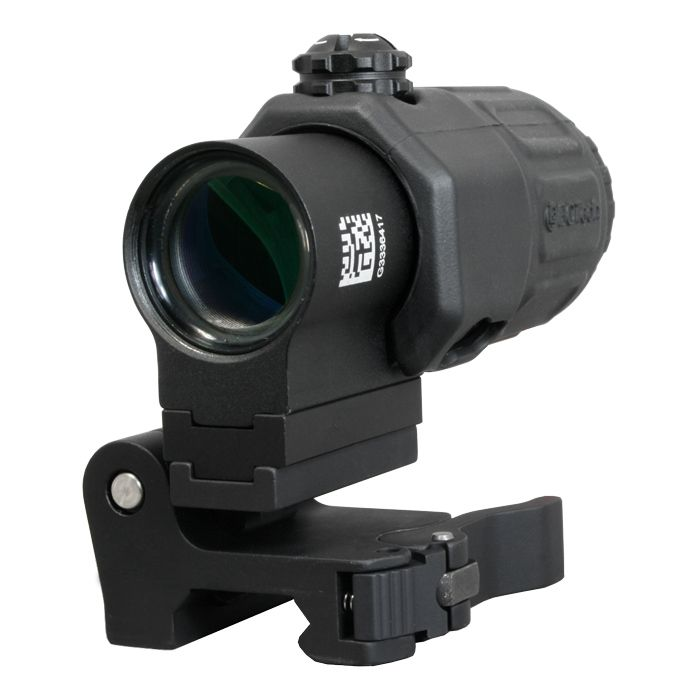

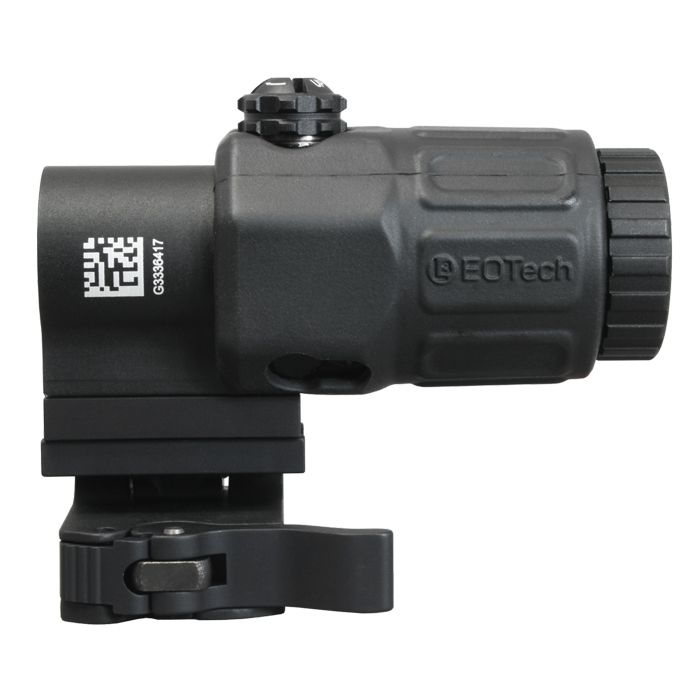

The EOTech G33 Magnifier with QD STS Mount G33STS is a paramount tool for shooters aiming to enhance their rifle's sighting capabilities. This state-of-the-art magnifier pairs with holographic or reflex sights to provide 3x magnification, bringing distant targets into clear focus. Crafted for durability and reliability, the EOTech G33 is housed in a rugged, weatherproof frame, sealing its status as an essential component for any tactical or shooting enthusiast's gear collection.

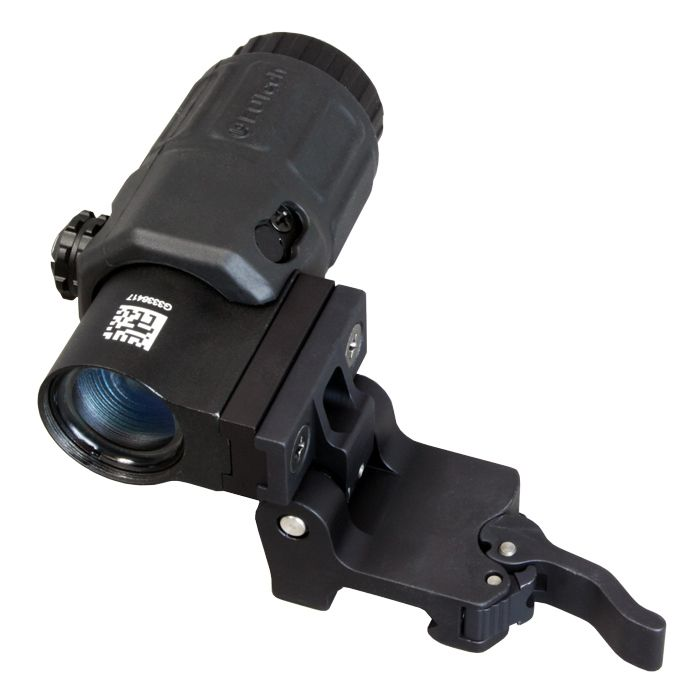

With its ingenious Switch to Side (STS) quick-release mount, the G33 magnifier stands out by offering a swift transition between amplified and unamplified views. This convenient feature ensures that shooters can maintain awareness of their surroundings and engage close-range targets without detriment to their reaction times. The included 7mm riser makes the G33 versatile, allowing for co-witnessing with raised iron sights and enhancing its usability across a range of firearms.
Performance is further refined with the G33's tool-free windage and elevation adjustments, permitting uncomplicated reticle alignment. Enhanced eye relief grants comfort and ease-of-use for prolonged periods, and the compact size does not impede the shooter's maneuverability. Whether for law enforcement, military, or recreational shooting, the EOTech G33 Magnifier is a clear choice for precision aim enhancement.
Features
- ENHANCED VISIBILITY: 3x magnification ensures detailed target recognition, amplifying shooting precision.
- CRISP TRANSITION: Switch to Side (STS) mount for quick alternation between magnified and direct sight.
- CO-WITNESS CAPABILITY: Optional 7mm riser offers co-witnessing with raised iron sights, expanding compatibility.
- USER-FRIENDLY ADJUSTMENTS: Tool-free windage and elevation tweaks enable easy reticle customization.
- COMFORTABLE VIEWING: Generous 2" eye relief provides a clear and comfortable sight picture.
- BUILT TO LAST: O-ring sealed, fog-proof construction is submersible to 33ft, ensuring operational resilience.
- STEALTH OPERATION: Non-reflective Black finish for covert operations and avoidance of glare.
- QUICK DETACH SYSTEM: QD STS Mount for speedy attachment and removal, enhancing flexibility and convenience.
Specifications
| Specification | Detail |
|---|---|
| Weight | 11.9 oz / 317.5 g |
| Magnification Range | Fixed 3x |
| Dimensions | 3.9" x 2.2" x 3.3" |
| Field of View | 7.3° |
| Eye Relief | 2.2" / 55.8 mm |
| Item Condition | New |
| UPC | 672294300380 |
| MPN | G33.STS |
| Product Type | Magnifier |
WHAT'S IN THE BOX?
- G33 Magnifier
- Switch-to-Side Mounting System
- Operator Manual
- Warranty Card
- Protective Case
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
