Description

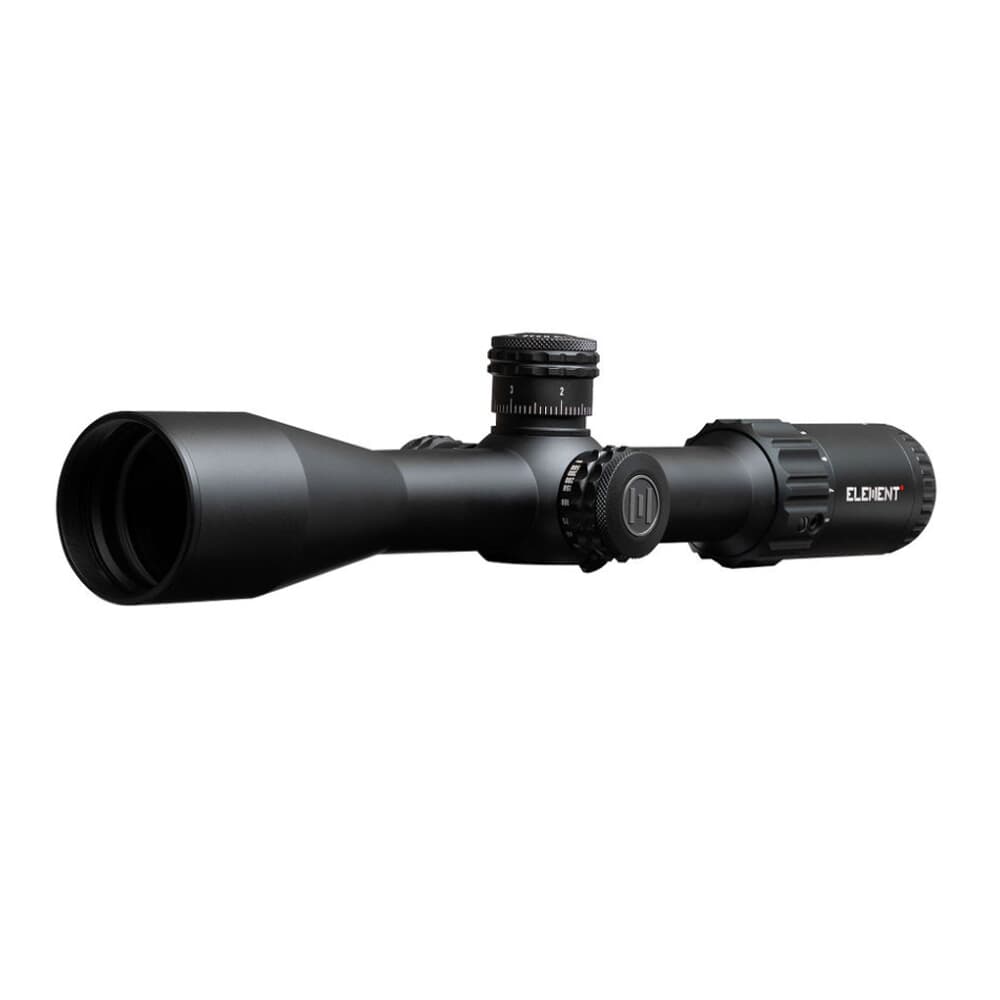

The Element Optics Helix 4-16x44 FFP APR-2D MRAD Scope 50046 redefines what you can expect from a FFP rifle scope. With its first focal plane design, this scope ensures that your reticle remains accurate for range estimation and holdovers, no matter the magnification level. Whether you’re in the field or at the range, the exceptional optical clarity and brightness coupled with a versatile 4-16x magnification make this ideal for precision shooting and tactical situations alike.
Constructed for durability and reliability, the Helix scope is equipped with MRAD adjustments for precise, repeatable tweaking to hit your target every time. It's not just about aiming; it’s about confidence in your shot. Elevate your shooting game with optics that keep you focused on your performance. Ready to take your shot? This scope is calling your name!
Features – Key Benefits Bullets

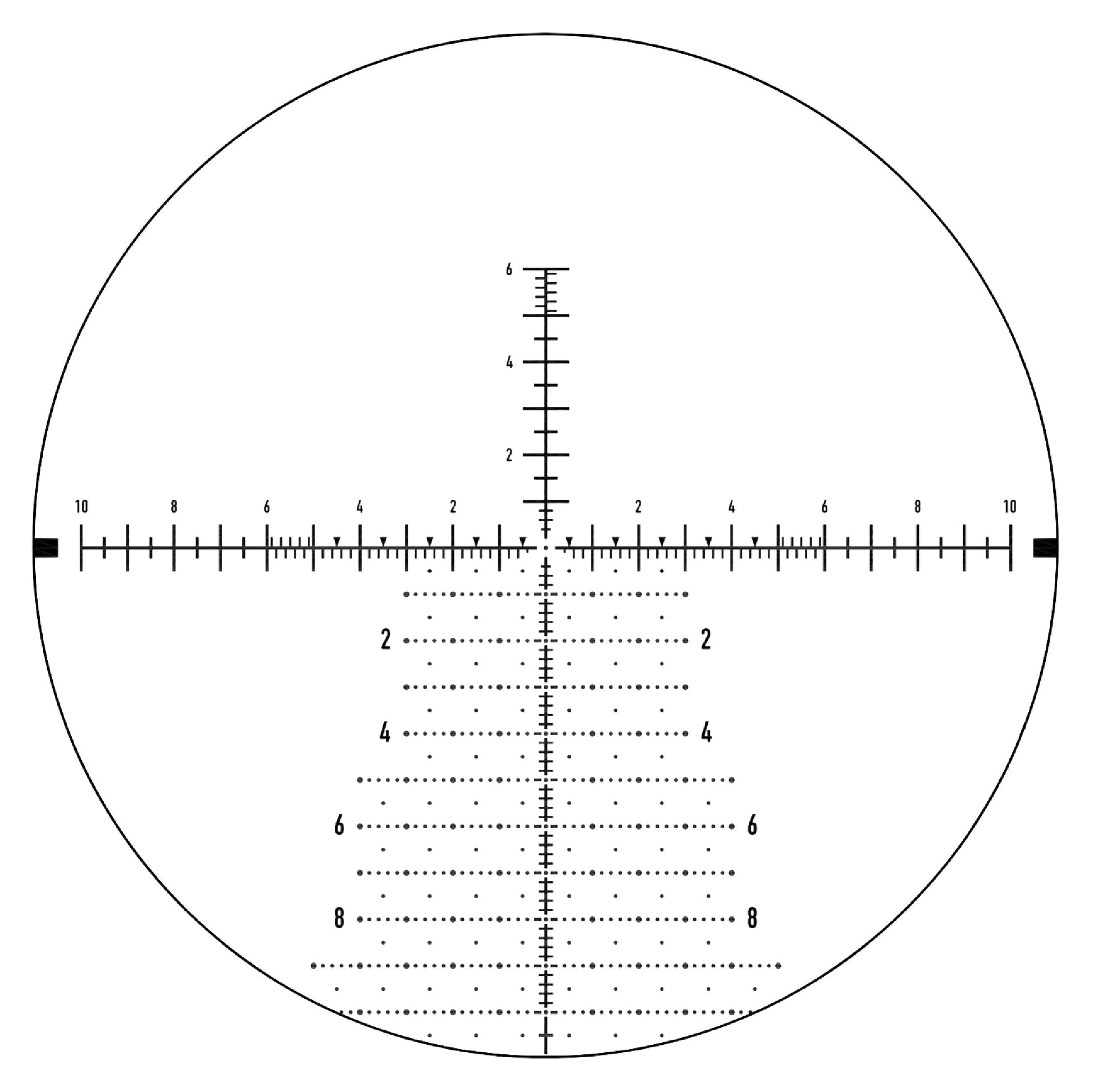

- FIRST FOCAL PLANE RETICLE for accurate holdovers at any magnification.
- LONG-RANGE OPTICS with 4-16x magnification, perfect for diverse shooting scenarios.
- EXCEPTIONAL CLARITY ensures bright images even in low light conditions.
- DURABLE CONSTRUCTION withstands the rigors of tactical and recreational use.
- MRAD ADJUSTMENTS allow for precise elevation and windage tweaks.
- WIDE FIELD OF VIEW provides greater situational awareness while shooting.
- SMOOTH FOCUSING SYSTEM makes it easy to adjust for distance.
- LIGHTWEIGHT DESIGN enhances portability without compromising performance.
Technical Specifications Table
| Specification | Details |
|---|---|
| Magnification Range | 4x - 16x |
| Lens Diameter | 44mm |
| Weight | 23.8oz (675g) |
| Length | 14.2" (360mm) |
| Eye Relief | 3.7" |
| Field of View at 100 yds | 26.2 - 6.55 ft |
| Turret Adjustment Click Value | 1/10 MRAD |
| Scope Finish | Black |
What’s in the Box?
- Element Optics Helix 4-16x44 FFP APR-2D MRAD Scope
- Lens covers
- Padded carrying case
- Neck strap
Customer Reviews
"The clarity of the Helix scope is unbelievable. I can see clearly even in low-light conditions!"
"The adjustments are spot-on. It made my long-range shooting much more accurate!"
"Lightweight and durable, this scope is perfect for tactical use. Highly recommend!"
FAQ
Many customers wonder about the maximum effective range of the Element Optics Helix 4-16x44 FFP APR-2D MRAD Scope. This scope excels at distances up to 500 yards, making it suitable for both tactical and recreational shooting scenarios. Regular maintenance includes cleaning the lenses and checking the turret adjustments to ensure consistent performance.
Another common question pertains to how this scope compares to similar models. The Helix’s first focal plane design offers superior flexibility for range estimation, especially when compared to second focal plane scopes. If you prefer high accuracy in changing magnifications, the Helix is a better choice for your long-range optics needs.
Similar Models
Looking for more high-performance optics? Explore our entire range of Element Optics products, including the Element Optics Titan series for enhanced long-range performance. Discover the perfect fit for all your shooting adventures!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
