Description
Product Description

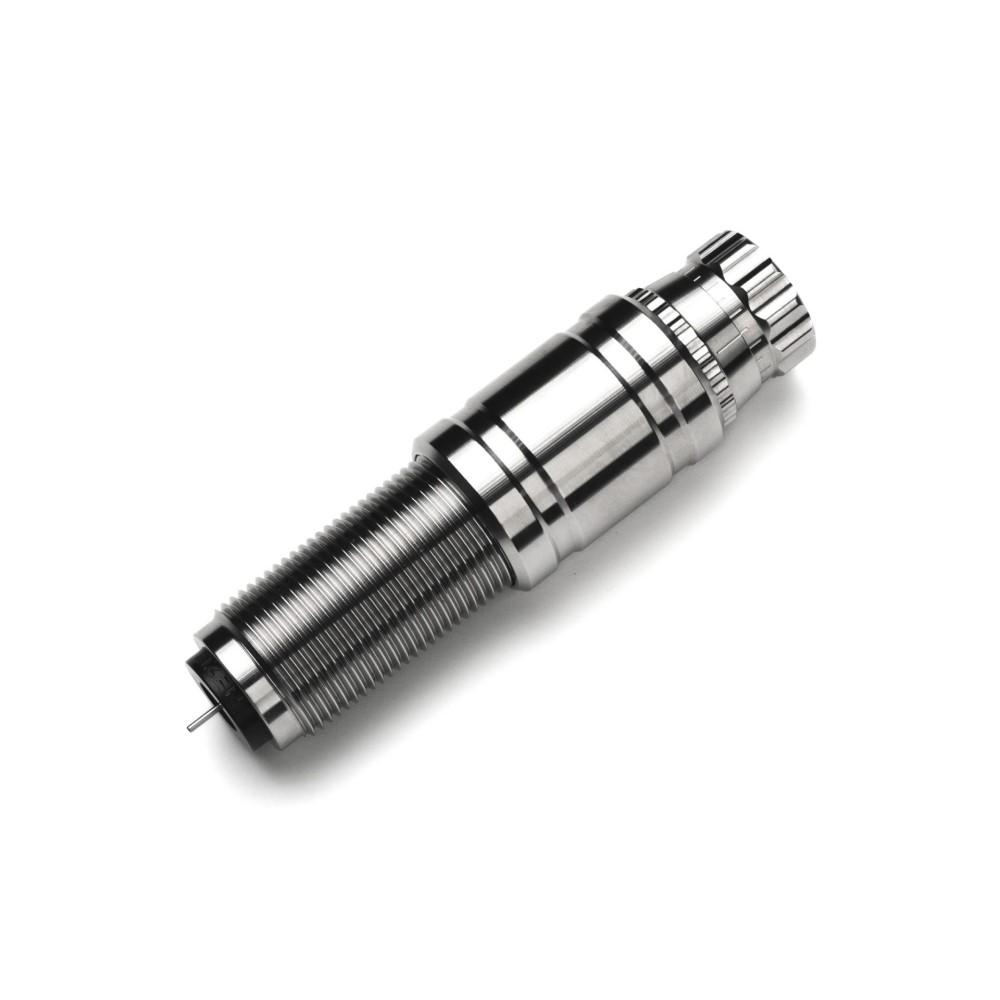

Area 419 Zero M-Series Sizing Dies for 7mm PRC are engineered for precision and ease of use. This 1-1/4″ die requires a Hybrid or 1-1/4″ Turret on your ZERO press, ensuring compatibility with advanced reloading setups. Designed for serious reloaders, these dies require a larger diameter shellholder rim; using standard shellholders will not provide the necessary fit. This attention to detail reflects Area 419's commitment to creating tools that enhance the reloading process.
The M-Series Sizing Die excels in producing match-grade ammunition, supporting both experienced reloaders and newcomers alike. Key features include a micrometer adjustable headspace and precision ground expander mandrels. Each die is shipped with a .002 neck tension mandrel, enhancing customization options. With features like spring ejection for spent primers and replaceable steel decap pins, this die ensures a smooth and efficient reloading experience, minimizing frustration and maximizing performance.
Features:
- MICROMETER ADJUSTABLE for precise headspace control, allowing for tailored ammunition fits.
- PRECISION GROUND EXPANDER MANDRELS included for consistent neck tension, enhancing accuracy.
- FULL-LENGTH NECK TO EXTRACTOR SIZING ensures optimal brass performance with every load.
- SPRING EJECTION for spent primers simplifies the reloading process and reduces downtime.
- REPLACEABLE STEEL DECAP PINS allow for long-term use without sacrificing performance.
- REAMER CUT to exacting dimensions to prevent sticky bolt issues after multiple firings.
- HYDRAULIC SHOULDER PRESSURE RELIEF mechanism promotes consistent sizing without overworking the brass.
- 100% MADE IN AMERICA guarantees high-quality craftsmanship and reliability for serious reloaders.
Technical Specifications Table
| Feature | Specification |
|---|---|
| Die Diameter | 1-1/4″ |
| Compatibility | Requires ZERO M-Series Shell Holder |
| Included Mandrel | .002 Neck Tension Mandrel |
| Construction | 100% American-made materials |
| Dimensions | Standard sizing die dimensions |
| Weight | Standard die weight |
What's in the Box?
- Area 419 M-Series Sizing Die
- Area 419 ZERO Die Ring
- Spare decapping pin
- Installation/removal tools
Customer Reviews
"The precision and ease of use have transformed my reloading process. Highly recommend!"
"A solid die that delivers consistent results. Worth the investment for serious reloaders."
"First time reloader here, and this die has made the learning curve much smoother!"
FAQ
How does the Zero M-Series Sizing Die compare to standard dies? The Zero M-Series is specifically designed for the 7mm PRC cartridge, providing enhanced precision and compatibility with the ZERO press system. Unlike standard dies, it features a micrometer adjustable headspace and more robust construction, catering to both amateur and professional reloaders.
What maintenance does this die require? Regular cleaning with a soft cloth and occasional lubrication of moving parts will keep the die in optimal condition. Ensure that you replace the decapping pin as needed to maintain performance during the reloading process.
Can I use this die with other presses? This die is not compatible with 7/8″ turrets or presses. For best results, it should be used exclusively with the ZERO M-Series press and the corresponding shell holder.
Similar Models
Looking for additional reloading solutions? Explore our complete Area 419 collection, including the Zero M-Series Bullet Seating Dies for precise bullet seating and the Zero M-Series Expanding Dies for enhanced neck tension management. Each product is tailored to meet the demands of dedicated reloaders. Check out our full range for all your reloading needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
