Description
Product Description

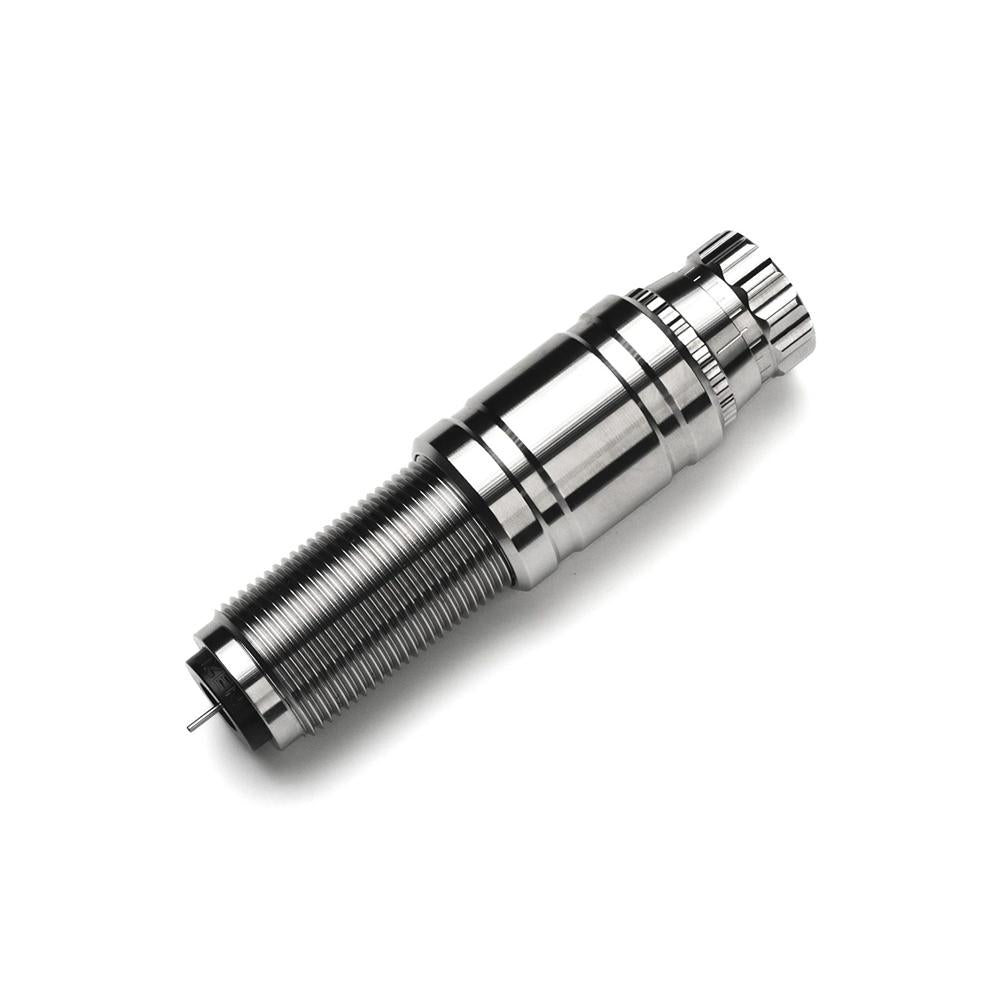

The Area 419 Zero M-Series Sizing Die for 6 Dasher is engineered to simplify the reloading process while ensuring precision. This die features a micrometer adjustable headspace/shoulder bump, allowing for fine-tuning to achieve optimal sizing for your brass. Designed specifically for the ZERO Reloading Press, it integrates seamlessly with other components, providing a reliable solution for both experienced and novice reloaders.
Constructed with user-friendly features, the die includes precision ground expander mandrels and spring ejection for spent primers, ensuring a hassle-free experience. The reamer is cut to exacting dimensions, preventing issues like sticky bolts after multiple firings. Each die is manufactured in the USA, reflecting a commitment to quality and performance.
Features:
- MICROMETER ADJUSTABLE for precise headspace control, ensuring optimal sizing every time.
- PRECISION GROUND EXPANDER MANDRELS provide consistent neck tension, enhancing ammunition accuracy.
- FULL-LENGTH NECK TO EXTRACTOR SIZING simplifies the resizing process for versatile applications.
- SPRING EJECTION for spent primers streamlines reloading and reduces downtime.
- REPLACEABLE STEEL DECAP PINS extend the die's lifespan and maintain performance.
- REAMER CUT TO EXACTING DIMENSIONS eliminates sticky bolts after multiple firings.
- HYDRAULIC SHOULDER PRESSURE RELIEF protects your brass during the resizing process.
- 100% MADE IN AMERICA assures high-quality manufacturing standards and local support.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Die Type | 1-1/4" Sizing Die |
| Compatibility | ZERO M-Series Shellholder Required |
| Weight | Varies by configuration |
| Material | High-Quality Steel |
| Manufacturing | 100% Made in USA |
What's in the Box?
- Area 419 Zero M-Series Sizing Die
- Area 419 ZERO Die Ring
- Spare decapping pin
- Installation/removal tools
Customer Reviews
"This die made the resizing process straightforward. I've noticed improved accuracy in my loads!"
"Easy to use and fits perfectly with my ZERO press. Highly recommend for beginners!"
FAQ
What type of press is necessary to use the Area 419 Zero M-Series Sizing Die? This die requires a 1-1/4" turret press, such as the ZERO Reloading Press. It is not compatible with 7/8" turrets, ensuring optimal performance with the correct equipment.
How does the micrometer adjustable headspace benefit my reloading? The micrometer feature allows for precise adjustments to the shoulder bump, which is crucial for achieving the right fit for your brass. This ensures consistent chambering and enhances the accuracy of your ammunition.
Can I use standard shellholders with this die? No, this die requires a larger diameter shellholder specifically designed for the ZERO M-Series. Using standard shellholders may lead to improper sizing and performance issues.
What maintenance is required for the sizing die? Regular cleaning and inspection of the die and its components, particularly the decapping pin and expander mandrels, will ensure long-term functionality. Replacement parts are readily available for any worn items.
How does this die compare to other brands? The Area 419 Zero M-Series Sizing Die is designed with user-friendliness and precision in mind, offering features that address common issues faced by reloaders. Many users find it simplifies the process while delivering match-grade results.
Similar Models
Looking for more reloading solutions? Explore our complete range of Area 419 products, including the ZERO M-Series Seating Die for consistent bullet seating and the ZERO M-Series Taper Crimp Die for professional-grade finishes. Discover the full collection to elevate your reloading experience.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
