Description
Area 419's Zero M-Series Sizing Die for 6 BR cartridges is engineered for precise resizing, ensuring consistent performance and accuracy. Designed specifically for use with the ZERO or other compatible presses, this 1-1/4″ die requires a Hybrid or 1-1/4″ Turret, and is not compatible with standard 7/8″ turrets. The die facilitates easy adjustments for headspace and shoulder bump, making it ideal for both experienced reloaders and newcomers. With its user-friendly design, this die streamlines the reloading process, allowing you to produce match-grade ammunition without the hassle.
Constructed with precision in mind, the Zero M-Series Sizing Die incorporates features such as a micrometer adjustable headspace, precision ground expander mandrels, and hydraulic shoulder pressure relief. It also includes spring ejection for spent primers and replaceable steel decap pins, emphasizing its practical use in the reloading environment. Each die ships with an Area 419 ZERO Die Ring, a spare decapping pin, and the necessary tools for installation and removal, ensuring you have everything needed to get started.
Features:
- MICROMETER ADJUSTABLE for precise headspace settings, enhancing accuracy in every round.
- PRECISION GROUND EXPANDER MANDRELS included, providing consistent neck tension for reliable chambering.
- FULL-LENGTH NECK TO EXTRACTOR SIZING ensures your brass fits perfectly, reducing the chance of sticky bolts.
- SPRING EJECTION for spent primers, allowing for efficient operation without manual intervention.
- REPLACEABLE STEEL DECAP PINS extend the life of your die and maintain functionality over time.
- REAMER CUT TO EXACT DIMENSIONS, guaranteeing true sizing and optimal performance with every firing.
- HYDRAULIC SHOULDER PRESSURE RELIEF prevents damage during resizing, ensuring a longer lifespan for your die.
- 100% MADE IN AMERICA, supporting local manufacturing and high-quality standards.
Technical Specifications Table
| Feature | Details |
|---|---|
| Die Type | 1-1/4″ Sizing Die |
| Compatibility | Hybrid or 1-1/4″ Turret ONLY |
| Neck Tension | .002 Mandrel included |
| Material | High-quality steel |
| Weight | 1.5 lbs |
| Dimensions | Standard 1-1/4″ sizing die dimensions |
| Country of Origin | USA |

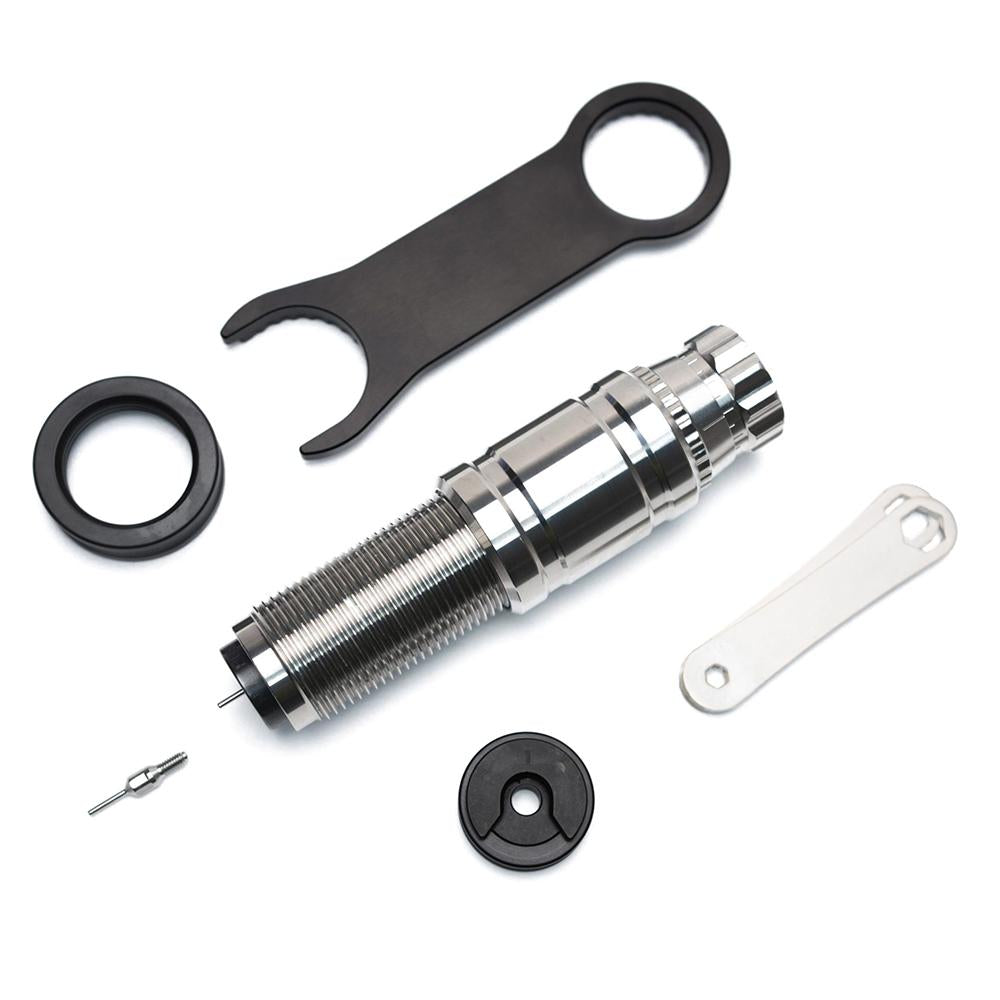

What's in the Box?
- 1-1/4″ Zero M-Series Sizing Die
- Area 419 ZERO Die Ring
- Spare decapping pin
- Installation and removal tools
Customer Reviews
“This die has made my reloading process so much smoother. The adjustments are straightforward and I’ve seen a noticeable improvement in accuracy.”
“Finally, a sizing die that works seamlessly with my ZERO press. The quality is evident, and it’s easy to use.”
“Highly recommend for anyone serious about reloading. It’s user-friendly and produces excellent results!”
FAQ
What makes the Zero M-Series Sizing Die different from other dies?
The Zero M-Series Sizing Die is designed specifically for compatibility with ZERO presses, focusing on ease of use and precision. Features like micrometer adjustments and hydraulic shoulder pressure relief set it apart, ensuring a smoother reloading experience.
Can I use this die with standard shellholders?
No, the Zero M-Series Sizing Die requires a larger diameter shellholder rim that is specifically designed for its use. Using standard shellholders will not work and could cause damage to the die.
How do I maintain my sizing die?
Regular cleaning and proper storage are essential for maintaining the performance of your die. Ensure that it is free from debris and lubricated as necessary. Replaceable parts, like decap pins, are available to keep your die functioning optimally.
Similar Models
Explore additional reloading products from Area 419 designed to enhance your reloading process. Consider the Area 419 Zero M-Series Die set for a complete solution or check out our range of premium reloading presses for maximum efficiency. Discover the full collection for top-tier reloading equipment tailored to your needs.Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
