Description
The Area 419 Zero M-Series Sizing Die for 300 PRC is engineered for precision reloading. This 1-1/4″ die requires a Hybrid or 1-1/4″ Turret on your ZERO or other compatible press. It is not suitable for use with a 7/8″ Turret or press. Designed with input from experienced reloaders, this die simplifies the brass sizing process while maintaining accuracy.
With features that support both novice and expert reloaders, the ZERO M-Series Sizing Die offers a user-friendly experience. This die is part of a cohesive system that includes compatible shellholders and presses, ensuring seamless operation. Its construction emphasizes durability and reliability, making it a trusted choice for achieving match-grade ammunition.
Features:
- MICROMETER ADJUSTABLE HEADSPACE for precise shoulder bump adjustments.
- PRECISION GROUND EXPANDER MANDRELS improve neck tension for consistent bullet seating.
- FULL-LENGTH NECK TO EXTRACTOR SIZING ensures reliable feeding and extraction.
- SPRING EJECTION for spent primers simplifies the reloading process.
- REPLACEABLE STEEL DECAP PINS enhance longevity and ease of maintenance.
- REAMER CUT TO EXACTING DIMENSIONS eliminates sticky bolt issues after firing.
- HYDRAULIC SHOULDER PRESSURE RELIEF reduces sizing difficulties.
- 100% MADE IN AMERICA guarantees superior quality and craftsmanship.
Technical Specifications Table
| Specification | Details |
|---|---|
| Die Type | 1-1/4″ Sizing Die |
| Caliber | 300 PRC |
| Compatibility | Requires Hybrid or 1-1/4″ Turret |
| Material | Steel |
| Weight | Varies (approx. 1 lb) |
| Made in | USA |

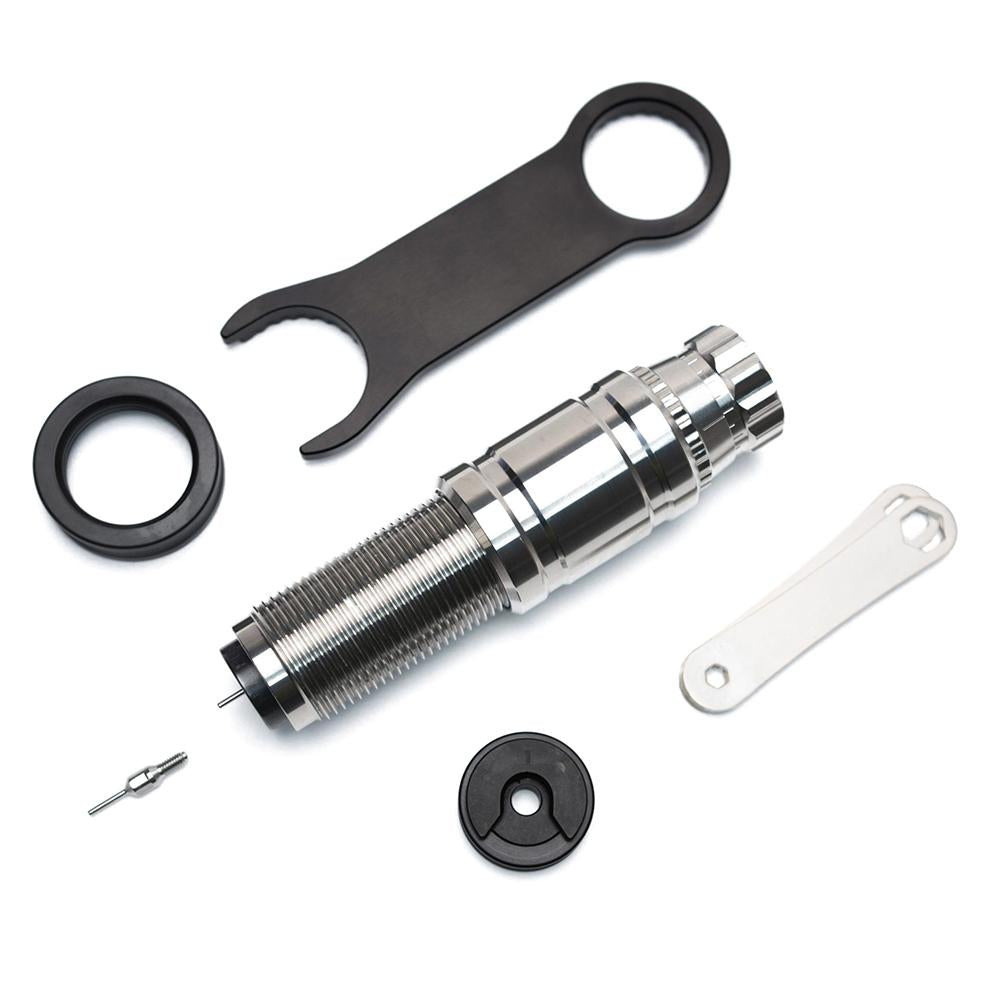

What's in the Box?
- Area 419 Zero M-Series Sizing Die
- Area 419 Die Ring
- Spare decapping pin
- Install/removal tools
Customer Reviews
"This die has transformed my reloading process. Accurate and easy to use!"
"Perfect for match-grade ammunition. Highly recommend for serious reloaders!"
"The attention to detail in design is impressive. It works flawlessly with my setup."
FAQ
What are the main advantages of using the Area 419 Zero M-Series Sizing Die? This die provides adjustable headspace, ensuring the perfect fit for your brass. Its precision ground expander mandrels offer consistent neck tension, crucial for uniform bullet seating. This level of control is especially beneficial for competitive shooters aiming for match-grade ammunition.
How do I maintain the die for optimal performance? Regularly inspect the decapping pins and replace them as needed. Clean the die with a suitable solvent after extensive use to prevent residue buildup. Ensuring compatibility with the correct shellholder is essential for maintaining the die's accuracy and function.
How does this die compare to other sizing dies on the market? Unlike many standard sizing dies, the Area 419 die focuses on user experience and technical precision. Its unique features, such as hydraulic shoulder pressure relief, set it apart from competitors, making it a preferred choice for reloaders seeking both efficiency and quality in their ammunition.
Similar Models
Interested in exploring more options? Check out our complete Area 419 lineup, including the Zero M-Series seating dies for enhanced seating precision and the Zero M-Series crimping dies for reliable bullet retention. Each product is engineered to work seamlessly with your reloading setup, ensuring top-tier performance.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
