Description

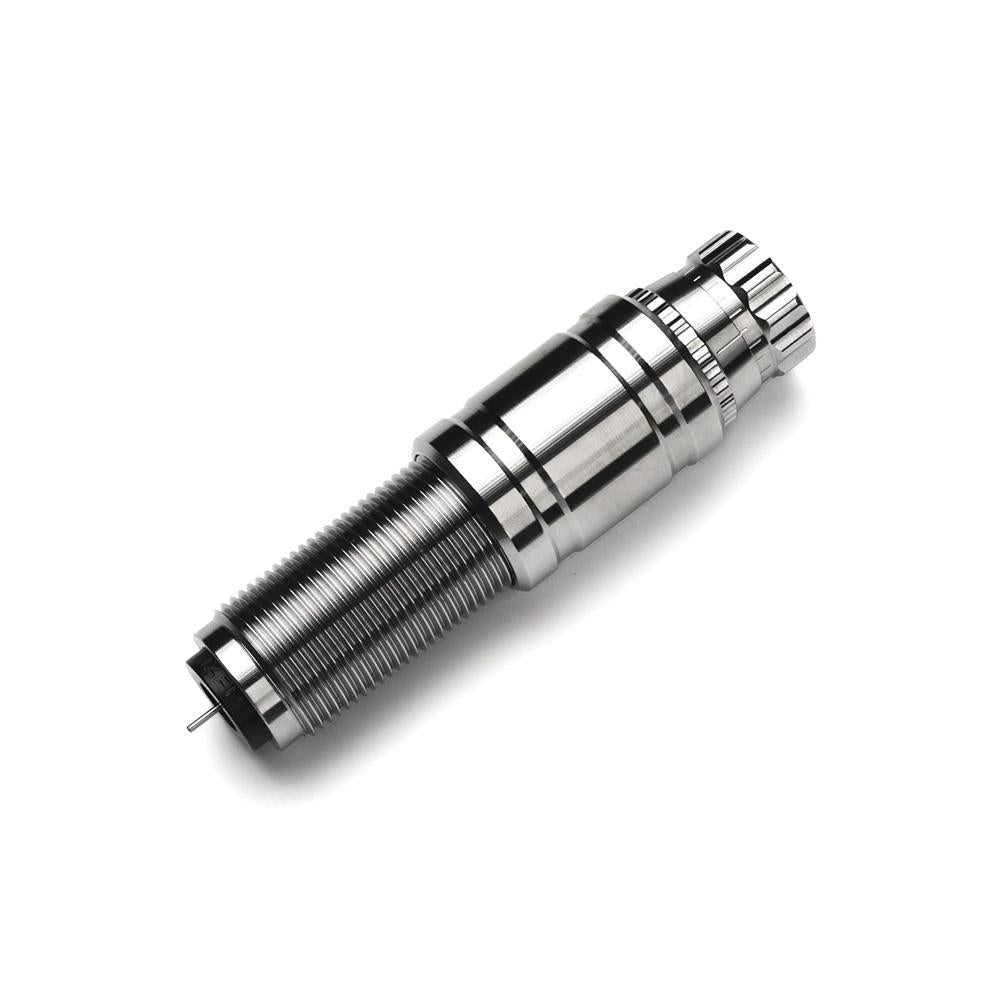

The Area 419 Zero M-Series Sizing Die for .223 Rem is engineered for precision and reliability in reloading. This die features a micrometer adjustable headspace and shoulder bump, allowing for precise adjustments that enhance ammunition accuracy. Designed to work seamlessly with the ZERO Reloading Press, it ensures that every component—press, die, brass, and rifle—functions in harmony. The precision ground expander mandrels included with the die, specifically a .002 neck tension mandrel, help achieve consistent neck sizing for match-grade ammunition.
Constructed with user experience in mind, the ZERO M-Series Sizing Die simplifies the brass sizing process, making it accessible for both seasoned reloaders and beginners. The spring ejection feature efficiently removes spent primers, while the replaceable steel decap pins provide longevity and ease of maintenance. With a reamer cut to exacting dimensions, this die eliminates issues like sticky bolts after multiple firings, ensuring a smooth reloading experience.
Features:
- PRECISE HEADSPACE ADJUSTMENT for accurate ammo sizing.
- USER-FRIENDLY DESIGN tailored for both beginners and experts.
- SPRING EJECTION SYSTEM for hassle-free primer removal.
- REPLACEABLE DECAPPING PINS for extended die life and maintenance.
- CONSISTENT NECK SIZING with included .002 tension mandrel.
- EXACT DIMENSION CUTTING to prevent sticky bolts during firing.
- COMPATIBLE ONLY WITH ZERO M-SERIES SHELLHOLDERS for optimal performance.
- 100% MADE IN AMERICA ensuring high-quality craftsmanship.
Technical Specifications Table
| Specification | Details |
|---|---|
| Die Type | 1-1/4″ Sizing Die |
| Caliber | .223 Remington |
| Shellholder Compatibility | Requires Zero M-Series Shellholder |
| Material | Steel |
| Weight | Varies with configuration |
| Dimensions | Standard 1-1/4″ die dimensions |
What's in the Box?
- Area 419 Zero M-Series Sizing Die
- Zero Die Ring
- Spare decapping pin
- Installation and removal tools
Customer Reviews
"This die has completely changed my reloading process for the better. Highly recommend!"
"Easy to use and delivers consistent results every time. A must-have for serious reloaders."
"I appreciate the attention to detail in this die. It makes loading my .223 Remington a breeze."
FAQ
How does the micrometer adjustment work? The micrometer adjustment allows you to set the headspace and shoulder bump with precision. This feature is crucial for achieving the proper fit for your brass, which directly affects accuracy. You can make fine adjustments easily, ensuring each round is sized to your specifications.
Can I use this die with other presses? No, the Area 419 Zero M-Series Sizing Die is specifically designed for use with a 1-1/4″ turret and requires the Zero M-Series shellholder. Using it with standard 7/8″ presses or shellholders will lead to compatibility issues.
What maintenance is required for this die? Maintenance is minimal. The replaceable decapping pins ensure longevity, and regular cleaning will keep the die functioning smoothly. Ensure that the micrometer and threads are clean and lubricated to maintain precision.
Similar Models
Looking for the perfect reloading solutions? Explore our extensive Area 419 lineup, including the Area 419 Zero M-Series Case Trimmer for precise case length adjustments and the Area 419 Zero M-Series Bullet Seating Die for consistent bullet seating. Discover our full collection for exceptional reloading tools tailored to your needs.
