Description

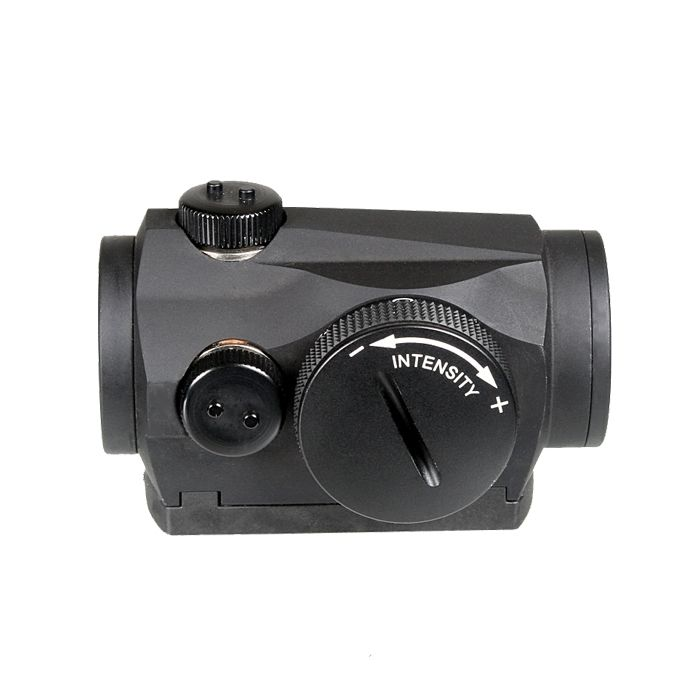

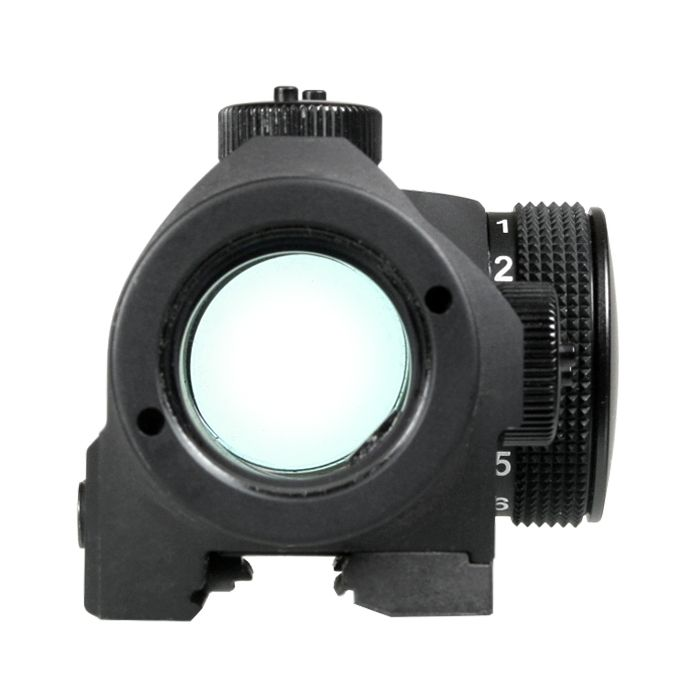

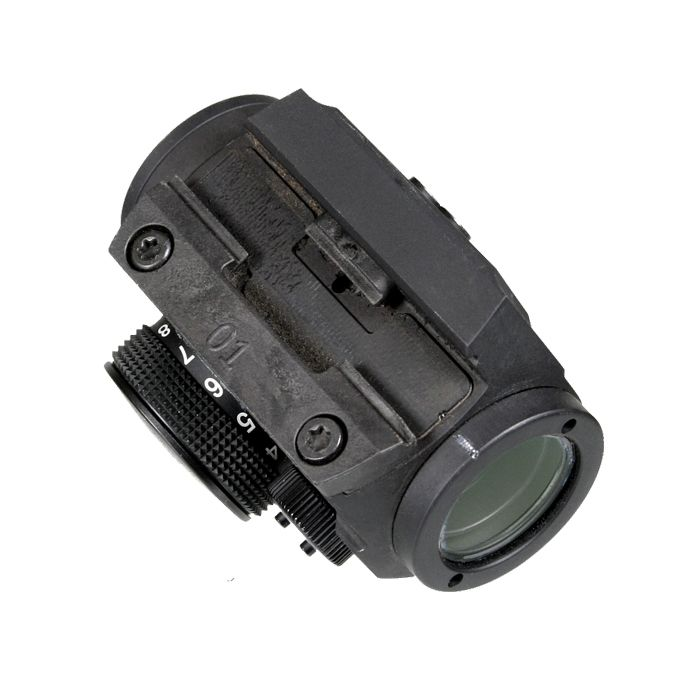

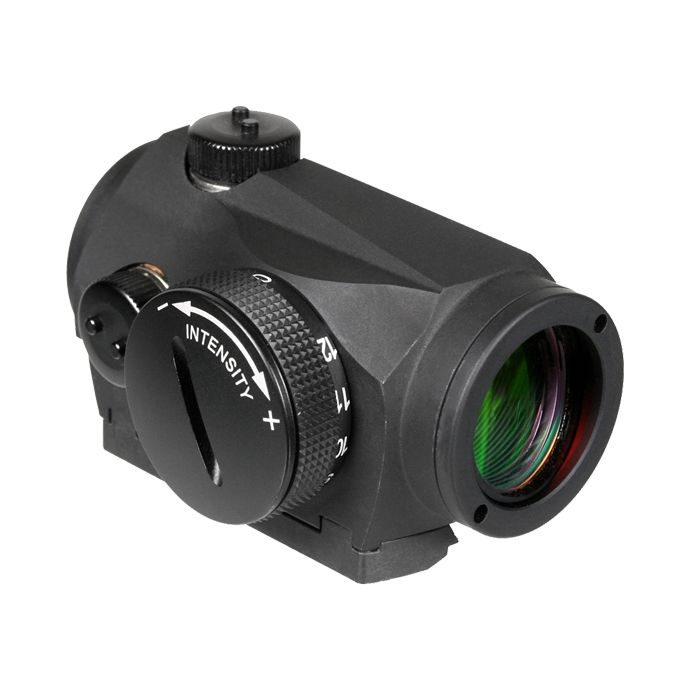

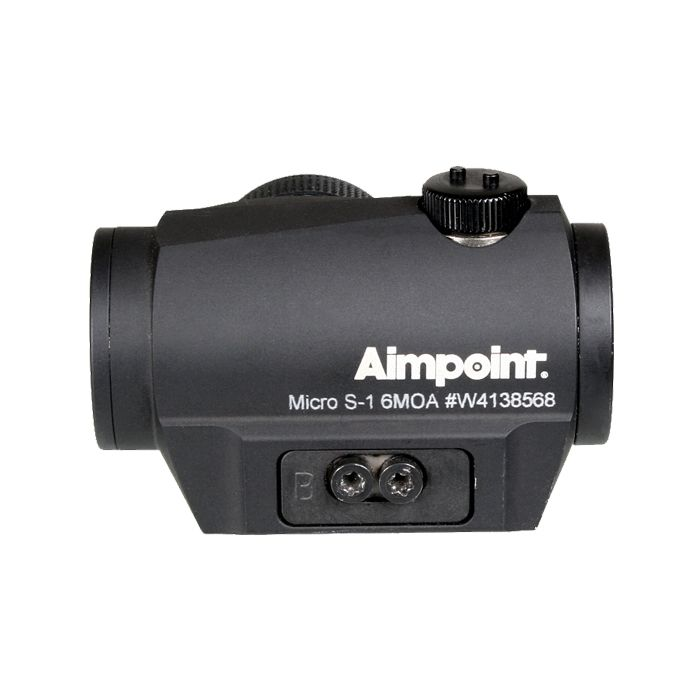

Designed with the avid shotgun user in mind, the Aimpoint Micro S-1 (6 MOA) Reflex Red Dot Sight (200369) is an advanced optic built for bettering precision and speed in the field. Target acquisition with the Micro S-1 is streamlined thanks to a large 6 MOA red dot, which provides the perfect balance between a quick sight picture and fine shot placement. The sight attaches effortlessly to any point along a shotgun's ventilated rib, giving shooters the flexibility to mount for personalized eye relief and shooting stance.
The Aimpoint Micro S-1 is not only versatile and customizable but also rugged. The integrated carbon fiber reinforced mounting system ensures compatibility with various shotgun rib sizes and maintains a low optical axis for direct barrel alignment. Not only can this sight withstand the recoil of heavy shotguns, but it is also ready for the most extreme weather conditions, embodying the legendary Aimpoint reliability.
Moreover, the red dot sight has a generous battery life, with over five years of constant operation from a single CR2032 battery, minimizing the need for replacements and ensuring readiness at critical moments. For shotgun enthusiasts with a keen eye for performance, the Aimpoint Micro S-1 (200369) is a solid investment for any shooting application, from hunting to competitive sport.
Features
- ENHANCED ACCURACY: 6 MOA red dot provides quick target acquisition, boosting your hit percentage.
- LONG BATTERY LIFE: Over 5 years of operation on a single CR2032 battery for constant readiness.
- OPTIMIZED MOUNTING: Direct rib attachment with interchangeable base plates for various shotguns.
- ROBUST DESIGN: Carbon fiber reinforced polymer mount withstands repetitive shooting shock.
- CUSTOMIZABLE PLACEMENT: Ultra-low optical axis with the flexibility for personalized sight alignment.
- ADJUSTABLE SETTINGS: 12 brightness levels with intensified setting for harsh sunlight conditions.
- DURABLE CONSTRUCTION: Anodized high strength aluminum housing for rugged field use.
- EASY MAINTENANCE: Water-resistant and operationally parallax-free for reliable optic performance.
Specifications
| Specification | Detail |
|---|---|
| Magnification Range | 1x |
| Reticle Details | 6 MOA Red Dot Reflex |
| Objective Lens Diameter | 18mm |
| Dimensions | 2.48 x 1.69 x 1.61" (L x W x H) |
| Weight | 3.53 oz. |
| Battery | (1) 3V Lithium, type CR2032 |
| Battery Type | CR2032 |
| Night Vision Compatible | No |
| Brightness Settings | 12 |
| Product Type | Reflex Sight/Red Dot |
| Item Condition | New |
| UPC | 7350004385454 |
| MPN | 200369 |
What's In The Box?
- Aimpoint Micro S-1 (6 MOA) Reflex Red Dot Sight
- Interchangeable base plates for rib mount
- Rubber Bikini lens cover
- Base Plate Selection Guide
- CR2032 battery
- Micro tool
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
