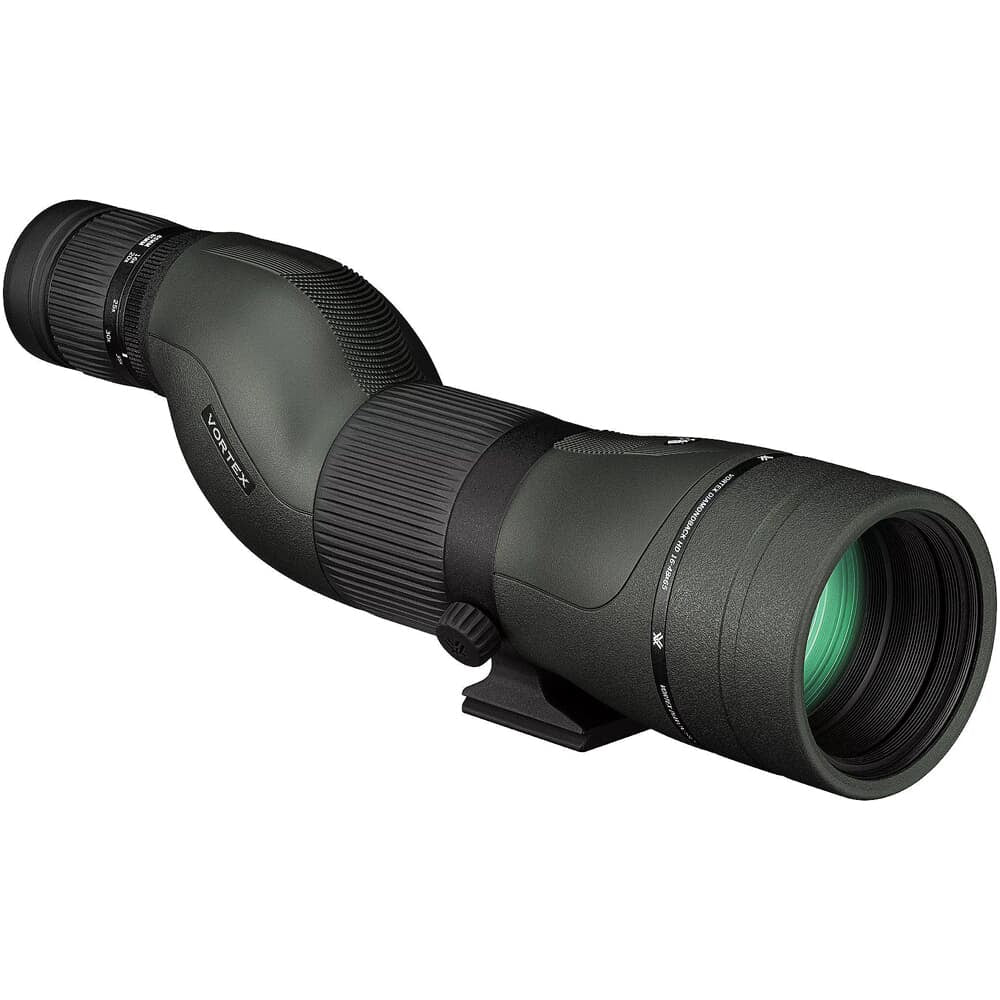

Vortex Diamondback HD 16-48x65 Straight Spotting Scope DS-65S offers superior magnification and clarity for all your hunting needs. With a range of 16-48x magnification, this spotting scope provides a wide field of view, letting you spot game from a distance with exceptional detail. Its redesigned structure excels in low light conditions, ensuring visibility even during early mornings or late evenings. The helical focus wheel allows for precise adjustments, making it easier to hone in on your target with accuracy.
Durability is key with the Diamondback HD, featuring a rubberized outer shell that safeguards against shock damage. Vortex's proprietary Armortek lens coating protects the optics from dirt, oil, and other debris, maintaining clarity and performance in various environments. Whether you are on your first big hunt or a seasoned adventure, this spotting scope empowers you to focus on the excitement of the outdoors.
Features
- EXCEPTIONAL MAGNIFICATION ranges from 16-48x, providing versatility for any distance, allowing hunters to see details clearly from afar.
- LOW LIGHT PERFORMANCE is enhanced, with fully multi-coated lenses maximizing light transmission for clear viewing during dawn and dusk.
- RUBBERIZED HOUSING ensures durability while providing a secure grip, safeguarding internal components from environmental impacts during rugged use.
- ARMORTEK COATING protects lenses from scratches and dirt, ensuring they remain clear and functional in challenging conditions.
- FOCUS WHEEL DESIGN allows for quick adjustments, enabling seamless tracking of moving subjects without losing sight of your target.
- WATERPROOF & FOGPROOF construction guarantees reliable performance in any weather, making it ideal for outdoor enthusiasts.
- ARGON GAS PURGED to prevent internal fogging, ensuring clarity in variable temperatures and humidity.
- ARCA-SWISS COMPATIBILITY for easy mounting options, providing flexibility when connecting to various tripods and equipment.
Technical Specifications Table
| Specification | Details |
|---|---|
| SKU | DS-65S-Vortex |
| Magnification Range | 16-48x |
| Lens Diameter | 65 mm |
| Weight | 50.4 oz |
| Field of View | 138 ft - 72 ft @ 1000 yd |
| Eye Relief | 20.3 mm - 18.3 mm |
| Close Focus Range | 16.4 ft |
| Body Type | Straight |
| Warranty | Vortex VIP Warranty |
What’s in the Box?
- Neoprene Cover
- Tethered Objective Lens Cap
- Tethered Ocular Lens Cap
- Lens Cloth
- Product Manual
Customer Reviews
“The clarity and ease of use in low light are impressive. This spotting scope has made my hunting trips much more enjoyable.”
“Durable and reliable, the Diamondback HD is a favorite among my hunting gear. Worth every penny!”
FAQ
Many customers inquire about how the Vortex Diamondback HD compares to other spotting scopes. This model stands out due to its robust construction and superior low-light performance, making it ideal for serious hunters. Additionally, it is designed to withstand tough outdoor conditions, ensuring years of dependable use.
When it comes to maintenance, keeping the lenses clean and protected from harsh elements is crucial. The Armortek coating aids significantly in this regard, making cleaning simple and effective. Regular checks of the seals and the integrity of the body also help maintain its performance.
Similar Models
Looking for the perfect binoculars? Explore the extensive Vortex lineup, including models like Vortex Viper HD for advanced optics and Vortex Razor HD for premium performance. Discover our full collection for exceptional optics tailored to your adventures.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
