Description

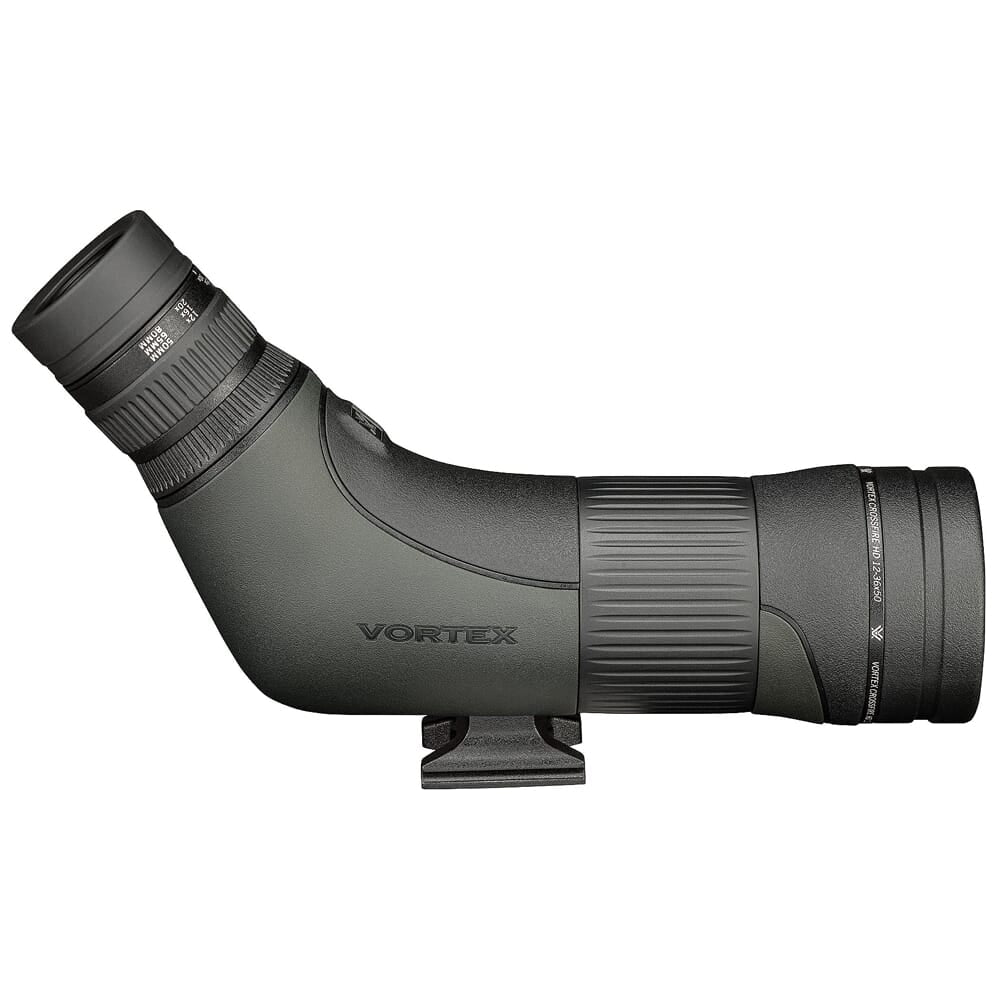

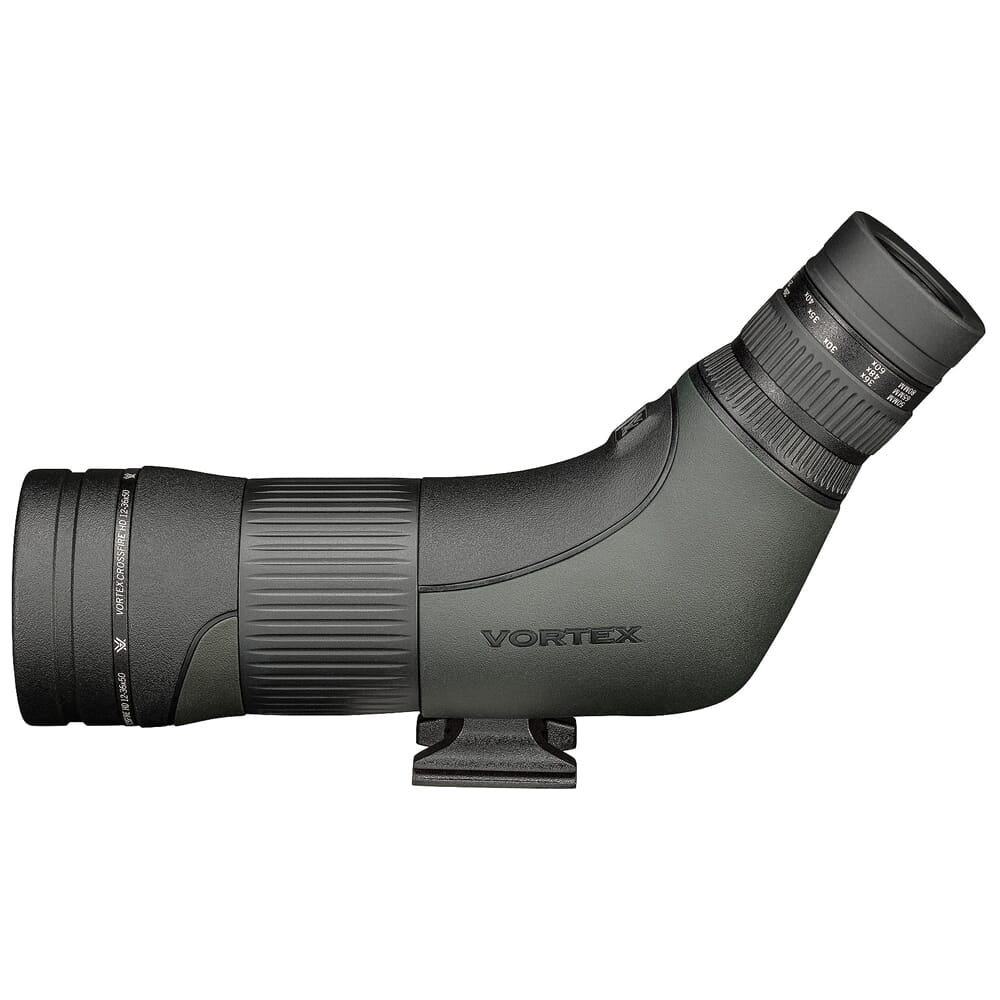

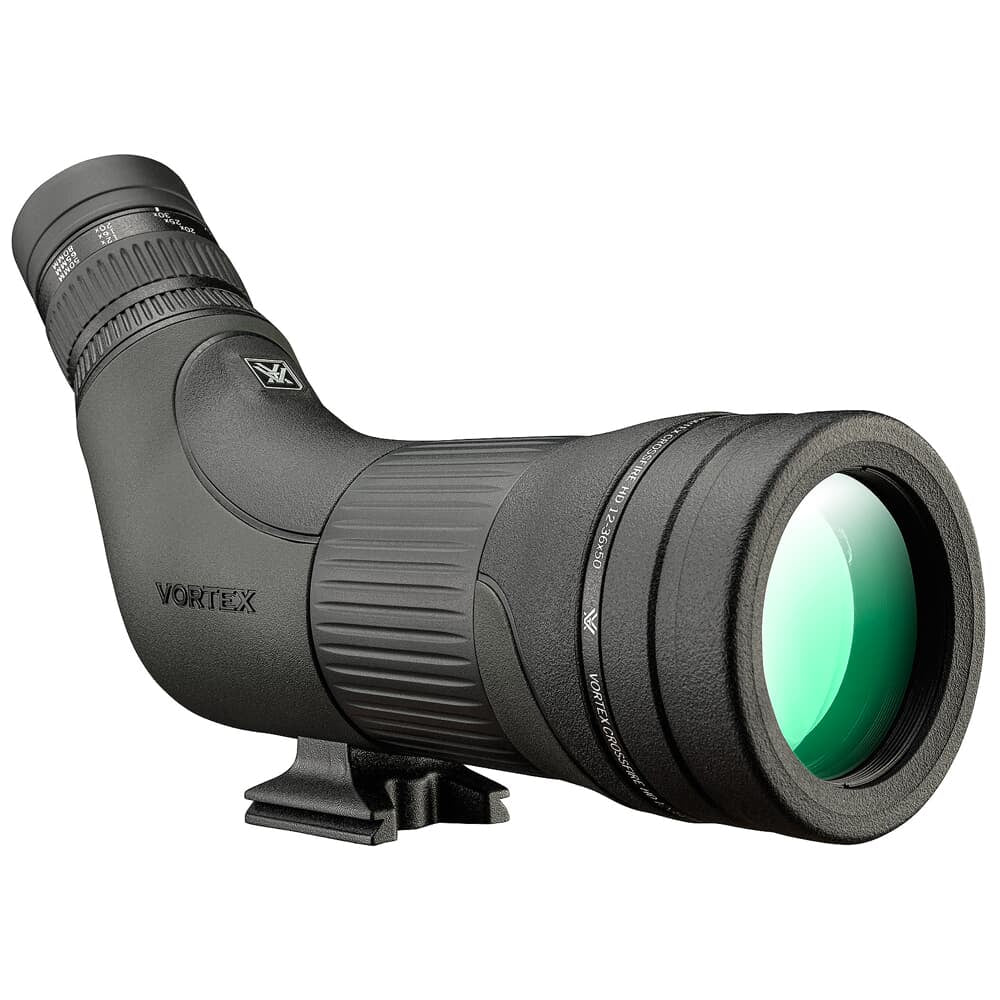

The Vortex Crossfire HD 12-36x50mm Angled Spotting Scope CF-50A is built for those who demand precision in the field or at the range. Featuring Vortex’s advanced HD Optical System, this spotting scope delivers exceptional resolution, vivid colors, and edge-to-edge clarity. With fully multicoated lenses, light transmission is optimized even in low-light conditions, ensuring visibility when it matters most. A wide field of view enhances target acquisition, while an easily adjustable helical focus allows for fine-tuning at any magnification level.
Compatibility is a key feature; the Crossfire HD Spotting Scope is ARCA-Swiss mount compatible, providing seamless attachment to tripod heads without the need for extra plates. Designed in both angled and straight configurations, it offers versatility across different viewing scenarios. The package includes a neoprene cover and lens covers, ensuring protection during transport and storage.
Features
- HD OPTICAL SYSTEM for superior clarity and resolution, enhancing your viewing experience in any environment.
- FULLY MULTICOATED LENSES ensure maximum light transmission and reduced glare, perfect for low-light conditions.
- WIDE FIELD OF VIEW that improves target acquisition, making it easier to find and track distant subjects.
- HELICAL FOCUS allows for precise adjustments, helping you achieve sharp images quickly and efficiently.
- ARCA-SWISS COMPATIBLE, enabling direct mounting to tripod heads without additional plates for enhanced stability.
- VERSATILE CONFIGURATIONS available in angled and straight designs, catering to various viewing preferences.
- DURABLE DESIGN with a neoprene cover included, providing protection against the elements during outdoor use.
- USER-FRIENDLY with an eyepiece included, ensuring comfortable viewing for extended periods.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | CF-50A-Vortex |
| UPC | 843829139434 |
| Close Focus Range | 13.9 feet |
| Eye Relief | 18mm |
| Field of View | 173 feet @ 1000 yards (low power), 89 feet @ 1000 yards (high power) |
| Magnification Range | 12x - 36x |
| Weight | 30.3 ounces |
| Scope Finish | Green |
| Warranty | Vortex VIP Warranty |
| Item Condition | New |
| Product Type | Spotting Scopes |
| Body Type | Angled |
| Eyepiece Included | Yes |
What’s in the Box?
- Neoprene cover
- Lens covers
- Included eyepiece
Customer Reviews
“The clarity is outstanding, even at high magnification. Perfect for spotting game in the field.”
“I love the ARCA-Swiss compatibility; it makes setting up my tripod so much easier.”
“This scope is rugged and performs well in low light. Highly recommend!”
FAQ
How does the Crossfire HD compare to other spotting scopes? The Crossfire HD stands out with its HD Optical System, which enhances clarity and brightness compared to standard scopes. Its versatility and user-friendly design make it a preferred choice for both novice and experienced users.
Is maintenance required for the Vortex Crossfire HD? Regular cleaning of the lenses with a microfiber cloth is recommended to maintain optimal performance. The durable construction is designed to withstand outdoor conditions, but storing it in a protective case when not in use will prolong its life.
Can I use it for birdwatching? Yes, the wide field of view and high magnification range make the Crossfire HD Spotting Scope ideal for birdwatching as well as other outdoor activities. It offers clear, detailed views of distant wildlife without disturbing them.
Similar Models
Explore our range of Vortex optics for your outdoor adventures. Check out models like the Vortex Viper HD 15-45x65 for enhanced portability and the Vortex Razor HD 27-60x85 for superior optical performance. Discover our complete collection to find the perfect optics tailored to your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
