Description

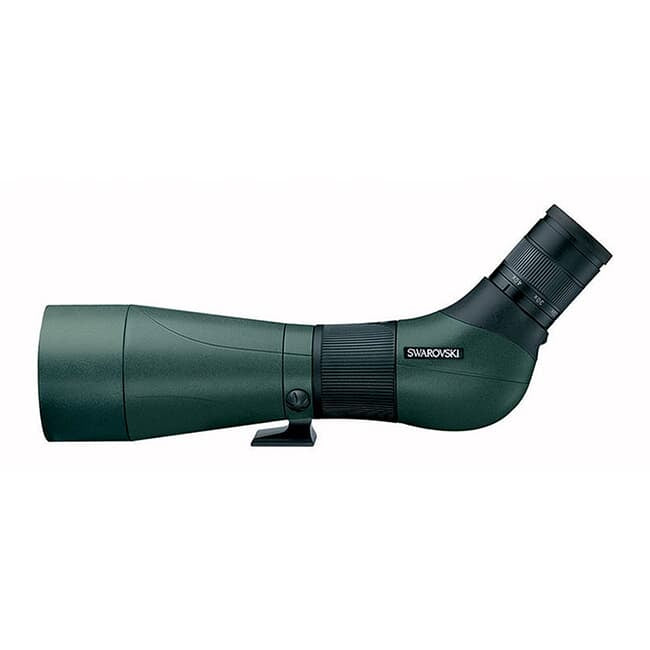

Swarovski ATS 80 HD & 25-50X 86615 spotting scopes offer precision optics wrapped in a lightweight design, making them ideal for discerning outdoor enthusiasts. With an 80mm objective diameter and a 25-50x zoom eyepiece, these scopes provide outstanding clarity and brightness, even in low-light conditions. Their ergonomic design includes a large field of view, ensuring rapid target acquisition whether you are bird-watching or hunting.
Features such as the SWAROCLEAN lens coating facilitate easy maintenance, keeping your optics clear from dirt and smudges. The angled viewing option accommodates various viewing angles, while the nitrogen-purged and O-ring sealed construction guarantees waterproof and fog-proof performance. This rugged yet refined scope stands up to the elements, making it a reliable companion in any environment.
Features
- BRIGHT OPTICS with 80mm objective diameter and fluoride-containing HD glass deliver vivid colors and sharp details, enhancing your viewing experience at any distance.
- ADJUSTABLE MAGNIFICATION from 25x to 50x allows for precise detail observation, making it suitable for both long-range hunting and birdwatching.
- WIDE FIELD OF VIEW measuring 126-81 feet at 1000 yards enables effortless tracking of moving targets, crucial for outdoor activities.
- ERONOMIC FOCUS WHEEL provides quick and intuitive adjustments, allowing for rapid focus changes in dynamic environments.
- DURABLE CONSTRUCTION with a lightweight aluminum body and rubber-armored exterior ensures rugged reliability while maintaining portability.
- FOG AND WATERPROOF performance due to nitrogen-purged interiors and O-ring seals, making the scope ideal for various weather conditions.
- EASY MAINTENANCE with SWAROCLEAN lens coating which repels dirt and moisture, ensuring clear optics in challenging environments.
- COMPATIBLE WITH DIGISCOPING allowing easy attachment of cameras for wildlife photography, enhancing your outdoor photography experience.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification Range | 25-50x |
| Objective Diameter | 80mm |
| Weight | 59.1 oz (1675.5 g) |
| Close Focus Range | 16.4 feet |
| Eye Relief | 17mm |
| Field of View | 126-81 feet at 1000 yards |
| Body Type | Angled |
What’s in the Box?
- 1 x Swarovski ATS 80 HD Spotting Scope
- 1 x 25-50x Eyepiece
- 1 x Lens Cover
- 1 x Padded Case
- 1 x Neck Strap
Customer Reviews
"Outstanding clarity and performance in the field. Perfect for long-range observation!"
"The lightweight design makes it easy to carry, and the optics are truly unmatched."
"Easy to use, and the image quality is exceptional even in low light conditions."
FAQ
What is the maximum distance for effective observation with the ATS 80 HD? The scope performs excellently at long ranges, providing clarity and detail even beyond 1000 yards, making it ideal for both hunting and birdwatching.
How does the SWAROCLEAN coating work? This specialized lens coating helps repel dirt, water, and oils, allowing for easy cleaning and maintenance. It ensures that your spotting scope remains in top condition despite exposure to outdoor elements.
Similar Models
Looking for more high-quality optics? Explore our extensive Swarovski lineup, including models like the Swarovski ATC 30-80 for compact versatility and the Swarovski BTX for enhanced viewing comfort. Discover our full collection for exceptional optics tailored to your adventures.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
