Description

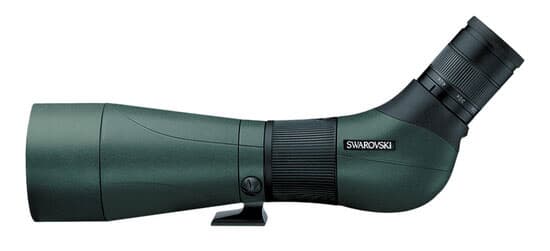

Swarovski ATS 65 HD & 25-50X 86315 spotting scopes provide exceptional optical performance in a compact design. Engineered for serious birdwatchers and hunters alike, these scopes feature a large field of view for swift target acquisition. The angled configuration allows users to customize their viewing angle, ensuring comfort during extended observation sessions. A wider exit pupil enhances brightness, delivering clear images even in low-light conditions.
Crafted with advanced SwaroVision technology, the ATS 65 HD utilizes fluoride-containing HD glass elements that maximize light transmission for vivid color and detail. SWARODUR and SWAROTOP coatings minimize glare while maintaining high contrast. With a rugged aluminum housing that’s both lightweight and robust, these scopes are designed for durability in challenging environments. The nitrogen-purged and O-ring sealed construction guarantees waterproof and fogproof performance, making it the ideal companion for outdoor adventures.
Features
- PREMIUM OPTICS with fluoride-containing HD glass elements result in images that are brighter and more colorful, essential for spotting wildlife at any distance.
- VARIABLE MAGNIFICATION from 25x to 50x provides versatility for detailed observations and easy target acquisition, making it suitable for various viewing situations.
- WIDE FIELD OF VIEW enables rapid target acquisition, crucial for tracking moving subjects or during birdwatching excursions.
- ERGONOMIC DESIGN includes an oversized focus wheel and a removable sighting aid, enhancing user-friendliness and convenience in use.
- RUGGED CONSTRUCTION ensures durability with a lightweight aluminum housing and rubber-armored exterior, designed to withstand harsh outdoor conditions.
- NITROGEN PURGED interior keeps the scope fogproof and waterproof, allowing reliable performance in various weather conditions.
- DIGISCOPING COMPATIBLE with integrated adapters for point-and-shoot, mirrorless, and DSLR cameras, enabling users to capture stunning images.
- USER-FRIENDLY EYEPIECE features a click-stop twist-in eyecup for comfortable viewing and quick attachment/detachment for easy transporting.
Technical Specifications
| Specification | Detail |
|---|---|
| Magnification Range | 25-50x |
| Objective Diameter | 65mm |
| Field of View | 126 - 81 feet |
| Eye Relief | 17mm |
| Weight | 49.6 oz. |
| Close Focus Range | 9.8 feet |
| Operating Temperature | -13 to 131°F |
What’s in the Box?
- 25-50x Zoom Eyepiece
- Objective lens cover
- Carrying case
- User manual
Customer Reviews
"The clarity and brightness of images are simply unmatched. Perfect for both birdwatching and hunting." - Alex T.
"Lightweight and easy to carry, yet it delivers professional-grade performance. Highly recommend!" - Jamie L.
FAQ
How does the ATS 65 HD compare to other spotting scopes?
The ATS 65 HD stands out due to its superior optical performance and compact design. It features advanced coatings and HD glass to ensure excellent color fidelity and brightness, making it ideal for detailed observation in various conditions.
What maintenance do these spotting scopes require?
Regular cleaning of the lenses with a soft cloth is recommended. Avoid using harsh chemicals. The rugged construction means that it requires minimal maintenance, and its waterproof design ensures longevity.
Can I use this scope for digiscoping?
Yes, the ATS 65 HD is compatible with a variety of digiscoping accessories, allowing you to attach cameras for high-quality photographic opportunities while observing wildlife.
Similar Models
If you're interested in high-quality optics, explore the rest of the Swarovski lineup, including the Swarovski ATX 85 for even larger magnification and enhanced detail. Discover our full collection of premium spotting scopes tailored for your outdoor adventures.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
